Qlight SMCL Multiple Color LED Steady/Flashing Signal Light (Ø80/100/125 mm)

Qlight SMCL Multiple Color LED Steady/Flashing Signal Light (Ø80/100/125 mm)

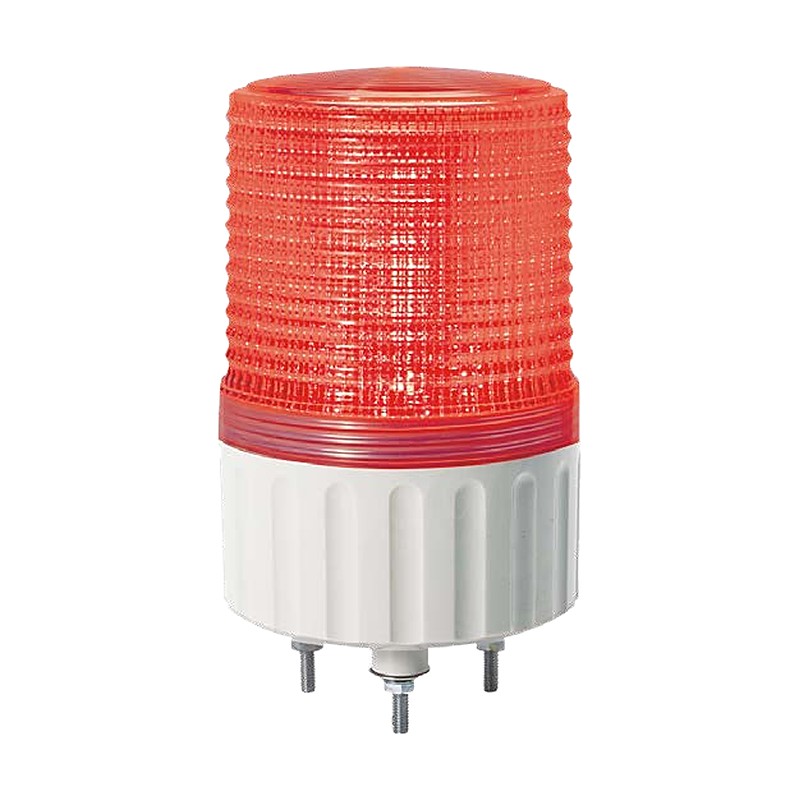

Single-dome LED signal light that shows two or three colors (red, amber, green) from one unit, with steady or flashing mode.

Key features

  • Conveys multiple color signals from a single beacon to save space
  • Multi-tiered reflector LED light distribution for uniform illumination of the lens
  • Selectable steady or flashing mode, flashing rate 60-80/min
  • Optional built-in buzzer, max. 90 dB at 1 m
  • Can be wired with external contacts or NPN transistor

Specifications

Protection rating IP44
Ambient temperature -30 to +50 °C
Colors R-Red, A-Amber, G-Green (2 or 3 colors)
Buzzer option BZ - built-in buzzer, max. 90 dB at 1 m
Flashing rate 60-80/min
Body material ABS
Compliance RoHS
Qlight SMCL Multiple Color LED Steady/Flashing Signal Light (Ø80/100/125 mm) - reference 2
SMCL80 Diameter: Ø80mm | Lens: ABS | Voltage: DC12V-24V (max. 260mA), AC110V (110mA), AC220V (60mA) | Weight: 0.18kg DC, 0.28kg AC
SMCL100 Diameter: Ø100mm | Lens: PC | Voltage: DC12V-24V (max. 470mA), AC110V (140mA), AC220V (70mA) | Weight: 0.23kg DC, 0.32kg AC
SMCL125 Diameter: Ø125mm | Lens: PC | Voltage: DC12V-24V (max. 510mA), AC110V (150mA), AC220V (80mA) | Weight: 0.27kg DC, 0.36kg AC
Signal BeaconsQlight
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SMCL Multiple Color LED Steady/Flashing Signal Light (Ø80/100/125 mm)

Brand Qlight·Signal Beacons

Available part numbers (3)

SMCL80, SMCL100, SMCL125

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight SMCL Multiple Color LED Steady/Flashing Signal Light (Ø80/100/125 mm) - reference 2
0 selected
RFQ List (0)
Product codeSpec
SMCL80Diameter: Ø80mm | Lens: ABS | Voltage: DC12V-24V (max. 260mA), AC110V (110mA), AC220V (60mA) | Weight: 0.18kg DC, 0.28kg AC
SMCL100Diameter: Ø100mm | Lens: PC | Voltage: DC12V-24V (max. 470mA), AC110V (140mA), AC220V (70mA) | Weight: 0.23kg DC, 0.32kg AC
SMCL125Diameter: Ø125mm | Lens: PC | Voltage: DC12V-24V (max. 510mA), AC110V (150mA), AC220V (80mA) | Weight: 0.27kg DC, 0.36kg AC

Need a different model, or a part not listed here? Send us your parts list →
