• Qlight SMD Bulb Revolving Beacon with Electronic Sounder, Ø150 mm, 120 dB, Wall Mount
1 1

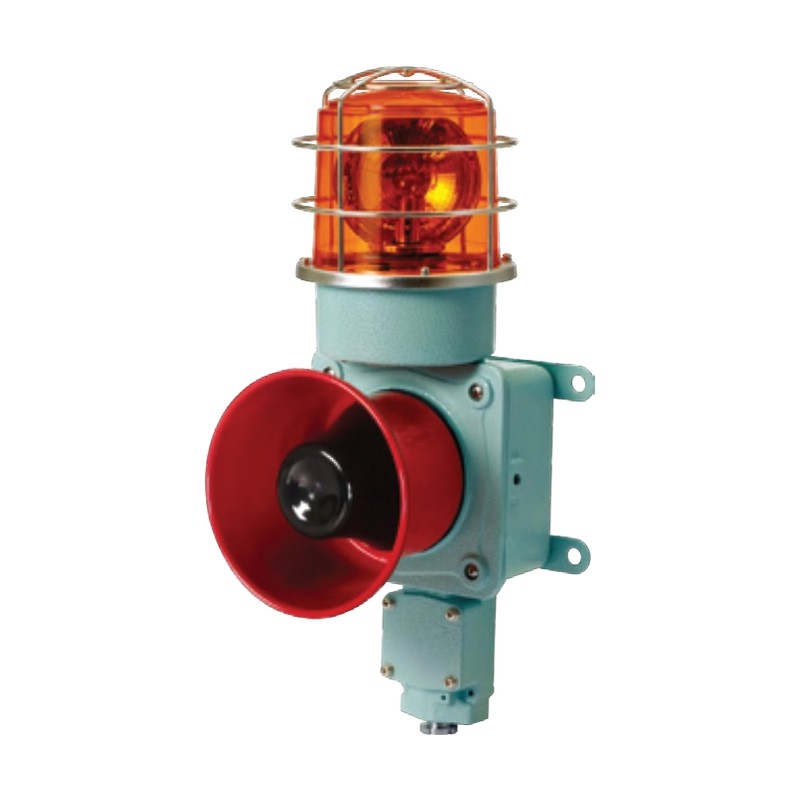

Qlight SMD Bulb Revolving Beacon with Electronic Sounder, Ø150 mm, 120 dB, Wall Mount

Qlight SMD Bulb Revolving Beacon with Electronic Sounder, Ø150 mm, 120 dB, Wall Mount

Wall-mount Ø150 mm bulb revolving signal beacon with 120 dB electronic sounder for vessels and heavy industry.

Key features

  • Multi-faceted reflector, 120-140 RPM
  • Wall-mount signal beacon and electronic sounder combination for vessels and heavy industry
  • Aluminum housing with attached terminal box; IP66 hermetic structure
  • 25 selectable sounds (warning, special warning, melodies, alarms, custom voices) via internal switches
  • Customization: 3/4" PF entry, cable gland, external sound selection (-LC), brass housing

Specifications

Light source Bulb revolving (15W G23 15S)
Beacon diameter Ø150 mm
Sound level Max. 120 dB at 1 m
Sound output WS/WP max. 120 dB, WA max. 118 dB, WM max. 115 dB, WV 109-117 dB
Voltage DC12V (3.6A), DC24V (1.8A), AC110V (470mA), AC220V (280mA)
Ambient temperature -20 to +50 °C
Protection rating IP66
Cable entry 1/2" PF
Materials Lens PC, housing Al, cage STS316L
Colors R, A, G, B
Mounting Wall mount
Transistor input NPN
SMD Type: standard | Weight: DC 5.98kg, AC 6.76kg
SMDP Type: protection cage | Weight: DC 6.27kg, AC 7.05kg
Sounder BeaconsQlight
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SMD Bulb Revolving Beacon with Electronic Sounder, Ø150 mm, 120 dB, Wall Mount

Brand Qlight·Sounder Beacons

Available part numbers (2)

SMD, SMDP

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMDType: standard | Weight: DC 5.98kg, AC 6.76kg
SMDPType: protection cage | Weight: DC 6.27kg, AC 7.05kg
