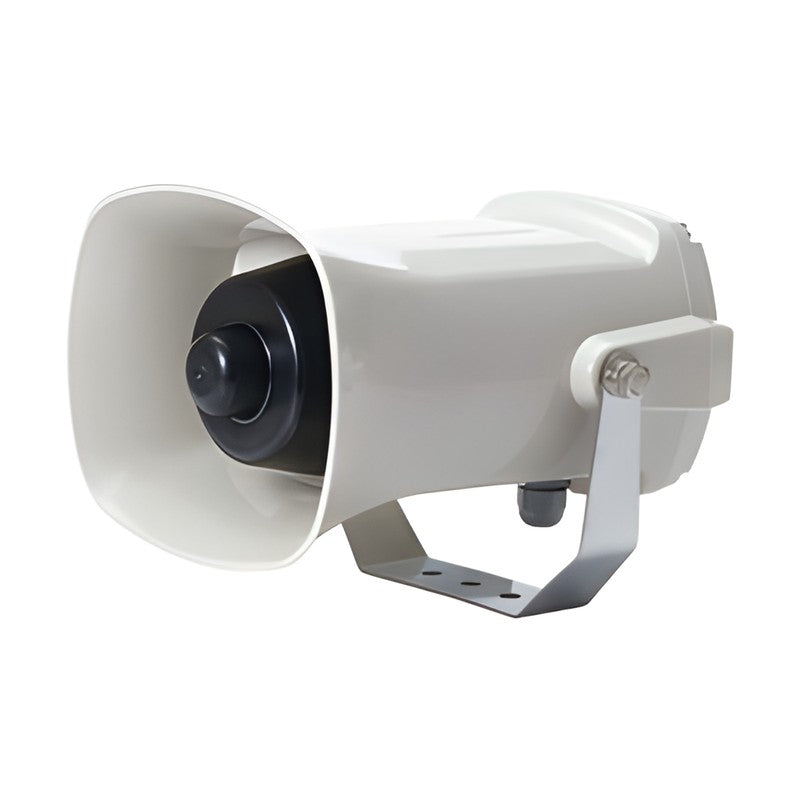

Qlight SMP Self Stand Multifunctional Electric Signal Horn (30 W / 50 W)

Qlight SMP Self Stand Multifunctional Electric Signal Horn (30 W / 50 W)

Self-standing multifunctional electric horn with 30 built-in sounds, available with SD card MP3 playback (SMP35/SMP50) or built-in sounds only (-N).

Key features

  • 30 pre-recorded sounds with binary (30 ch) and bit (5 ch, 6 groups) input
  • SMP35 uses a 30 W unit, SMP50 a high-volume 50 W unit
  • Volume adjustment and sound selection switches inside the unit
  • SD card MP3 support on SMP35/SMP50
  • Customized -LC type selects sounds by external contacts

Specifications

Protection rating IP65
Ambient temperature -25 to +50 °C
Materials Housing ABS, resonance chamber ABS, bracket stainless steel
Voltage DC12V-24V (free voltage 10-30V), AC110V-220V (free voltage 100-240V)
Cable entry Ø16
Compliance RoHS
Qlight SMP Self Stand Multifunctional Electric Signal Horn (30 W / 50 W) - reference 2
SMP35 Output: 30W | Sound: built-in max. 115dB, MP3 max. 113dB | Current: DC max. 760mA, AC max. 200mA | Weight: 0.76kg DC, 1.03kg AC
SMP50 Output: 50W | Sound: built-in max. 123dB, MP3 max. 120dB | Current: DC max. 2.85A, AC max. 720mA | Weight: 0.95kg DC, 1.23kg AC
SMP35-N Output: 30W | Sound: built-in only, max. 115dB | Current: DC max. 680mA, AC max. 170mA | Weight: 0.76kg DC, 1.03kg AC
SMP50-N Output: 50W | Sound: built-in only, max. 123dB | Current: DC max. 2.85A, AC max. 720mA | Weight: 0.95kg DC, 1.23kg AC
Signal HornsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SMP Self Stand Multifunctional Electric Signal Horn (30 W / 50 W)

Brand Qlight·Signal Horns

Available part numbers (4)

SMP35, SMP50, SMP35-N, SMP50-N

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight SMP Self Stand Multifunctional Electric Signal Horn (30 W / 50 W) - reference 2
0 selected
RFQ List (0)
Product codeSpec
SMP35Output: 30W | Sound: built-in max. 115dB, MP3 max. 113dB | Current: DC max. 760mA, AC max. 200mA | Weight: 0.76kg DC, 1.03kg AC
SMP50Output: 50W | Sound: built-in max. 123dB, MP3 max. 120dB | Current: DC max. 2.85A, AC max. 720mA | Weight: 0.95kg DC, 1.23kg AC
SMP35-NOutput: 30W | Sound: built-in only, max. 115dB | Current: DC max. 680mA, AC max. 170mA | Weight: 0.76kg DC, 1.03kg AC
SMP50-NOutput: 50W | Sound: built-in only, max. 123dB | Current: DC max. 2.85A, AC max. 720mA | Weight: 0.95kg DC, 1.23kg AC
