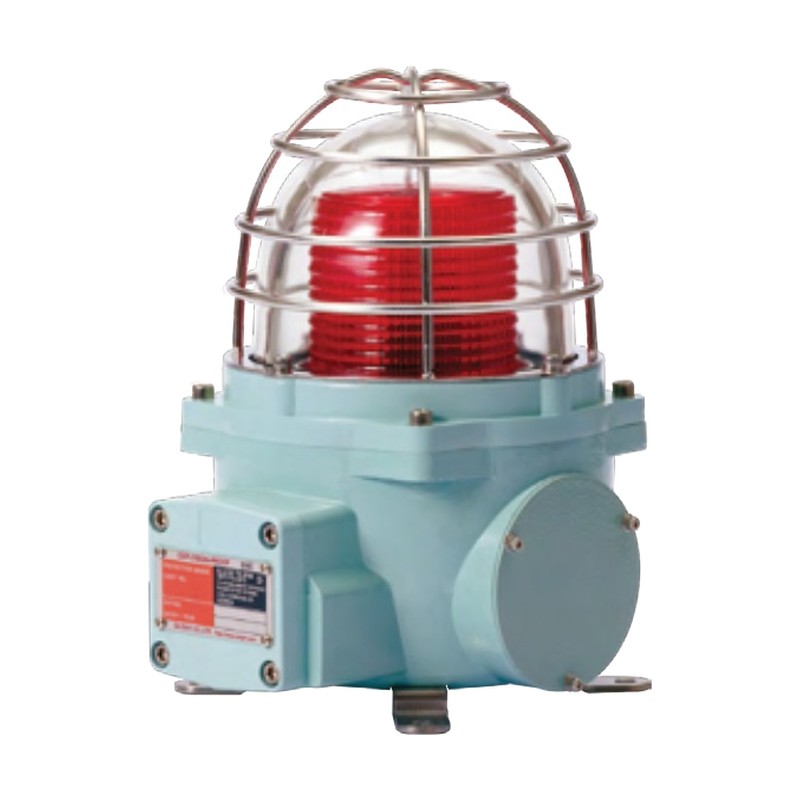

Qlight SNE-S-TI Telephone-Initiated Explosion-Proof Xenon Strobe Beacon, Ø130 mm

Qlight SNE-S-TI Telephone-Initiated Explosion-Proof Xenon Strobe Beacon, Ø130 mm

Telephone-initiated lightweight Ø130 mm flameproof xenon strobe beacon for Zone 1/2.

Key features

  • Telephone initiated: built-in alarm activates on 25 Hz telephone ring signal
  • Connects to a 2-wire PSTN telephone line
  • Highly noticeable telephone alarm for noisy environments
  • Xenon strobe light, xenon lamp BGA2120-BBC, 60-80 flashes/min
  • Aluminum housing, IP66, integrated terminal box; customization: Ex cable gland, 2 cable entries

Specifications

Explosion protection Ex db IIC T6 Gb (IECEx/ATEX)
Protection rating IP66
Ambient temperature -40 to +60 °C
Cable entry 1/2" NPT
Certificates IECEx, ATEX
Colors R, A, G, B
Usage area Zone 1, Zone 2
Telephone line Idle 45-55VDC; ring AC25V-120V, 15-55 Hz
Materials Lens tempered glass, housing Al, cage STS316L
Housing color Munsell 7.5BG 7/2
Light source Xenon strobe
SNE-S-TI Voltage: DC12V (480mA), DC24V (300mA), AC120V (100mA), AC230V (80mA) | Weight: 3.60kg DC, 4.25kg AC
Explosion-Proof Signal LightsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SNE-S-TI Telephone-Initiated Explosion-Proof Xenon Strobe Beacon, Ø130 mm

Brand Qlight·Explosion-Proof Signal Lights

Available part numbers (1)

SNE-S-TI

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNE-S-TIVoltage: DC12V (480mA), DC24V (300mA), AC120V (100mA), AC230V (80mA) | Weight: 3.60kg DC, 4.25kg AC
