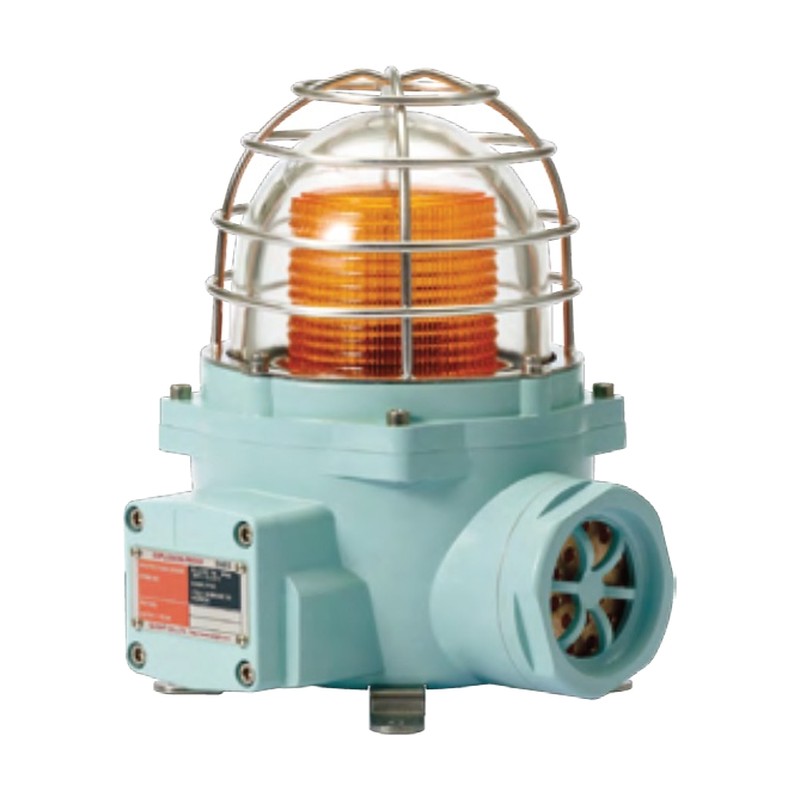

Qlight SNES-S-TI Telephone-Initiated Explosion-Proof Xenon Strobe Beacon with Siren Buzzer, Ø130 mm

Qlight SNES-S-TI Telephone-Initiated Explosion-Proof Xenon Strobe Beacon with Siren Buzzer, Ø130 mm

Telephone-initiated flameproof xenon strobe beacon with 105 dB siren buzzer.

Key features

  • Telephone initiated: built-in alarm activates on 25 Hz telephone ring signal
  • Connects to a 2-wire PSTN telephone line
  • Highly noticeable telephone alarm for noisy environments
  • Xenon strobe (BGA2120-BBC lamp) with siren buzzer max. 105 dB
  • Aluminum housing, IP66, integrated terminal box; customization: Ex cable gland, 2 cable entries

Specifications

Explosion protection Ex db IIC T6 Gb (IECEx/ATEX)
Protection rating IP66
Ambient temperature -40 to +60 °C
Cable entry 1/2" NPT
Certificates IECEx, ATEX
Colors R, A, G, B
Usage area Zone 1, Zone 2
Telephone line Idle 45-55VDC; ring AC25V-120V, 15-55 Hz
Light source Xenon strobe
Sound level Max. 105 dB buzzer
Materials Lens tempered glass, housing Al, cage STS316L
SNES-S-TI Voltage: DC12V (590mA), DC24V (450mA), AC120V (170mA), AC230V (80mA) | Weight: 3.60kg DC, 4.25kg AC
