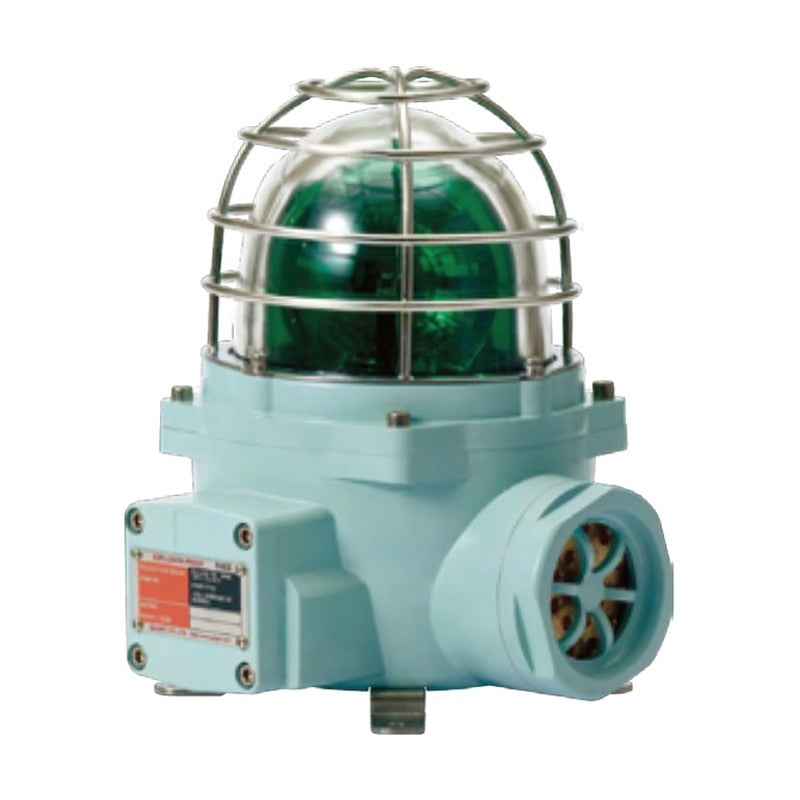

Qlight SNESLR Explosion-Proof LED Revolving Beacon with Siren Buzzer, Ø130 mm

Qlight SNESLR Explosion-Proof LED Revolving Beacon with Siren Buzzer, Ø130 mm

Ø130 mm flameproof LED revolving beacon with 105 dB siren buzzer for Zone 1/2.

Key features

  • LED light collecting system, 120-140 RPM
  • Flameproof beacon with siren buzzer, max. 105 dB
  • Integrated housing and terminal box, IP66
  • Customization: Ex cable gland, 2 cable entries, M20x1.5 entry, 48VDC

Specifications

Protection rating IP66
Cable entry 1/2" NPT
Housing color Munsell 7.5BG 7/2
Materials Lens tempered glass, housing Al, cage STS316L
Colors R, A, G, B
Usage area Zone 1, Zone 2
Explosion protection Ex db IIC T6 Gb (IECEx/ATEX/NEPSI); KCs Ex d IIB+H2 T6
Ambient temperature -40 to +60 °C (KCs +55 °C; TIIS -20 to +55 °C)
Sound level Max. 105 dB buzzer
Light source LED revolving
SNESLR Voltage: DC12V (370mA), DC24V (370mA), AC120V (95mA), AC230V (50mA) | Weight: 3.60kg DC, 4.30kg AC | Certificates incl. TIIS
Explosion-Proof Signal LightsQlight
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SNESLR Explosion-Proof LED Revolving Beacon with Siren Buzzer, Ø130 mm

Brand Qlight·Explosion-Proof Signal Lights

Available part numbers (1)

SNESLR

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SNESLRVoltage: DC12V (370mA), DC24V (370mA), AC120V (95mA), AC230V (50mA) | Weight: 3.60kg DC, 4.30kg AC | Certificates incl. TIIS
