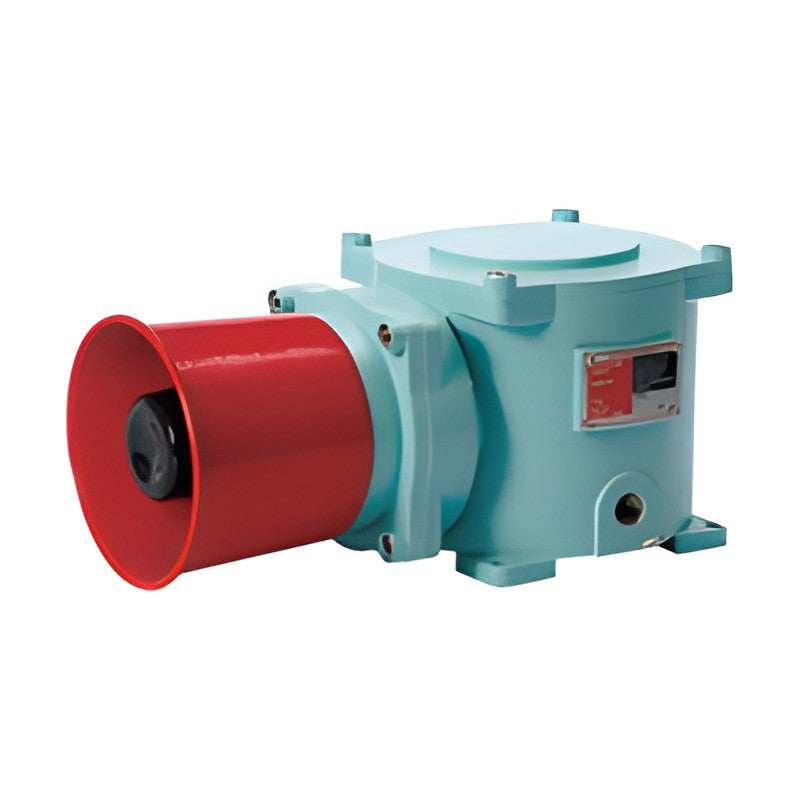

Qlight SPNA Explosion-Proof Electronic Sounder, 118 dB

Flameproof aluminum alarm horn sounder with stainless horn and 25 selectable sounds for Zone 1/2.

Key features

Flameproof Ex db IIC T6 alarm horn
25 selectable sounds: warning, special warning, melodies, alarms, custom voices
Internal terminal box for power wiring
Customization: external sound selection (-LC), 2 entries, 3/4" NPT/M20/M25 entry, KCs IIC version (SPNAKC)

Specifications

Sound level	WS/WP/WM max. 118 dB, WA max. 116 dB, WV 110-115 dB
Explosion protection	Ex db IIC T6 Gb (IECEx/ATEX/NEPSI/CCS/TS); KCs Ex d IIB+H2 T6
Protection rating	IP66
Ambient temperature	-40 to +60 °C (KCs +55 °C; TS -20 °C)
Materials	Housing Al, horn STS316L
Cable entry	1/2" NPT
Housing color	Munsell 7.5BG 7/2
Usage area	Zone 1, Zone 2
Certificates	IECEx, ATEX, NEPSI, CCC, KCs, CCS, TS
Transistor input	NPN

SPNA

Voltage: DC24V (830mA), AC120V (190mA), AC230V (110mA) | Weight: 6.09kg DC, 6.44kg AC

Explosion-Proof HornsQlight

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SPNA Explosion-Proof Electronic Sounder, 118 dB

Brand Qlight·Explosion-Proof Horns

Available part numbers (1)

SPNA

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
