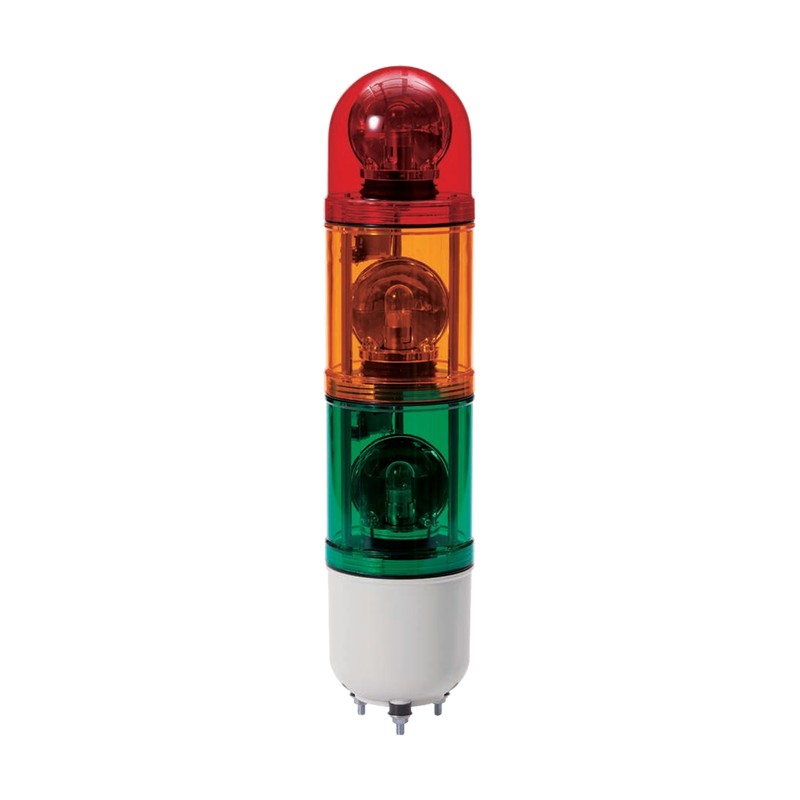

Qlight SR Ø80mm Stackable Warning/Signal Light (Bulb Revolving and LED)

Qlight SR Ø80mm Stackable Warning/Signal Light (Bulb Revolving and LED)

Ø80 mm stackable warning light with 1 to 3 tiers, available as bulb revolving (SR/SRP) or LED steady/flashing (SRL/SRLP) versions.

Key features

  • Ø80 mm stacked structure transmits multiple signals from one light
  • SR/SRP bulb revolving type, 120-140 RPM, with low-noise power transmission system
  • SRL/SRLP LED type with multi-tiered reflector and 94 mm diffusing lens, flashing rate 60-80/min
  • P versions are pole-mounted with a Ø90 base
  • 4 layers and customized color arrangements available on request

Specifications

Protection rating IP44
Materials Lens AS, body ABS, reflector heat-resistant ABS
Layers 1-3
Standard colors 1 layer R; 2 layers R, G; 3 layers R, A, G
Lens diameter Ø83mm
Qlight SR Ø80mm Stackable Warning/Signal Light (Bulb Revolving and LED) - reference 2
SR Light source: Bulb revolving 12V5W/24V5W T16x35 15S | Mounting: base | Layers: 1-3 | Voltage: DC12V, DC24V, AC110V, AC220V | Ambient temperature: -20 to +50 °C
SRP Light source: Bulb revolving 12V5W/24V5W T16x35 15S | Mounting: pole | Layers: 1-3 | Voltage: DC12V, DC24V, AC110V, AC220V | Ambient temperature: -20 to +50 °C
SRL Light source: LED steady/flashing | Mounting: base | Layers: 1-3 | Voltage: DC12V-24V, AC110V, AC220V | Ambient temperature: -30 to +50 °C
SRLP Light source: LED steady/flashing | Mounting: pole | Layers: 1-3 | Voltage: DC12V-24V, AC110V, AC220V | Ambient temperature: -30 to +50 °C
Signal Tower LightsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight SR Ø80mm Stackable Warning/Signal Light (Bulb Revolving and LED)

Brand Qlight·Signal Tower Lights

Available part numbers (4)

SR, SRP, SRL, SRLP

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight SR Ø80mm Stackable Warning/Signal Light (Bulb Revolving and LED) - reference 2
0 selected
RFQ List (0)
Product codeSpec
SRLight source: Bulb revolving 12V5W/24V5W T16x35 15S | Mounting: base | Layers: 1-3 | Voltage: DC12V, DC24V, AC110V, AC220V | Ambient temperature: -20 to +50 °C
SRPLight source: Bulb revolving 12V5W/24V5W T16x35 15S | Mounting: pole | Layers: 1-3 | Voltage: DC12V, DC24V, AC110V, AC220V | Ambient temperature: -20 to +50 °C
SRLLight source: LED steady/flashing | Mounting: base | Layers: 1-3 | Voltage: DC12V-24V, AC110V, AC220V | Ambient temperature: -30 to +50 °C
SRLPLight source: LED steady/flashing | Mounting: pole | Layers: 1-3 | Voltage: DC12V-24V, AC110V, AC220V | Ambient temperature: -30 to +50 °C
