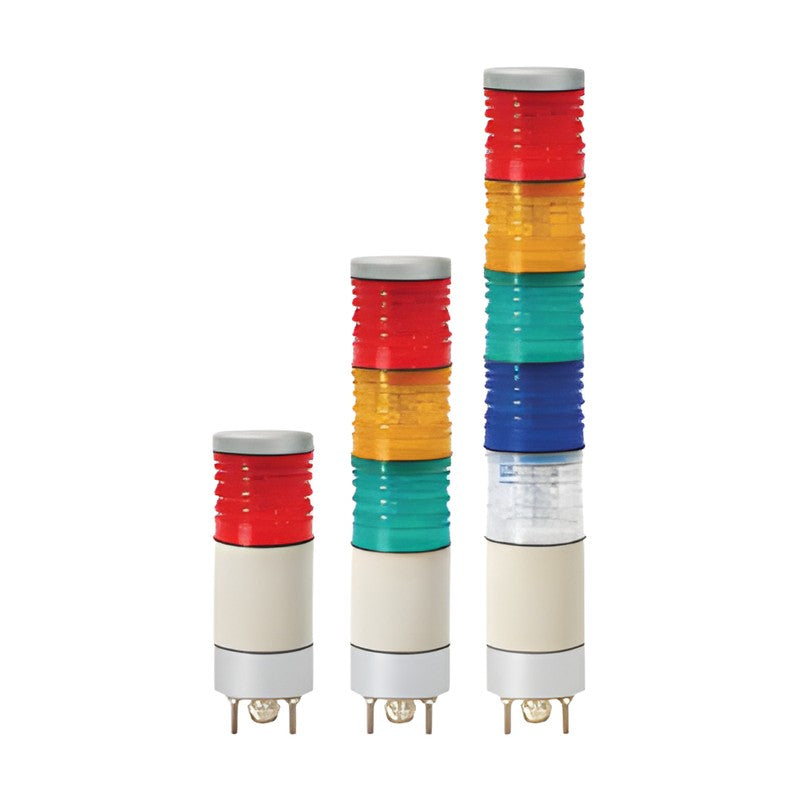

• Qlight ST45ML-Ex Ø45 Non-Sparking Explosion Proof LED Tower Light
1 1

Qlight ST45ML-Ex Ø45 Non-Sparking Explosion Proof LED Tower Light

Qlight ST45ML-Ex Ø45 Non-Sparking Explosion Proof LED Tower Light

Ø45 mm non-sparking (Ex nR) explosion protected LED steady tower light for Zone 2 hazardous areas.

Key features

  • High-intensity LED steady light with special reflector for long-distance visibility
  • Polycarbonate lens and housing, aluminium mounting housing
  • Explosion protection Ex nR for Zone 2 use
  • 1 to 5 layers, DC12V or DC24V
  • Wiring by external contact or NPN / PNP transistor

Specifications

Protection rating IP54
Ambient temperature -20 to +40 °C
Diameter Ø45
Material Lens PC, housing PC, mounting housing Al, cover PC/Al
Light source current (1 layer) 24mA (DC12V), 12mA (DC24V)
Explosion protection KCs Ex nR II T6 IP54 (2-3 layers); NEPSI/CCC Ex nR IIC T6 Gc (1-5 layers)
ST45ML-Ex Layers: 1-5 | Voltage: DC12V, DC24V | Colors: R, A, G, B, W | Certificates: CCC (NEPSI)
ST45ML2 Layers: 2 | Voltage: DC12V, DC24V | Colors: R, G | Certificates: KCs Ex nR II T6
ST45ML3 Layers: 3 | Voltage: DC12V, DC24V | Colors: R, A, G | Certificates: KCs Ex nR II T6
Explosion-Proof Signal LightsQlight
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight ST45ML-Ex Ø45 Non-Sparking Explosion Proof LED Tower Light

Brand Qlight·Explosion-Proof Signal Lights

Available part numbers (3)

ST45ML-Ex, ST45ML2, ST45ML3

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST45ML-ExLayers: 1-5 | Voltage: DC12V, DC24V | Colors: R, A, G, B, W | Certificates: CCC (NEPSI)
ST45ML2Layers: 2 | Voltage: DC12V, DC24V | Colors: R, G | Certificates: KCs Ex nR II T6
ST45ML3Layers: 3 | Voltage: DC12V, DC24V | Colors: R, A, G | Certificates: KCs Ex nR II T6
