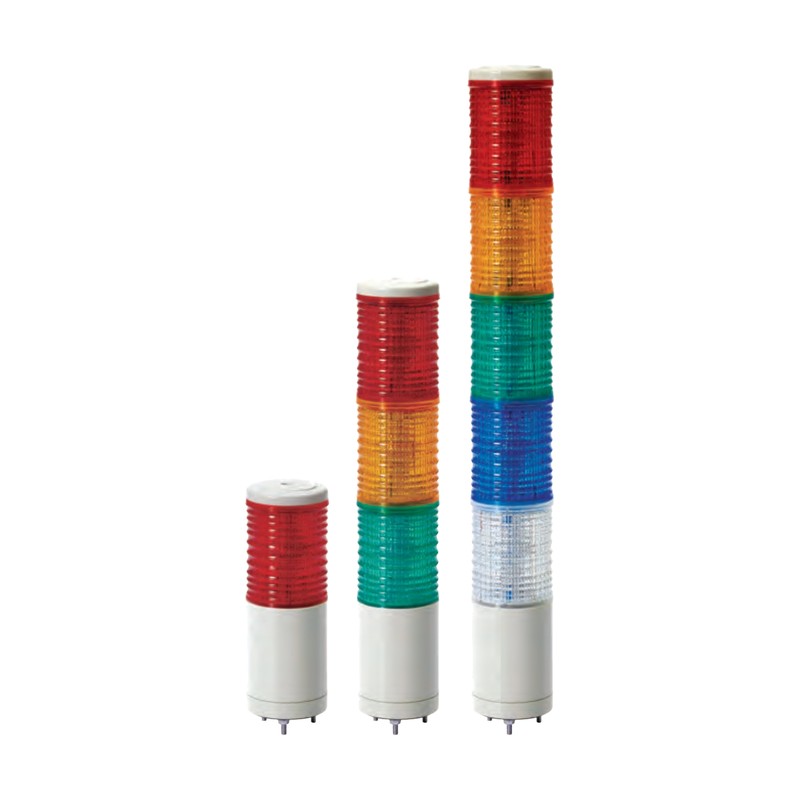

• Qlight ST56ML Ø56mm LED Steady/Flashing Tower Light, Direct mount, 70mm Lens
1 1

Qlight ST56ML Ø56mm LED Steady/Flashing Tower Light, Direct mount, 70mm Lens

Qlight ST56ML Ø56mm LED Steady/Flashing Tower Light, Direct mount, 70mm Lens

Ø56mm direct mount LED steady/flashing tower light with 70mm high lens modules and optional buzzer or sound unit.

Key features

  • LED steady/flashing tower light with 1 to 5 layers
  • Lifetime of over 20,000 hours with high-intensity LED light source
  • Built-in buzzer, 5 warning sounds, 5 melodies or 5 alarms selectable
  • Multi-tiered reflector light distribution system for bright, even light
  • Customized color arrangement available
  • AC types provide individual layer power (same wiring as DC steady)

Specifications

Lens diameter Ø56mm
Lens height 70mm
Mount Direct mount
Materials Lens AS, housing ABS, pole Al
Ambient temperature -30 to +60 °C
Protection rating IP44 standard, IP23 buzzer type
Sound volume Max. 90dB at 1m (buzzer), max. 85dB at 1m (speaker)
Flashing rate 60-80/min
Light source current AC/DC12V 120mA, AC/DC24V 95mA, AC110V 70mA, AC220V 55mA
Certifications CE (DC12V, DC24V), UL (DC24V, except sound types)
RoHS Compliant
ST56ML Function: Steady | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56ML-BZ Function: Steady with built-in buzzer | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56ML-WS Function: Steady with 5 warning sounds | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56ML-WM Function: Steady with 5 melodies | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56ML-WA Function: Steady with 5 alarms | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56MLF Function: Steady/Flashing | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56MLF-BZ Function: Steady/Flashing with built-in buzzer | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56MLF-WS Function: Steady/Flashing with 5 warning sounds | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56MLF-WM Function: Steady/Flashing with 5 melodies | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56MLF-WA Function: Steady/Flashing with 5 alarms | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
Signal Tower LightsQlight
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight ST56ML Ø56mm LED Steady/Flashing Tower Light, Direct mount, 70mm Lens

Brand Qlight·Signal Tower Lights

Available part numbers (10)

ST56ML, ST56ML-BZ, ST56ML-WS, ST56ML-WM, ST56ML-WA, ST56MLF, ST56MLF-BZ, ST56MLF-WS, ST56MLF-WM, ST56MLF-WA

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST56MLFunction: Steady | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56ML-BZFunction: Steady with built-in buzzer | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56ML-WSFunction: Steady with 5 warning sounds | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56ML-WMFunction: Steady with 5 melodies | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56ML-WAFunction: Steady with 5 alarms | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56MLFFunction: Steady/Flashing | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56MLF-BZFunction: Steady/Flashing with built-in buzzer | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56MLF-WSFunction: Steady/Flashing with 5 warning sounds | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56MLF-WMFunction: Steady/Flashing with 5 melodies | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST56MLF-WAFunction: Steady/Flashing with 5 alarms | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
