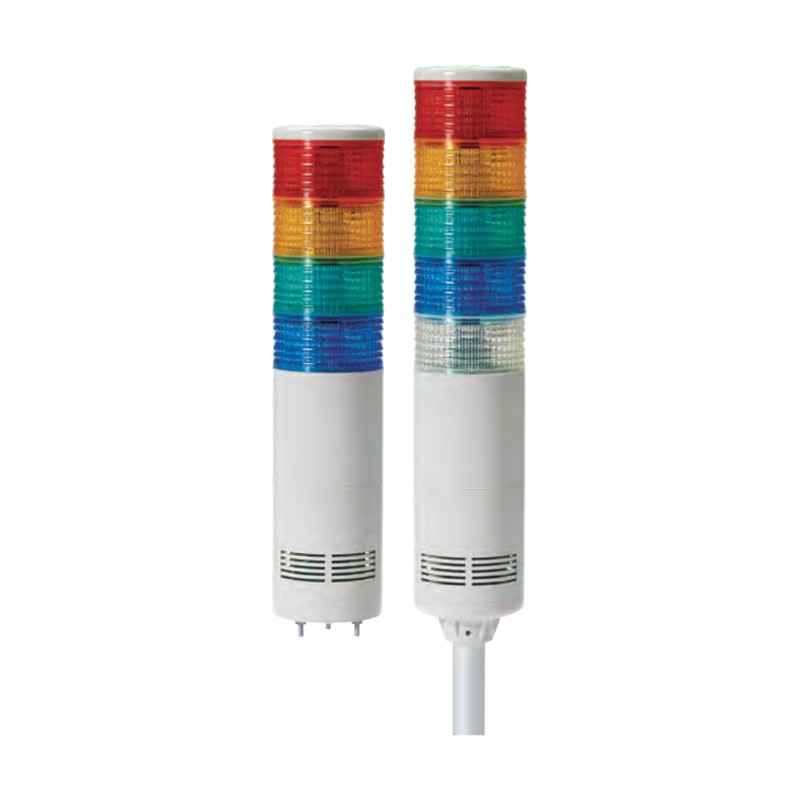

Qlight ST80 Ø80 Ethernet LED Tower Light (Direct and Pole Mount)

Qlight ST80 Ø80 Ethernet LED Tower Light (Direct and Pole Mount)

Ø80 mm LED tower light with sound unit, remotely controlled over Ethernet / LAN, in direct mount and pole mount versions.

Key features

  • Remote control over the internet or a local area network (Ethernet, RJ45)
  • Steady/flashing controlled by software
  • Sound options: 5 buzzer sounds (BZ), 5 warning sounds (WS), 5 melodies (WM) or 5 alarms (WA)
  • Standard operation: 2 layers lit at the same time
  • Ethernet port and power cable supplied; power plug supplied for AC type

Specifications

Protection rating IP23
Ambient temperature -30 to +50 °C
Diameter Ø80
Material Lens AS, housing ABS
Sound level Buzzer max.90dB, signal sounds max.85dB at 1m
Light source current (1 layer) 260mA (DC12V), 180mA (DC24V), Max.70mA (AC)
Signal sound current 350mA (DC12V), 230mA (DC24V), Max.85mA (AC)
Height 230-390 mm (direct), 367-527 mm (pole)
Usage Indoor
ST80MEL-ETN-BZ Mount: Direct | Sound: 5 buzzer sounds | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80MEL-ETN-WS Mount: Direct | Sound: 5 warning sounds | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80MEL-ETN-WM Mount: Direct | Sound: 5 melodies | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80MEL-ETN-WA Mount: Direct | Sound: 5 alarms | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80EL-ETN-BZ Mount: Pole | Sound: 5 buzzer sounds | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-ETN-WS Mount: Pole | Sound: 5 warning sounds | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-ETN-WM Mount: Pole | Sound: 5 melodies | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-ETN-WA Mount: Pole | Sound: 5 alarms | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
Network Signal TowersQlight
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight ST80 Ø80 Ethernet LED Tower Light (Direct and Pole Mount)

Brand Qlight·Network Signal Towers

Available part numbers (8)

ST80MEL-ETN-BZ, ST80MEL-ETN-WS, ST80MEL-ETN-WM, ST80MEL-ETN-WA, ST80EL-ETN-BZ, ST80EL-ETN-WS, ST80EL-ETN-WM, ST80EL-ETN-WA

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST80MEL-ETN-BZMount: Direct | Sound: 5 buzzer sounds | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80MEL-ETN-WSMount: Direct | Sound: 5 warning sounds | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80MEL-ETN-WMMount: Direct | Sound: 5 melodies | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80MEL-ETN-WAMount: Direct | Sound: 5 alarms | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80EL-ETN-BZMount: Pole | Sound: 5 buzzer sounds | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-ETN-WSMount: Pole | Sound: 5 warning sounds | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-ETN-WMMount: Pole | Sound: 5 melodies | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-ETN-WAMount: Pole | Sound: 5 alarms | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
