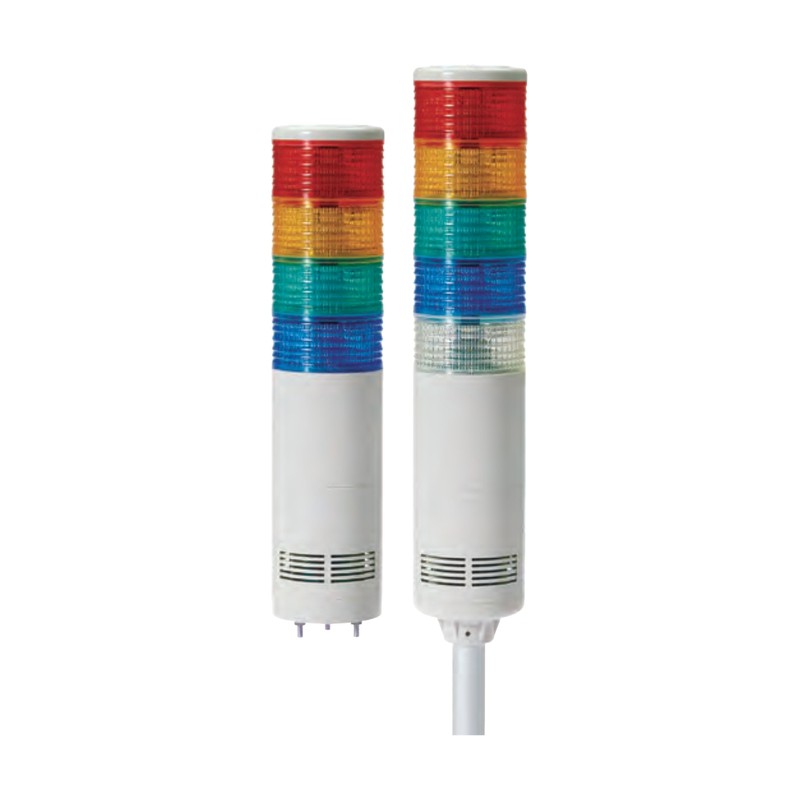

Qlight ST80 Ø80 USB LED Tower Light (Direct and Pole Mount)

Qlight ST80 Ø80 USB LED Tower Light (Direct and Pole Mount)

Ø80 mm LED tower light controlled and powered through a PC USB port, in direct mount and pole mount versions.

Key features

  • Controlled and powered from a PC USB port; no separate power supply needed
  • Steady/flashing controlled by software
  • Up to 4 units per PC
  • Sound options: 5 buzzer sounds (BZ), 5 warning sounds (WS), 5 melodies (WM) or 5 alarms (WA)
  • Layer color arrangement can be customized
  • Standard operation: 2 layers lit at the same time

Specifications

Protection rating IP23
Ambient temperature -30 to +50 °C
Voltage USB DC5V (2 ports)
Diameter Ø80
Material Lens AS, housing ABS
Sound level Buzzer max.90dB, signal sounds max.85dB at 1m
Height 230-390 mm (direct), 367-527 mm (pole)
Usage Indoor
ST80MEL-USB-BZ Mount: Direct | Sound: 5 buzzer sounds | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80MEL-USB-WS Mount: Direct | Sound: 5 warning sounds | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80MEL-USB-WM Mount: Direct | Sound: 5 melodies | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80MEL-USB-WA Mount: Direct | Sound: 5 alarms | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80EL-USB-BZ Mount: Pole | Sound: 5 buzzer sounds | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-USB-WS Mount: Pole | Sound: 5 warning sounds | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-USB-WM Mount: Pole | Sound: 5 melodies | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-USB-WA Mount: Pole | Sound: 5 alarms | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
USB Signal TowersQlight
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight ST80 Ø80 USB LED Tower Light (Direct and Pole Mount)

Brand Qlight·USB Signal Towers

Available part numbers (8)

ST80MEL-USB-BZ, ST80MEL-USB-WS, ST80MEL-USB-WM, ST80MEL-USB-WA, ST80EL-USB-BZ, ST80EL-USB-WS, ST80EL-USB-WM, ST80EL-USB-WA

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST80MEL-USB-BZMount: Direct | Sound: 5 buzzer sounds | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80MEL-USB-WSMount: Direct | Sound: 5 warning sounds | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80MEL-USB-WMMount: Direct | Sound: 5 melodies | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80MEL-USB-WAMount: Direct | Sound: 5 alarms | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W
ST80EL-USB-BZMount: Pole | Sound: 5 buzzer sounds | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-USB-WSMount: Pole | Sound: 5 warning sounds | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-USB-WMMount: Pole | Sound: 5 melodies | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-USB-WAMount: Pole | Sound: 5 alarms | Layers: 1-5 | Colors: 1 layer R; 2 layers R, G; 3 layers R, A, G; 4 layers R, A, G, B; 5 layers R, A, G, B, W | Bracket: LB24, LW24, QZ24, SZ24, QL24, SL24
