• Qlight ST80EL Ø80mm LED Steady/Flashing Tower Light, Pole mount, 40mm Lens
1 1

Qlight ST80EL Ø80mm LED Steady/Flashing Tower Light, Pole mount, 40mm Lens

Qlight ST80EL Ø80mm LED Steady/Flashing Tower Light, Pole mount, 40mm Lens

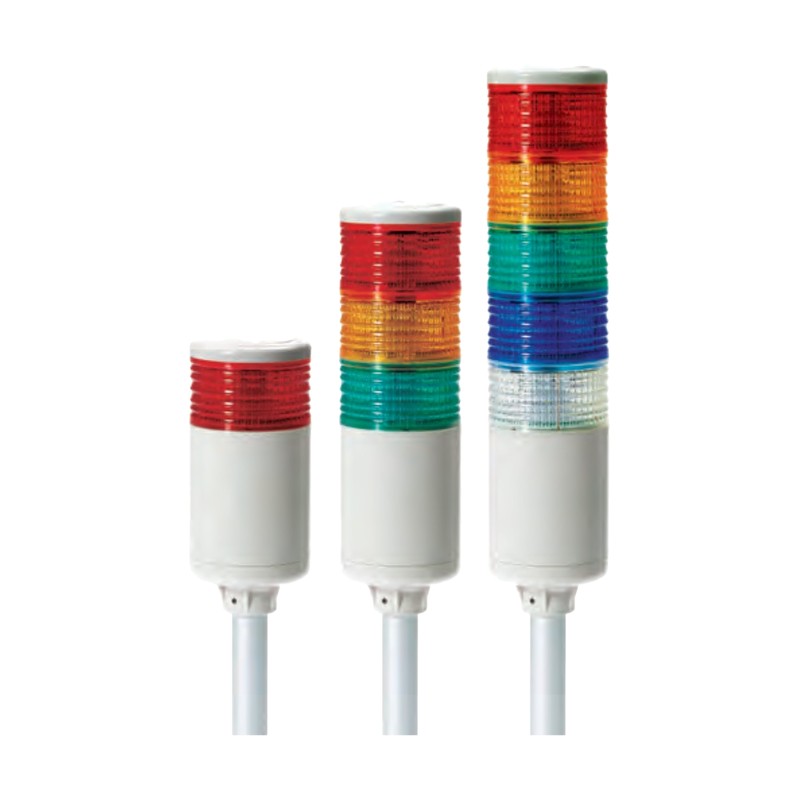

Ø80mm pole mount LED steady/flashing tower light with 40mm high lens modules and optional buzzer or sound unit.

Key features

  • LED steady/flashing tower light with 1 to 5 layers
  • Lifetime of over 20,000 hours with high-intensity LED light source
  • Built-in buzzer, 5 warning sounds, 5 melodies or 5 alarms selectable
  • Multi-tiered reflector light distribution system for bright, even light
  • Customized color arrangement available
  • AC types provide individual layer power (same wiring as DC steady)

Specifications

Lens diameter Ø80mm
Lens height 40mm
Mount Pole mount
Materials Lens AS, housing ABS, pole Al
Ambient temperature -30 to +60 °C
Protection rating IP44 standard, IP23 buzzer type
Sound volume Max. 90dB at 1m (buzzer), max. 85dB at 1m (speaker)
Flashing rate 60-80/min
Light source current AC/DC12V 80mA, AC/DC24V 60mA, AC110V 50mA, AC220V 40mA
Certifications CE (DC12V, DC24V), UL (DC24V, except sound types)
RoHS Compliant
ST80EL Function: Steady | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-BZ Function: Steady with built-in buzzer | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-WS Function: Steady with 5 warning sounds | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-WM Function: Steady with 5 melodies | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-WA Function: Steady with 5 alarms | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80ELF Function: Steady/Flashing | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80ELF-BZ Function: Steady/Flashing with built-in buzzer | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80ELF-WS Function: Steady/Flashing with 5 warning sounds | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80ELF-WM Function: Steady/Flashing with 5 melodies | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80ELF-WA Function: Steady/Flashing with 5 alarms | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
Signal Tower LightsQlight
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight ST80EL Ø80mm LED Steady/Flashing Tower Light, Pole mount, 40mm Lens

Brand Qlight·Signal Tower Lights

Available part numbers (10)

ST80EL, ST80EL-BZ, ST80EL-WS, ST80EL-WM, ST80EL-WA, ST80ELF, ST80ELF-BZ, ST80ELF-WS, ST80ELF-WM, ST80ELF-WA

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ST80ELFunction: Steady | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-BZFunction: Steady with built-in buzzer | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-WSFunction: Steady with 5 warning sounds | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-WMFunction: Steady with 5 melodies | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80EL-WAFunction: Steady with 5 alarms | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80ELFFunction: Steady/Flashing | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80ELF-BZFunction: Steady/Flashing with built-in buzzer | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80ELF-WSFunction: Steady/Flashing with 5 warning sounds | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80ELF-WMFunction: Steady/Flashing with 5 melodies | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
ST80ELF-WAFunction: Steady/Flashing with 5 alarms | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W | Brackets: LB24, LW24, QZ24, SZ24, QL24, SL24
