Qlight ST80MEL Ø80mm LED Steady/Flashing Tower Light, Direct mount, 40mm Lens

Qlight ST80MEL Ø80mm LED Steady/Flashing Tower Light, Direct mount, 40mm Lens

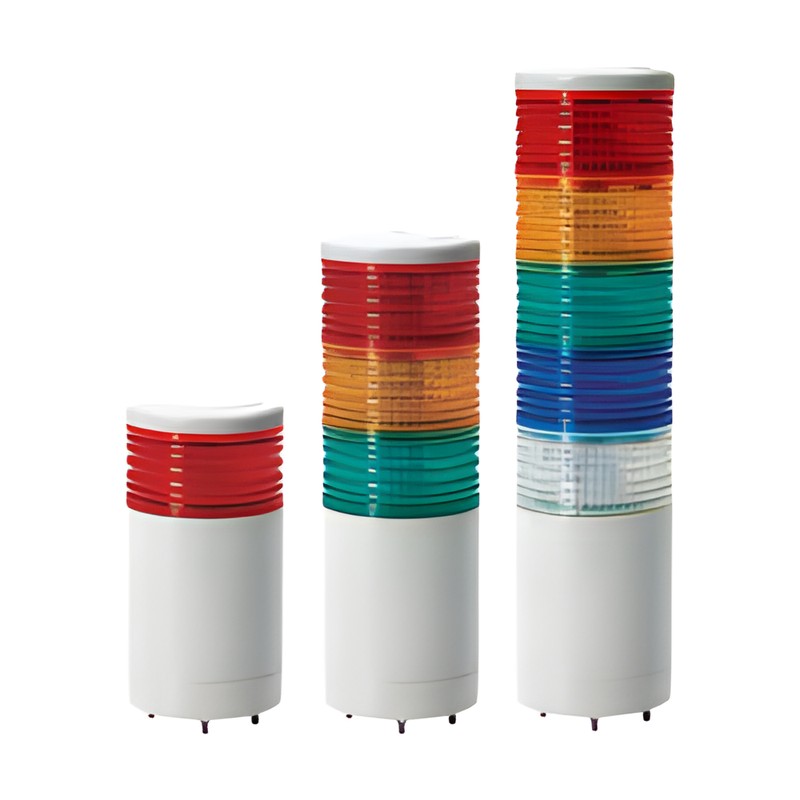

Ø80mm direct mount LED steady/flashing tower light with 40mm high lens modules and optional buzzer or sound unit.

Key features

  • LED steady/flashing tower light with 1 to 5 layers
  • Lifetime of over 20,000 hours with high-intensity LED light source
  • Built-in buzzer, 5 warning sounds, 5 melodies or 5 alarms selectable
  • Multi-tiered reflector light distribution system for bright, even light
  • Customized color arrangement available
  • AC types provide individual layer power (same wiring as DC steady)

Specifications

Lens diameter Ø80mm
Lens height 40mm
Mount Direct mount
Materials Lens AS, housing ABS, pole Al
Ambient temperature -30 to +60 °C
Protection rating IP44 standard, IP23 buzzer type
Sound volume Max. 90dB at 1m (buzzer), max. 85dB at 1m (speaker)
Flashing rate 60-80/min
Light source current AC/DC12V 80mA, AC/DC24V 60mA, AC110V 50mA, AC220V 40mA
Certifications CE (DC12V, DC24V), UL (DC24V, except sound types)
RoHS Compliant
ST80MEL Function: Steady | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST80MEL-BZ Function: Steady with built-in buzzer | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST80MEL-WS Function: Steady with 5 warning sounds | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST80MEL-WM Function: Steady with 5 melodies | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST80MEL-WA Function: Steady with 5 alarms | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST80MELF Function: Steady/Flashing | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST80MELF-BZ Function: Steady/Flashing with built-in buzzer | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST80MELF-WS Function: Steady/Flashing with 5 warning sounds | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST80MELF-WM Function: Steady/Flashing with 5 melodies | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
ST80MELF-WA Function: Steady/Flashing with 5 alarms | Layers: 1-5 | Voltage: AC/DC12V, AC/DC24V, AC110V, AC220V | Colors: R, A, G, B, W
