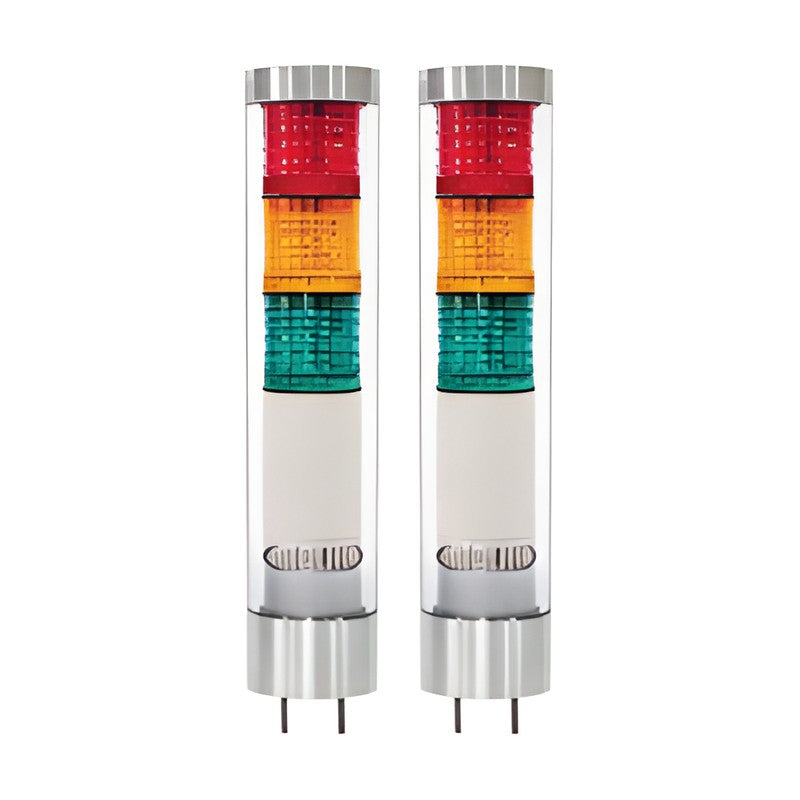

Qlight STB45ML-NEC Ø45 Increased Safety Explosion Proof LED Tower Light with Buzzer

NRTL-certified increased safety explosion proof 3-layer LED tower light with built-in buzzer for Class I Division 2 / Zone 2 areas.

Key features

Class I, Division 2, Groups A, B, C, D T6 and Class I, Zone 2, AEx ec IIC T6 Gc
INTERTEK (NRTL) certification for use in the USA and Canada
Built-in buzzer up to 83 dB at 1 m, adjustable
High brightness LED steady light with special reflector
Polycarbonate lens and housing, aluminium mounting housing and upper cover

Specifications

Protection rating	IP54
Ambient temperature	-20 to +40 °C
Layers	3
Voltage	DC24V
Colors	R, A, G
Sound level	Max.83dB at 1m
Light source current (1 layer)	12mA
Buzzer current	40mA
Weight	0.40kg
Certificates	INTERTEK (NRTL), IECEx, CE
Power cable	22AWG (10 core)

STB45ML-NEC

Layers: 3 | Voltage: DC24V | Colors: R, A, G | Certificates: INTERTEK (NRTL), IECEx

Explosion-Proof Signal LightsQlight

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight STB45ML-NEC Ø45 Increased Safety Explosion Proof LED Tower Light with Buzzer

Brand Qlight·Explosion-Proof Signal Lights

Available part numbers (1)

STB45ML-NEC

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	STB45ML-NEC	Layers: 3 \| Voltage: DC24V \| Colors: R, A, G \| Certificates: INTERTEK (NRTL), IECEx
