• Qlight STC56L Ø56mm Multi-Color LED Steady/Flashing Tower Light, Pole mount
1 1

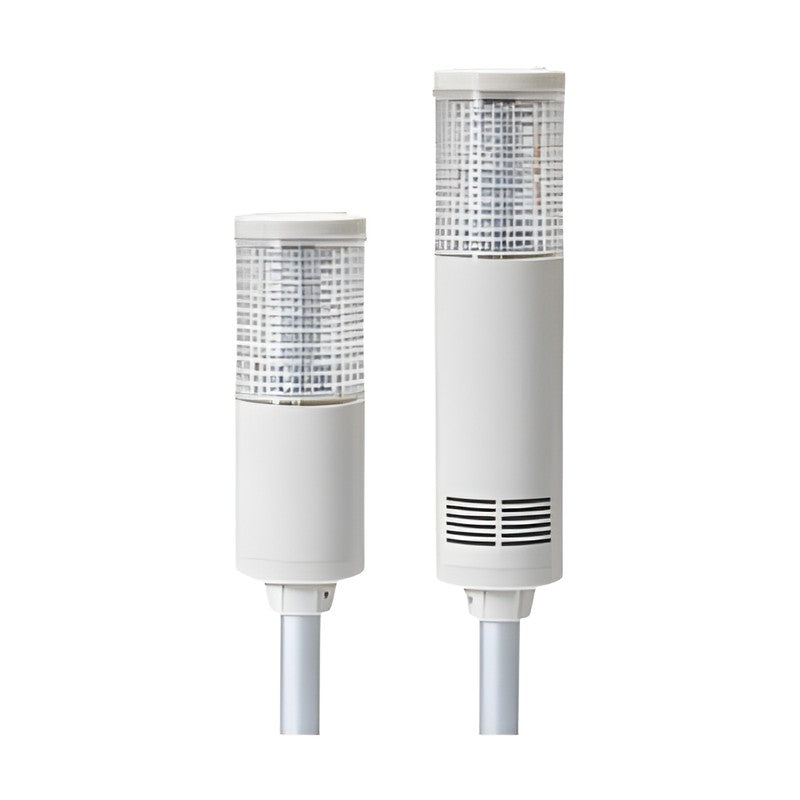

Qlight STC56L Ø56mm Multi-Color LED Steady/Flashing Tower Light, Pole mount

Qlight STC56L Ø56mm Multi-Color LED Steady/Flashing Tower Light, Pole mount

Ø56mm pole mount multi-color LED tower light showing 2 or 3 colors from a single layer.

Key features

  • Economical tower light delivering two to three signals with one layer
  • Lifetime of over 20,000 hours with high-intensity multi-color LED
  • Available with built-in buzzer; 2 buzzer sound types available on request
  • Customized color arrangements and M12 connector type available

Specifications

Lens diameter Ø56mm
Mount Pole mount
Materials Lens PC, housing ABS, pole Al
Ambient temperature -30 to +60 °C
Protection rating IP44 standard, IP23 buzzer type
Sound volume Max. 90dB at 1m
Flashing rate 60-80/min
Light source current DC12V 240mA, DC24V 210mA, AC110V 50mA, AC220V 25mA
Certifications CE (DC24V)
RoHS Compliant
STC56L Function: Steady | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.43-0.62kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STC56L-BZ Function: Steady with built-in buzzer | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.43-0.62kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STC56LF Function: Steady/Flashing | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.43-0.62kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STC56LF-BZ Function: Steady/Flashing with built-in buzzer | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.43-0.62kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STC56EL Lens height: 40mm (optional) | Colors: 2 or 3
Signal Tower LightsQlight
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight STC56L Ø56mm Multi-Color LED Steady/Flashing Tower Light, Pole mount

Brand Qlight·Signal Tower Lights

Available part numbers (5)

STC56L, STC56L-BZ, STC56LF, STC56LF-BZ, STC56EL

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STC56LFunction: Steady | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.43-0.62kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STC56L-BZFunction: Steady with built-in buzzer | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.43-0.62kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STC56LFFunction: Steady/Flashing | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.43-0.62kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STC56LF-BZFunction: Steady/Flashing with built-in buzzer | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.43-0.62kg | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STC56ELLens height: 40mm (optional) | Colors: 2 or 3
