• Qlight STC56ML Ø56mm Multi-Color LED Steady/Flashing Tower Light, Direct mount
1 1

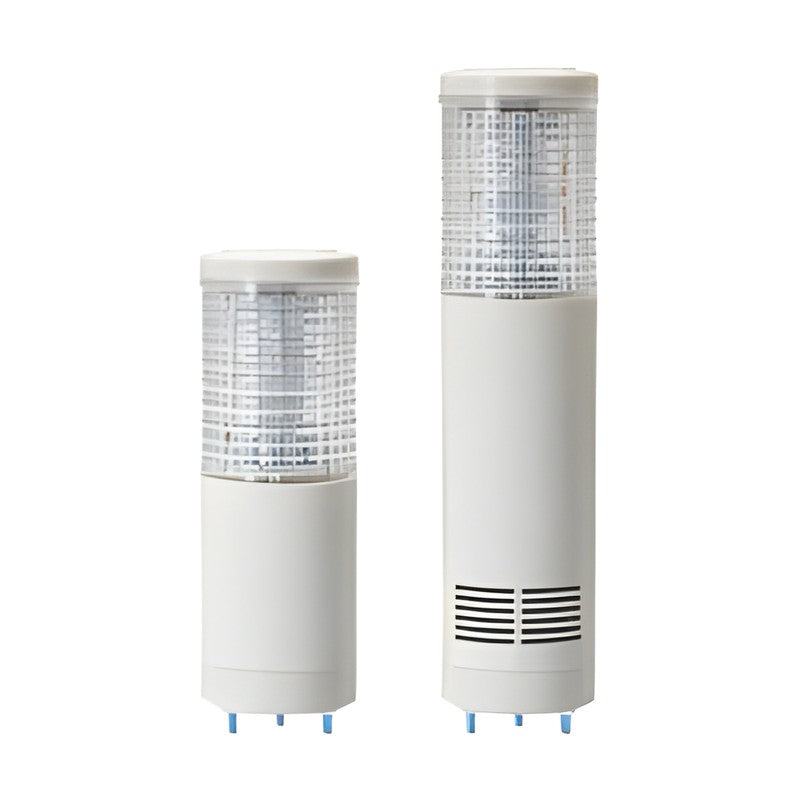

Qlight STC56ML Ø56mm Multi-Color LED Steady/Flashing Tower Light, Direct mount

Qlight STC56ML Ø56mm Multi-Color LED Steady/Flashing Tower Light, Direct mount

Ø56mm direct mount multi-color LED tower light showing 2 or 3 colors from a single layer.

Key features

  • Economical tower light delivering two to three signals with one layer
  • Lifetime of over 20,000 hours with high-intensity multi-color LED
  • Available with built-in buzzer; 2 buzzer sound types available on request
  • Customized color arrangements and M12 connector type available

Specifications

Lens diameter Ø56mm
Mount Direct mount
Materials Lens PC, housing ABS, pole Al
Ambient temperature -30 to +60 °C
Protection rating IP44 standard, IP23 buzzer type
Sound volume Max. 90dB at 1m
Flashing rate 60-80/min
Light source current DC12V 240mA, DC24V 210mA, AC110V 50mA, AC220V 25mA
Certifications CE (DC24V)
RoHS Compliant
STC56ML Function: Steady | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.29-0.49kg
STC56ML-BZ Function: Steady with built-in buzzer | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.29-0.49kg
STC56MLF Function: Steady/Flashing | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.29-0.49kg
STC56MLF-BZ Function: Steady/Flashing with built-in buzzer | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.29-0.49kg
STC56MEL Lens height: 40mm (optional) | Colors: 2 or 3
Signal Tower LightsQlight
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight STC56ML Ø56mm Multi-Color LED Steady/Flashing Tower Light, Direct mount

Brand Qlight·Signal Tower Lights

Available part numbers (5)

STC56ML, STC56ML-BZ, STC56MLF, STC56MLF-BZ, STC56MEL

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STC56MLFunction: Steady | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.29-0.49kg
STC56ML-BZFunction: Steady with built-in buzzer | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.29-0.49kg
STC56MLFFunction: Steady/Flashing | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.29-0.49kg
STC56MLF-BZFunction: Steady/Flashing with built-in buzzer | Colors: 2 (R, G) or 3 (R, A, G) | Voltage: DC12V, DC24V, AC110V, AC220V | Weight: 0.29-0.49kg
STC56MELLens height: 40mm (optional) | Colors: 2 or 3
