• Qlight STG50L Ø50mm LED Steady/Flashing Tower Light, Pole mount
1 1

Qlight STG50L Ø50mm LED Steady/Flashing Tower Light, Pole mount

Qlight STG50L Ø50mm LED Steady/Flashing Tower Light, Pole mount

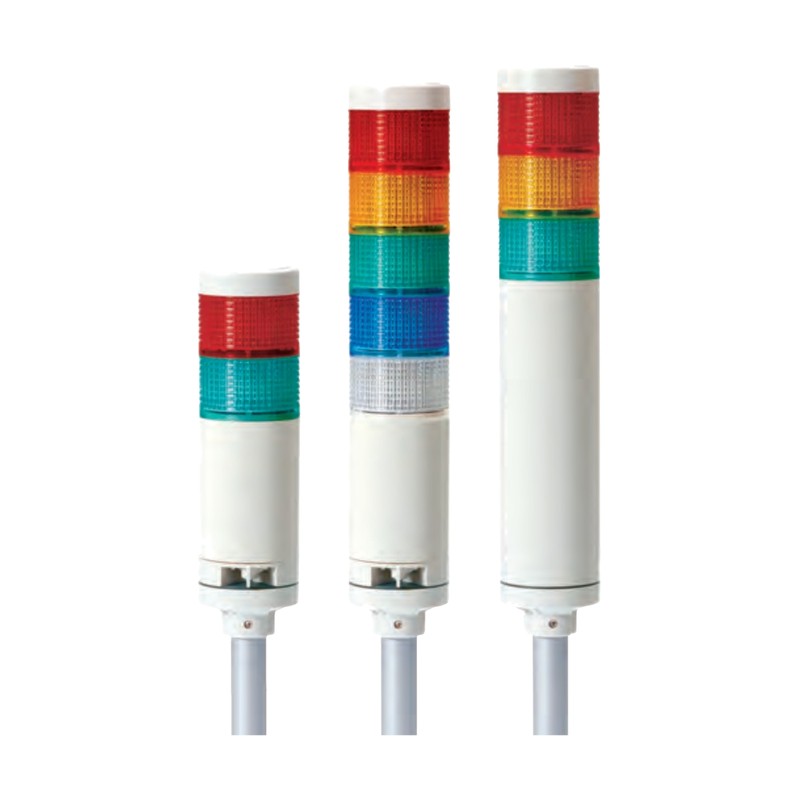

Ø50mm pole mount LED steady/flashing tower light with IP65 protection, 1 to 5 layers.

Key features

  • LED steady/flashing tower light with 1 to 5 layers
  • Vertical contact structure of the lens allows easy assembly and disassembly
  • Standard and built-in buzzer models available; buzzer volume adjustable by lever
  • Transistor connection for direct PLC operation
  • Customized color arrangement available
  • M12 connector type available on request

Specifications

Lens diameter Ø50mm
Mount Pole mount
Materials Lens AS, housing ABS, pole Al
Ambient temperature -30 to +50 °C
Protection rating IP65 standard, IP54 buzzer type
Sound volume Max. 85dB at 1m
Flashing rate 60-80/min
Light source current DC12V 55mA, DC24V 50mA, AC110V-220V max. 40mA
Certifications CE (DC12V, DC24V), UL (DC24V)
RoHS Compliant
STG50L Function: Steady | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STG50L-BZ Function: Steady with built-in buzzer | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STG50LF Function: Steady/Flashing | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STG50LF-BZ Function: Steady/Flashing with built-in buzzer | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
Signal Tower LightsQlight
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight STG50L Ø50mm LED Steady/Flashing Tower Light, Pole mount

Brand Qlight·Signal Tower Lights

Available part numbers (4)

STG50L, STG50L-BZ, STG50LF, STG50LF-BZ

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
STG50LFunction: Steady | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STG50L-BZFunction: Steady with built-in buzzer | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STG50LFFunction: Steady/Flashing | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
STG50LF-BZFunction: Steady/Flashing with built-in buzzer | Layers: 1-5 | Voltage: DC12V, DC24V, AC110V-220V | Colors: R, A, G, B, W | Brackets: LB18, LW18, QZ18, SZ18, QL18, SL18
