• Qlight STND100-N Ø100mm Signal Light with Multifunctional Electric Horn (built-in sounds)
1 1

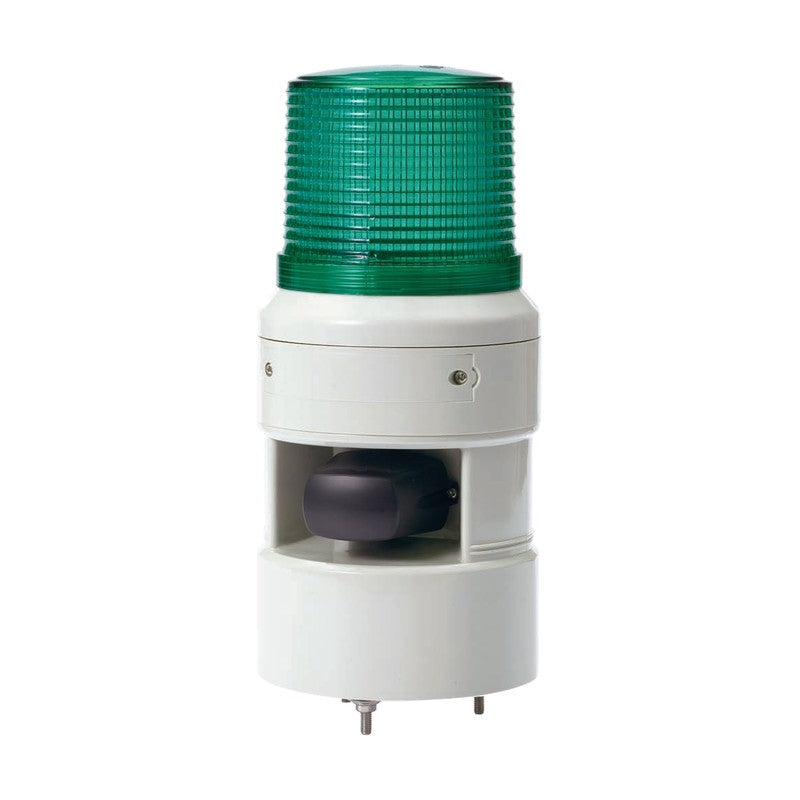

Qlight STND100-N Ø100mm Signal Light with Multifunctional Electric Horn (built-in sounds)

Qlight STND100-N Ø100mm Signal Light with Multifunctional Electric Horn (built-in sounds)

Self-standing Ø100 mm signal light with multifunctional electric horn offering 30 built-in sounds, in LED revolving, LED steady/flashing or bulb revolving versions.

Key features

  • 30 built-in sounds; bit input 5 ch (6 groups) and binary input 30 ch
  • Built-in sounds max. 105 dB at 1 m
  • LED revolving version with LED light collecting system and multifaceted reflector
  • LED steady/flashing version with scattering lens, 60-80 flashes/min

Specifications

Protection rating IP54
Materials Lens AS, housing ABS, reflector heat-resistant ABS
Colors R-Red, A-Amber, G-Green, B-Blue
Lens Ø101mm
Body diameter Ø119mm
Height 261mm
Compliance RoHS
Qlight STND100-N Ø100mm Signal Light with Multifunctional Electric Horn (built-in sounds) - reference 2
STND100LR-N Light source: LED revolving 120-140 RPM | Voltage: DC12V (650mA), DC24V (450mA), AC110V-220V | Ambient temperature: -20 to +50 °C
STND100L-N Light source: LED steady/flashing | Voltage: DC12V-24V, AC110V-220V | Ambient temperature: -30 to +50 °C
STND100R-N Light source: Bulb revolving 10W T16x35 15S, 120-140 RPM | Voltage: DC12V (1.2A), DC24V (865mA), AC110V-220V | Ambient temperature: -20 to +50 °C
Sounder BeaconsQlight
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Qlight STND100-N Ø100mm Signal Light with Multifunctional Electric Horn (built-in sounds)

Brand Qlight·Sounder Beacons

Available part numbers (3)

STND100LR-N, STND100L-N, STND100R-N

How to order

Send the Qlight part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Qlight STND100-N Ø100mm Signal Light with Multifunctional Electric Horn (built-in sounds) - reference 2
0 selected
RFQ List (0)
Product codeSpec
STND100LR-NLight source: LED revolving 120-140 RPM | Voltage: DC12V (650mA), DC24V (450mA), AC110V-220V | Ambient temperature: -20 to +50 °C
STND100L-NLight source: LED steady/flashing | Voltage: DC12V-24V, AC110V-220V | Ambient temperature: -30 to +50 °C
STND100R-NLight source: Bulb revolving 10W T16x35 15S, 120-140 RPM | Voltage: DC12V (1.2A), DC24V (865mA), AC110V-220V | Ambient temperature: -20 to +50 °C
