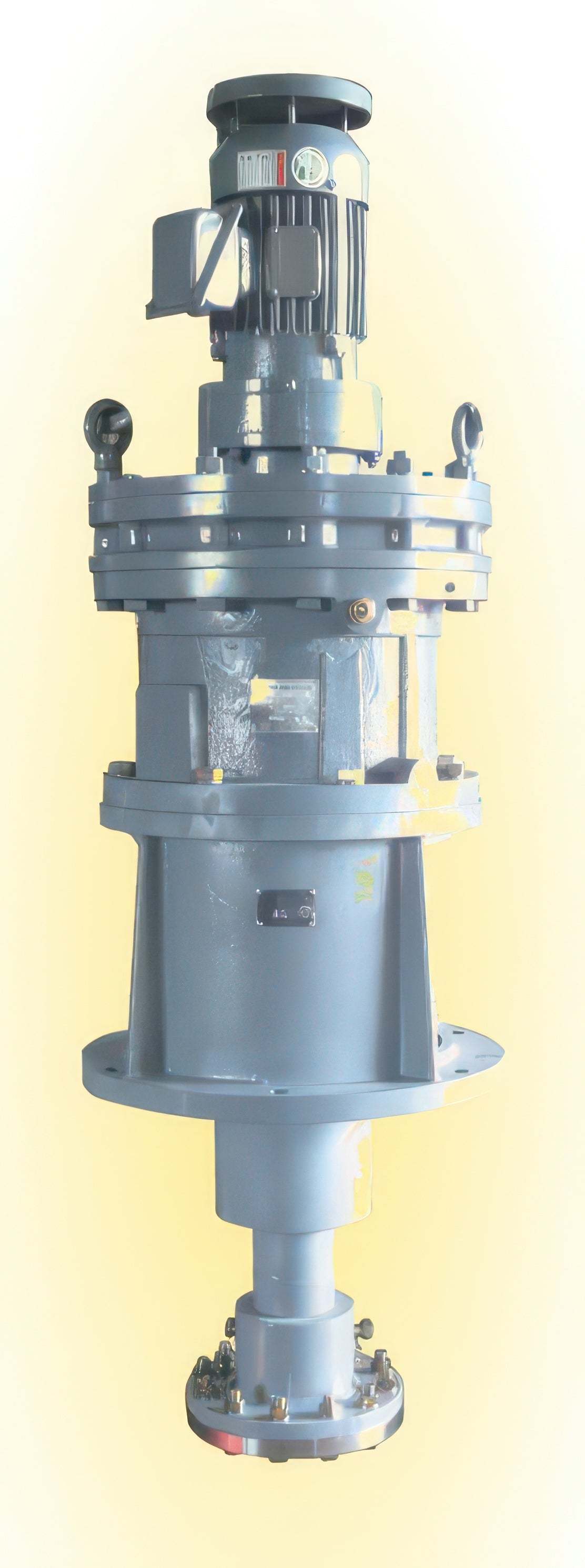

Samyang Motor Clarifier Drive Cyclo Reducer MMCV3R Series (for 2-25 m Settling Tanks)

Samyang Motor Clarifier Drive Cyclo Reducer MMCV3R Series (for 2-25 m Settling Tanks)

Vertical multi-stage cyclo reducer drive for sludge scrapers in settling (clarifier) tanks and thickeners of 2 to 25 m diameter, mainly in waste water treatment.

Key features

  • A shear pin in the coupling protects the reducer by interrupting power transmission on overload
  • A torque-limiter version (MMCV3R-T/L) cuts the motor power on overload
  • Rated output torque from 130 to 1,270 kgf-m

Specifications

Overload Protection shear pin (torque limiter version available)
MMCV3R-03 Output Torque (kgf-m): 130 | A (mm): 430 | B (mm): 165 | C (mm): 250 | Flange PCD D (mm): 240 | Flange OD E (mm): 280 | Bolt Holes F (qty): 4 | Bolt Hole Dia. G (mm): 12 | J: 3 | Overload Protection: shear pin (torque limiter version available)
MMCV3R-05 Output Torque (kgf-m): 160 | A (mm): 550 | B (mm): 200 | C (mm): 250 | Flange PCD D (mm): 280 | Flange OD E (mm): 330 | Bolt Holes F (qty): 4 | Bolt Hole Dia. G (mm): 14 | J: 3 | Overload Protection: shear pin (torque limiter version available)
MMCV3R-10 Output Torque (kgf-m): 270 | A (mm): 615 | B (mm): 235 | C (mm): 300 | Flange PCD D (mm): 350 | Flange OD E (mm): 400 | Bolt Holes F (qty): 4 | Bolt Hole Dia. G (mm): 19 | J: 4 | Overload Protection: shear pin (torque limiter version available)
MMCV3R-15 Output Torque (kgf-m): 430 | A (mm): 660 | B (mm): 250 | C (mm): 300 | Flange PCD D (mm): 400 | Flange OD E (mm): 450 | Bolt Holes F (qty): 6 | Bolt Hole Dia. G (mm): 19 | J: 5 | Overload Protection: shear pin (torque limiter version available)
MMCV3R-20 Output Torque (kgf-m): 650 | A (mm): 780 | B (mm): 270 | C (mm): 300 | Flange PCD D (mm): 420 | Flange OD E (mm): 470 | Bolt Holes F (qty): 6 | Bolt Hole Dia. G (mm): 19 | J: 6 | Overload Protection: shear pin (torque limiter version available)
MMCV3R-30 Output Torque (kgf-m): 930 | A (mm): 820 | B (mm): 340 | C (mm): 450 | Flange PCD D (mm): 500 | Flange OD E (mm): 550 | Bolt Holes F (qty): 6 | Bolt Hole Dia. G (mm): 23 | J: 6 | Overload Protection: shear pin (torque limiter version available)
MMCV3R-50 Output Torque (kgf-m): 1,270 | A (mm): 918 | B (mm): 340 | C (mm): 450 | Flange PCD D (mm): 500 | Flange OD E (mm): 550 | Bolt Holes F (qty): 6 | Bolt Hole Dia. G (mm): 23 | J: 8 | Overload Protection: shear pin (torque limiter version available)
Cycloidal Gear ReducersSamyang Motor
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samyang Motor Clarifier Drive Cyclo Reducer MMCV3R Series (for 2-25 m Settling Tanks)

Brand Samyang Motor·Cycloidal Gear Reducers

Available part numbers (7)

MMCV3R-03, MMCV3R-05, MMCV3R-10, MMCV3R-15, MMCV3R-20, MMCV3R-30, MMCV3R-50

How to order

Send the Samyang Motor part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MMCV3R-03Output Torque (kgf-m): 130 | A (mm): 430 | B (mm): 165 | C (mm): 250 | Flange PCD D (mm): 240 | Flange OD E (mm): 280 | Bolt Holes F (qty): 4 | Bolt Hole Dia. G (mm): 12 | J: 3 | Overload Protection: shear pin (torque limiter version available)
MMCV3R-05Output Torque (kgf-m): 160 | A (mm): 550 | B (mm): 200 | C (mm): 250 | Flange PCD D (mm): 280 | Flange OD E (mm): 330 | Bolt Holes F (qty): 4 | Bolt Hole Dia. G (mm): 14 | J: 3 | Overload Protection: shear pin (torque limiter version available)
MMCV3R-10Output Torque (kgf-m): 270 | A (mm): 615 | B (mm): 235 | C (mm): 300 | Flange PCD D (mm): 350 | Flange OD E (mm): 400 | Bolt Holes F (qty): 4 | Bolt Hole Dia. G (mm): 19 | J: 4 | Overload Protection: shear pin (torque limiter version available)
MMCV3R-15Output Torque (kgf-m): 430 | A (mm): 660 | B (mm): 250 | C (mm): 300 | Flange PCD D (mm): 400 | Flange OD E (mm): 450 | Bolt Holes F (qty): 6 | Bolt Hole Dia. G (mm): 19 | J: 5 | Overload Protection: shear pin (torque limiter version available)
MMCV3R-20Output Torque (kgf-m): 650 | A (mm): 780 | B (mm): 270 | C (mm): 300 | Flange PCD D (mm): 420 | Flange OD E (mm): 470 | Bolt Holes F (qty): 6 | Bolt Hole Dia. G (mm): 19 | J: 6 | Overload Protection: shear pin (torque limiter version available)
MMCV3R-30Output Torque (kgf-m): 930 | A (mm): 820 | B (mm): 340 | C (mm): 450 | Flange PCD D (mm): 500 | Flange OD E (mm): 550 | Bolt Holes F (qty): 6 | Bolt Hole Dia. G (mm): 23 | J: 6 | Overload Protection: shear pin (torque limiter version available)
MMCV3R-50Output Torque (kgf-m): 1,270 | A (mm): 918 | B (mm): 340 | C (mm): 450 | Flange PCD D (mm): 500 | Flange OD E (mm): 550 | Bolt Holes F (qty): 6 | Bolt Hole Dia. G (mm): 23 | J: 8 | Overload Protection: shear pin (torque limiter version available)

Need a different model, or a part not listed here? Send us your parts list →
