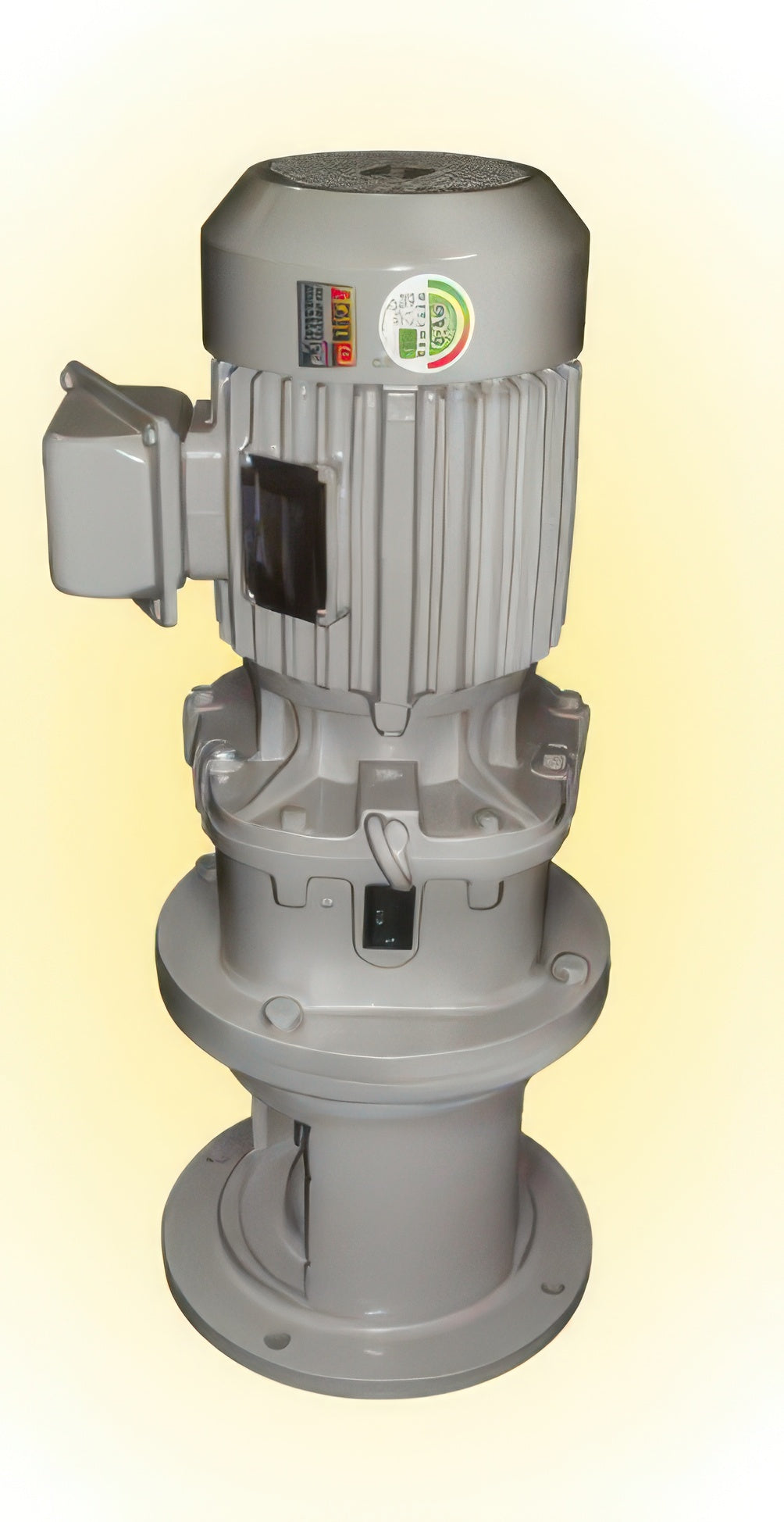

Samyang Motor Flange Type Medium-Speed Agitator MMGH Series

Samyang Motor Flange Type Medium-Speed Agitator MMGH Series

Fixed flange-mounted medium-speed agitator with geared motor, mixing shaft and impeller, for small to medium tanks.

Key features

  • Suitable for medium-viscosity liquids and works even when the liquid level varies; a wide choice of output speeds (350 to 60 rpm) suits general mixing duty
  • Supplied with hollow-shaft or flange-coupling drive and a choice of impellers (propeller, pitched paddle, turbine, anchor, ribbon)
  • Standardized geared motors keep cost low and delivery fast

Specifications

Output Speed (rpm) 350 - 60
Samyang Motor Flange Type Medium-Speed Agitator MMGH Series reference 2
MMGH-005 Motor (kW): 0.4 | Output Speed (rpm): 350 - 60 | Shaft Length L (mm): 1000 - 1200 | Shaft Dia. d (mm): 20 - 22 | Impeller Dia. D (mm): 200 - 250 | A (mm): 276 | B (mm): 100 | C (mm): 376 | Max Capacity at 100 cP (L): 1,800 | Max Capacity at 2500 cP (L): 700 | Weight approx. (kg): 20
MMGH-010 Motor (kW): 0.75 | Output Speed (rpm): 350 - 60 | Shaft Length L (mm): 1,000 - 1,700 | Shaft Dia. d (mm): 20 - 28 | Impeller Dia. D (mm): 200 - 700 | A (mm): 335 | B (mm): 180 | C (mm): 515 | Flange PCD / OD (mm): 210 / 240 | Max Capacity at 100 cP (L): 5,000 | Max Capacity at 2500 cP (L): 2,500 | Weight approx. (kg): 46
MMGH-020 Motor (kW): 1.5 | Output Speed (rpm): 350 - 60 | Shaft Length L (mm): 1,000 - 2,300 | Shaft Dia. d (mm): 28 - 35 | Impeller Dia. D (mm): 300 - 800 | A (mm): 394 | B (mm): 217 | C (mm): 611 | Flange PCD / OD (mm): 240 / 270 | Max Capacity at 100 cP (L): 10,000 | Max Capacity at 2500 cP (L): 5,000 | Weight approx. (kg): 63
MMGH-030 Motor (kW): 2.2 | Output Speed (rpm): 350 - 60 | Shaft Length L (mm): 1,000 - 2,500 | Shaft Dia. d (mm): 35 - 45 | Impeller Dia. D (mm): 400 - 900 | A (mm): 429 | B (mm): 250 | C (mm): 736 | Flange PCD / OD (mm): 265 / 300 | Max Capacity at 100 cP (L): 15,000 | Max Capacity at 2500 cP (L): 7,500 | Weight approx. (kg): 115
MMGH-050 Motor (kW): 3.75 | Output Speed (rpm): 350 - 60 | Shaft Length L (mm): 1,000 - 3,000 | Shaft Dia. d (mm): 40 - 50 | Impeller Dia. D (mm): 500 - 1000 | A (mm): 454 | B (mm): 250 | C (mm): 954 | Flange PCD / OD (mm): 265 / 300 | Max Capacity at 100 cP (L): 25,000 | Max Capacity at 2500 cP (L): 12,000 | Weight approx. (kg): 122
AgitatorsSamyang Motor
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samyang Motor Flange Type Medium-Speed Agitator MMGH Series

Brand Samyang Motor·Agitators

Available part numbers (5)

MMGH-005, MMGH-010, MMGH-020, MMGH-030, MMGH-050

How to order

Send the Samyang Motor part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
