Samyang Motor Portable Medium-Speed Agitator MMPA Series (Clamp Mount)

Samyang Motor Portable Medium-Speed Agitator MMPA Series (Clamp Mount)

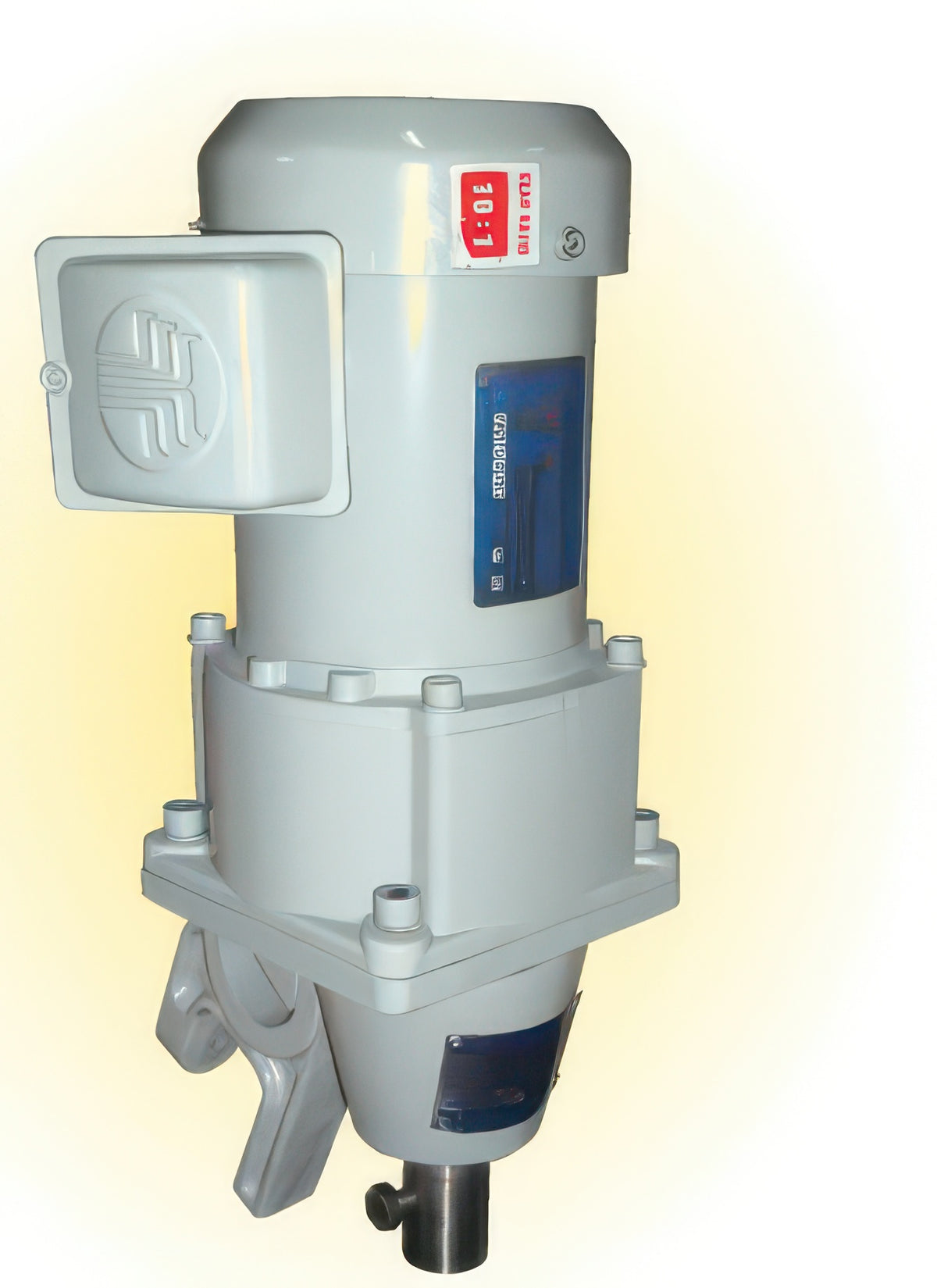

Portable clamp-mounted medium-speed agitator with geared motor, mixing shaft and impeller.

Key features

  • Small and light, it is easy to fit to and remove from the rim of a tank, and the mounting angle can be adjusted
  • Suitable for mixing, dissolving and reactions of liquids with different specific gravities in short batch processes
  • Output speed 350 to 60 rpm

Specifications

Output Speed (rpm) 350 - 60
MMPA-005 Motor (kW): 0.4 | Output Speed (rpm): 350 - 60 | Shaft Length L max (mm): 1000 | Shaft Dia. d (mm): 22 | Impeller Dia. D (mm): 200 - 250 | A (mm): 276 | B (mm): 100 | C (mm): 376 | Max Capacity at 100 cP (L): 1,800 | Max Capacity at 2500 cP (L): 700 | Weight approx. (kg): 22
MMPA-010 Motor (kW): 0.75 | Output Speed (rpm): 350 - 60 | Shaft Length L max (mm): 1200 | Shaft Dia. d (mm): 22 - 25 | Impeller Dia. D (mm): 200 - 400 | A (mm): 335 | B (mm): 150 | C (mm): 485 | Max Capacity at 100 cP (L): 3,500 | Max Capacity at 2500 cP (L): 1,300 | Weight approx. (kg): 32.5
AgitatorsSamyang Motor
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samyang Motor Portable Medium-Speed Agitator MMPA Series (Clamp Mount)

Brand Samyang Motor·Agitators

Available part numbers (2)

MMPA-005, MMPA-010

How to order

Send the Samyang Motor part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MMPA-005Motor (kW): 0.4 | Output Speed (rpm): 350 - 60 | Shaft Length L max (mm): 1000 | Shaft Dia. d (mm): 22 | Impeller Dia. D (mm): 200 - 250 | A (mm): 276 | B (mm): 100 | C (mm): 376 | Max Capacity at 100 cP (L): 1,800 | Max Capacity at 2500 cP (L): 700 | Weight approx. (kg): 22
MMPA-010Motor (kW): 0.75 | Output Speed (rpm): 350 - 60 | Shaft Length L max (mm): 1200 | Shaft Dia. d (mm): 22 - 25 | Impeller Dia. D (mm): 200 - 400 | A (mm): 335 | B (mm): 150 | C (mm): 485 | Max Capacity at 100 cP (L): 3,500 | Max Capacity at 2500 cP (L): 1,300 | Weight approx. (kg): 32.5
