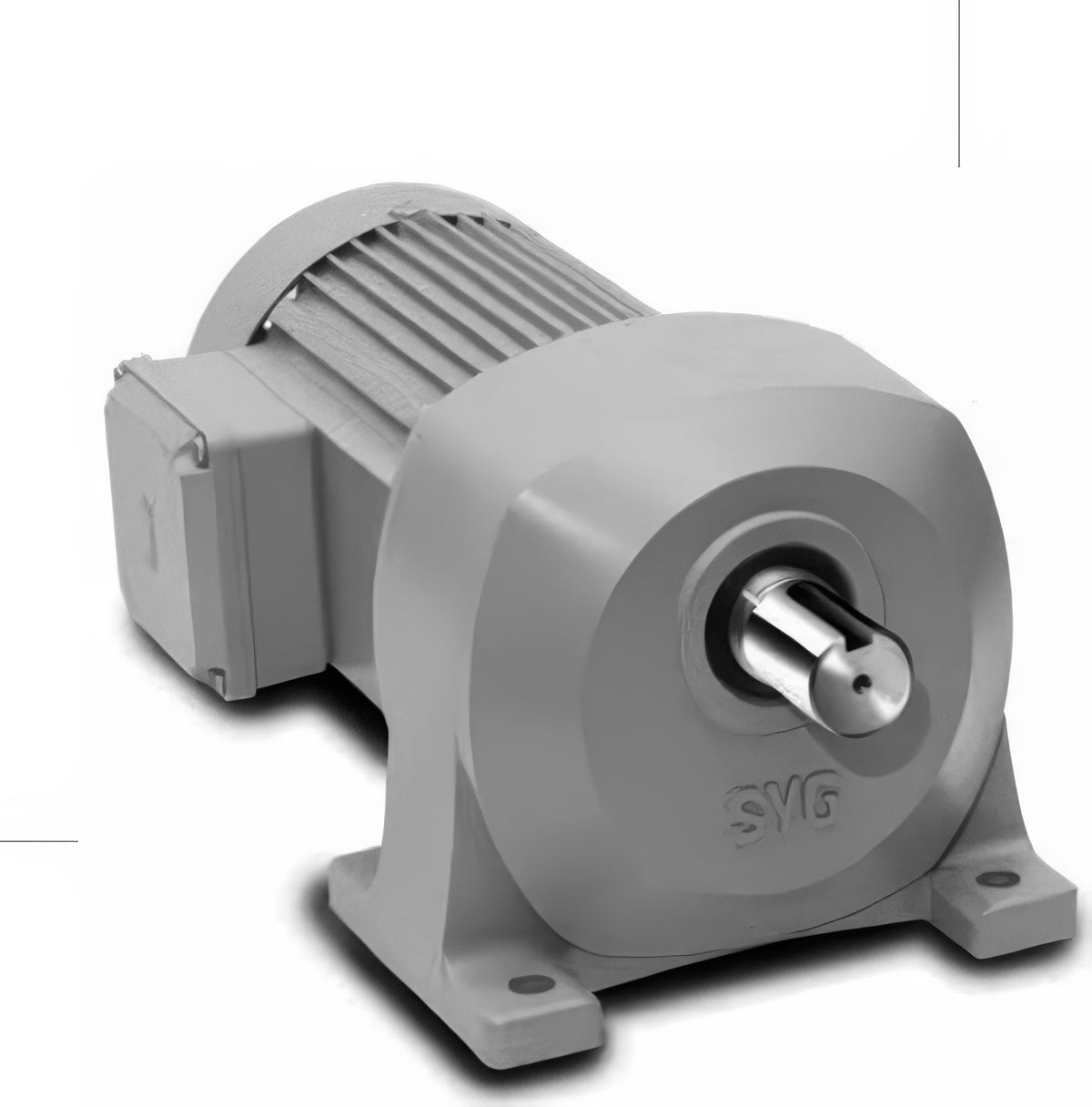

Samyang Reducer MAX II Geared Motor (Horizontal, Vertical and Line Power, 0.1–3.7 kW)

Samyang Reducer MAX II Geared Motor (Horizontal, Vertical and Line Power, 0.1–3.7 kW)

Second-generation MAX helical geared motor in horizontal, vertical and line-power (motor-flange input) versions.

Key features

  • Frame sizes 75 to 172 cover 0.1 kW (1/8 HP) to 3.7 kW (5 HP) with gear ratios from 1/5 to 1/200
  • Modular, standardized parts allow short lead times, and precision gear shaving keeps noise low
  • Single-phase motors are available for 0.2–1.5 kW frames

Specifications

Series MAX II geared motor
Input speed (rpm) 1800
MAX II 75 HORIZONTAL Series: MAX II geared motor | Mounting: Horizontal | Frame size: 75 | Motor output (kW): 0.1 | Phase: 3-phase | Gear ratio range: 1/5–1/75 | Input speed (rpm): 1800
MAX II 88 HORIZONTAL Series: MAX II geared motor | Mounting: Horizontal | Frame size: 88 | Motor output (kW): 0.1, 0.2, 0.4 | Phase: 3-phase / 1-phase | Gear ratio range: 1/5–1/200 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 105 HORIZONTAL Series: MAX II geared motor | Mounting: Horizontal | Frame size: 105 | Motor output (kW): 0.2, 0.4, 0.75 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 135 HORIZONTAL Series: MAX II geared motor | Mounting: Horizontal | Frame size: 135 | Motor output (kW): 0.4, 0.75, 1.5 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 153 HORIZONTAL Series: MAX II geared motor | Mounting: Horizontal | Frame size: 153 | Motor output (kW): 0.75, 1.5, 2.2 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 172 HORIZONTAL Series: MAX II geared motor | Mounting: Horizontal | Frame size: 172 | Motor output (kW): 1.5, 2.2, 3.7 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 75 VERTICAL Series: MAX II geared motor | Mounting: Vertical | Frame size: 75 | Motor output (kW): 0.1 | Phase: 3-phase | Gear ratio range: 1/5–1/75 | Input speed (rpm): 1800
MAX II 88 VERTICAL Series: MAX II geared motor | Mounting: Vertical | Frame size: 88 | Motor output (kW): 0.1, 0.2, 0.4 | Phase: 3-phase / 1-phase | Gear ratio range: 1/5–1/200 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 105 VERTICAL Series: MAX II geared motor | Mounting: Vertical | Frame size: 105 | Motor output (kW): 0.2, 0.4, 0.75 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 135 VERTICAL Series: MAX II geared motor | Mounting: Vertical | Frame size: 135 | Motor output (kW): 0.4, 0.75, 1.5 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 153 VERTICAL Series: MAX II geared motor | Mounting: Vertical | Frame size: 153 | Motor output (kW): 0.75, 1.5, 2.2 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 172 VERTICAL Series: MAX II geared motor | Mounting: Vertical | Frame size: 172 | Motor output (kW): 1.5, 2.2, 3.7 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 88 LINE POWER Series: MAX II geared motor | Mounting: Line power (motor-flange input, no motor) | Frame size: 88 | Motor output (kW): 0.2, 0.4 | Gear ratio range: 1/5–1/200 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 105 LINE POWER Series: MAX II geared motor | Mounting: Line power (motor-flange input, no motor) | Frame size: 105 | Motor output (kW): 0.2, 0.4, 0.75 | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 135 LINE POWER Series: MAX II geared motor | Mounting: Line power (motor-flange input, no motor) | Frame size: 135 | Motor output (kW): 0.4, 0.75, 1.5 | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 153 LINE POWER Series: MAX II geared motor | Mounting: Line power (motor-flange input, no motor) | Frame size: 153 | Motor output (kW): 0.75, 1.5, 2.2 | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 172 LINE POWER Series: MAX II geared motor | Mounting: Line power (motor-flange input, no motor) | Frame size: 172 | Motor output (kW): 1.5, 2.2, 3.7 | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
Geared MotorsSamyang Reducer
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samyang Reducer MAX II Geared Motor (Horizontal, Vertical and Line Power, 0.1–3.7 kW)

Brand Samyang Reducer·Geared Motors

Available part numbers (17)

MAX II 75 HORIZONTAL, MAX II 88 HORIZONTAL, MAX II 105 HORIZONTAL, MAX II 135 HORIZONTAL, MAX II 153 HORIZONTAL, MAX II 172 HORIZONTAL, MAX II 75 VERTICAL, MAX II 88 VERTICAL, MAX II 105 VERTICAL, MAX II 135 VERTICAL + 7 more — see full table ↓

How to order

Send the Samyang Reducer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MAX II 75 HORIZONTALSeries: MAX II geared motor | Mounting: Horizontal | Frame size: 75 | Motor output (kW): 0.1 | Phase: 3-phase | Gear ratio range: 1/5–1/75 | Input speed (rpm): 1800
MAX II 88 HORIZONTALSeries: MAX II geared motor | Mounting: Horizontal | Frame size: 88 | Motor output (kW): 0.1, 0.2, 0.4 | Phase: 3-phase / 1-phase | Gear ratio range: 1/5–1/200 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 105 HORIZONTALSeries: MAX II geared motor | Mounting: Horizontal | Frame size: 105 | Motor output (kW): 0.2, 0.4, 0.75 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 135 HORIZONTALSeries: MAX II geared motor | Mounting: Horizontal | Frame size: 135 | Motor output (kW): 0.4, 0.75, 1.5 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 153 HORIZONTALSeries: MAX II geared motor | Mounting: Horizontal | Frame size: 153 | Motor output (kW): 0.75, 1.5, 2.2 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 172 HORIZONTALSeries: MAX II geared motor | Mounting: Horizontal | Frame size: 172 | Motor output (kW): 1.5, 2.2, 3.7 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 75 VERTICALSeries: MAX II geared motor | Mounting: Vertical | Frame size: 75 | Motor output (kW): 0.1 | Phase: 3-phase | Gear ratio range: 1/5–1/75 | Input speed (rpm): 1800
MAX II 88 VERTICALSeries: MAX II geared motor | Mounting: Vertical | Frame size: 88 | Motor output (kW): 0.1, 0.2, 0.4 | Phase: 3-phase / 1-phase | Gear ratio range: 1/5–1/200 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 105 VERTICALSeries: MAX II geared motor | Mounting: Vertical | Frame size: 105 | Motor output (kW): 0.2, 0.4, 0.75 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 135 VERTICALSeries: MAX II geared motor | Mounting: Vertical | Frame size: 135 | Motor output (kW): 0.4, 0.75, 1.5 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 153 VERTICALSeries: MAX II geared motor | Mounting: Vertical | Frame size: 153 | Motor output (kW): 0.75, 1.5, 2.2 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 172 VERTICALSeries: MAX II geared motor | Mounting: Vertical | Frame size: 172 | Motor output (kW): 1.5, 2.2, 3.7 | Phase: 3-phase / 1-phase | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 88 LINE POWERSeries: MAX II geared motor | Mounting: Line power (motor-flange input, no motor) | Frame size: 88 | Motor output (kW): 0.2, 0.4 | Gear ratio range: 1/5–1/200 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 105 LINE POWERSeries: MAX II geared motor | Mounting: Line power (motor-flange input, no motor) | Frame size: 105 | Motor output (kW): 0.2, 0.4, 0.75 | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 135 LINE POWERSeries: MAX II geared motor | Mounting: Line power (motor-flange input, no motor) | Frame size: 135 | Motor output (kW): 0.4, 0.75, 1.5 | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 153 LINE POWERSeries: MAX II geared motor | Mounting: Line power (motor-flange input, no motor) | Frame size: 153 | Motor output (kW): 0.75, 1.5, 2.2 | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
MAX II 172 LINE POWERSeries: MAX II geared motor | Mounting: Line power (motor-flange input, no motor) | Frame size: 172 | Motor output (kW): 1.5, 2.2, 3.7 | Gear ratio range: 1/90–1/200 ; 1/40–1/75 ; 1/5–1/30 | Input speed (rpm): 1800
