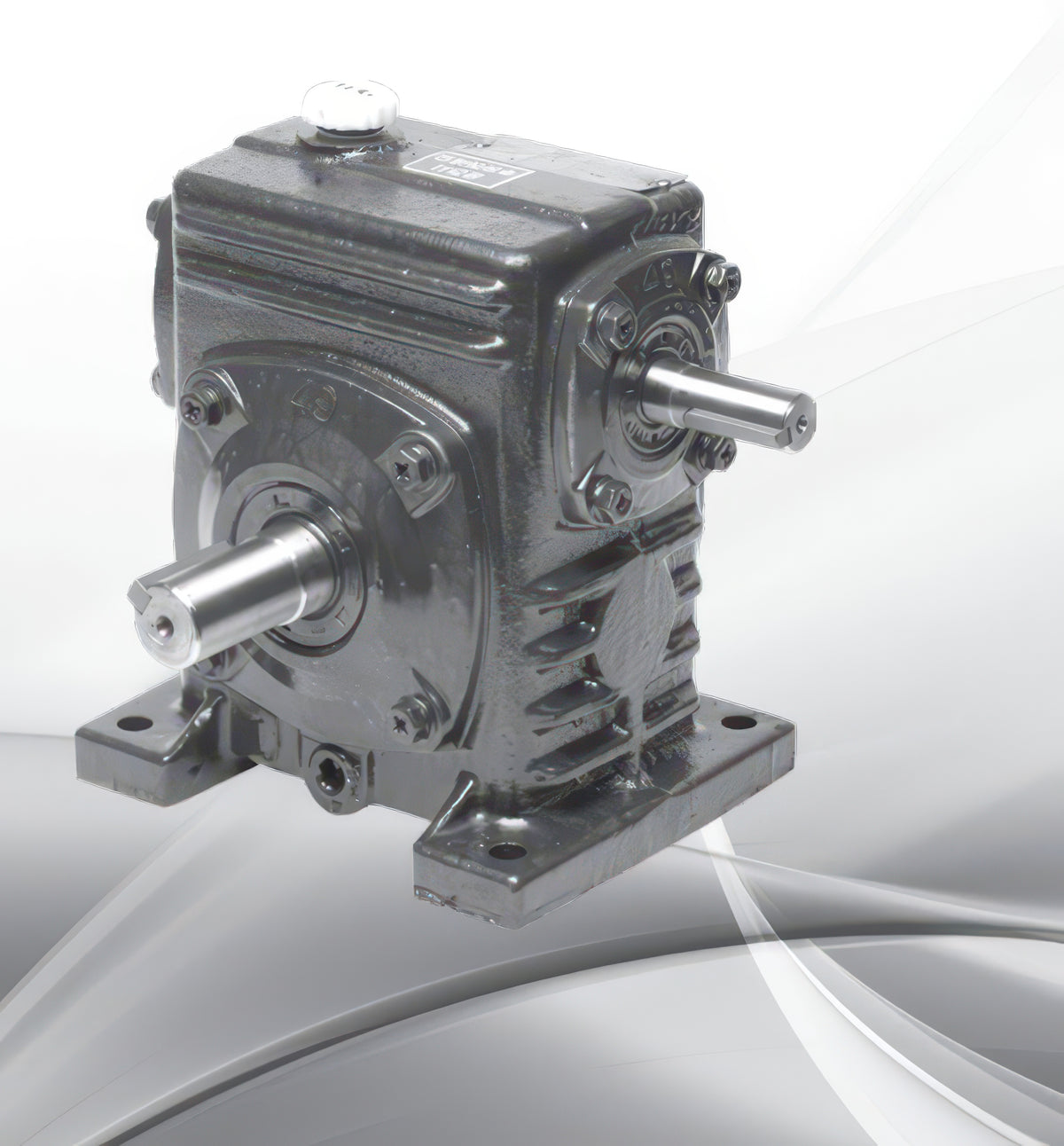

Samyang Reducer STD Worm Reducer SW Series (SY-U, SY-B, SY-V, SY-DH, SY-DV, Frames 33–140)

Samyang Reducer STD Worm Reducer SW Series (SY-U, SY-B, SY-V, SY-DH, SY-DV, Frames 33–140)

Standard cast-iron worm reducer with solid shafts in single-stage U, B and V housings and double-stage horizontal (DH) and vertical (DV) housings.

Key features

  • Single-stage frames 33 to 140 cover ratios 1/10 to 1/60; double-stage frames 60 to 140 cover 1/200 to 1/600 (duty table to 1/900)
  • Rated input power ranges from 0.08 kW to about 13 kW at 1800 rpm
  • Six shaft arrangements and rotation directions (A–F) are available
U-33 Type: SY-U single worm, horizontal U type | Frame: 33 | Gear ratio: 1/10–1/50 | Rated input power @1/10 (kW): 0.36 | Dim. A (mm): 138.5 | Dim. AB (mm): 85 | Dim. B (mm): 120 | Input shaft dia. U (mm): 12 | Output shaft dia. S (mm): 15
U-49 Type: SY-U single worm, horizontal U type | Frame: 49 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 1.07 | Rated input power @1/60 (kW): 0.23 | Dim. A (mm): 191 | Dim. AB (mm): 117 | Dim. B (mm): 172 | Input shaft dia. U (mm): 16 | Output shaft dia. S (mm): 23
U-60 Type: SY-U single worm, horizontal U type | Frame: 60 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 1.74 | Rated input power @1/60 (kW): 0.48 | Dim. A (mm): 237 | Dim. AB (mm): 139 | Dim. B (mm): 190 | Input shaft dia. U (mm): 18 | Output shaft dia. S (mm): 28
U-77 Type: SY-U single worm, horizontal U type | Frame: 77 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 3 | Rated input power @1/60 (kW): 0.75 | Dim. A (mm): 248 | Dim. AB (mm): 152 | Dim. B (mm): 209 | Input shaft dia. U (mm): 23 | Output shaft dia. S (mm): 30
U-88 Type: SY-U single worm, horizontal U type | Frame: 88 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 3.75 | Rated input power @1/60 (kW): 0.94 | Dim. A (mm): 303 | Dim. AB (mm): 180 | Dim. B (mm): 227 | Input shaft dia. U (mm): 28 | Output shaft dia. S (mm): 35
U-96 Type: SY-U single worm, horizontal U type | Frame: 96 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 5.63 | Rated input power @1/60 (kW): 1.13 | Dim. A (mm): 340 | Dim. AB (mm): 200 | Dim. B (mm): 269 | Input shaft dia. U (mm): 28 | Output shaft dia. S (mm): 38
U-120 Type: SY-U single worm, horizontal U type | Frame: 120 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 9.38 | Rated input power @1/60 (kW): 2.25 | Dim. A (mm): 385 | Dim. AB (mm): 225 | Dim. B (mm): 270 | Input shaft dia. U (mm): 32 | Output shaft dia. S (mm): 43
U-125 Type: SY-U single worm, horizontal U type | Frame: 125 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 7.5 | Rated input power @1/60 (kW): 2.25 | Dim. A (mm): 406 | Dim. AB (mm): 241 | Dim. B (mm): 287 | Input shaft dia. U (mm): 35 | Output shaft dia. S (mm): 50
U-140 Type: SY-U single worm, horizontal U type | Frame: 140 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 13.13 | Rated input power @1/60 (kW): 3 | Dim. A (mm): 456 | Dim. AB (mm): 270 | Dim. B (mm): 320 | Input shaft dia. U (mm): 38 | Output shaft dia. S (mm): 60
B-49 Type: SY-B single worm, horizontal B type | Frame: 49 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 1.07 | Rated input power @1/60 (kW): 0.23 | Dim. A (mm): 191 | Dim. AB (mm): 117 | Dim. B (mm): 172 | Input shaft dia. U (mm): 16 | Output shaft dia. S (mm): 23
B-60 Type: SY-B single worm, horizontal B type | Frame: 60 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 1.74 | Rated input power @1/60 (kW): 0.48 | Dim. A (mm): 227 | Dim. AB (mm): 139 | Dim. B (mm): 190 | Input shaft dia. U (mm): 18 | Output shaft dia. S (mm): 28
B-77 Type: SY-B single worm, horizontal B type | Frame: 77 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 3 | Rated input power @1/60 (kW): 0.75 | Dim. A (mm): 248 | Dim. AB (mm): 152 | Dim. B (mm): 209 | Input shaft dia. U (mm): 23 | Output shaft dia. S (mm): 30
B-88 Type: SY-B single worm, horizontal B type | Frame: 88 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 3.75 | Rated input power @1/60 (kW): 0.94 | Dim. A (mm): 303 | Dim. AB (mm): 180 | Dim. B (mm): 227 | Input shaft dia. U (mm): 28 | Output shaft dia. S (mm): 35
B-96 Type: SY-B single worm, horizontal B type | Frame: 96 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 5.63 | Rated input power @1/60 (kW): 1.13 | Dim. A (mm): 340 | Dim. AB (mm): 200 | Dim. B (mm): 269 | Input shaft dia. U (mm): 28 | Output shaft dia. S (mm): 38
B-120 Type: SY-B single worm, horizontal B type | Frame: 120 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 9.38 | Rated input power @1/60 (kW): 2.25 | Dim. A (mm): 385 | Dim. AB (mm): 225 | Dim. B (mm): 270 | Input shaft dia. U (mm): 32 | Output shaft dia. S (mm): 43
B-125 Type: SY-B single worm, horizontal B type | Frame: 125 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 7.5 | Rated input power @1/60 (kW): 2.25 | Dim. A (mm): 406 | Dim. AB (mm): 241 | Dim. B (mm): 287 | Input shaft dia. U (mm): 35 | Output shaft dia. S (mm): 50
B-140 Type: SY-B single worm, horizontal B type | Frame: 140 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 13.13 | Rated input power @1/60 (kW): 3 | Dim. A (mm): 456 | Dim. AB (mm): 270 | Dim. B (mm): 320 | Input shaft dia. U (mm): 38 | Output shaft dia. S (mm): 60
V-49 Type: SY-V single worm, vertical type | Frame: 49 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 1.07 | Rated input power @1/60 (kW): 0.23 | Dim. A (mm): 191 | Dim. AB (mm): 117 | Dim. B (mm): 177 | Input shaft dia. U (mm): 16 | Output shaft dia. S (mm): 23
V-60 Type: SY-V single worm, vertical type | Frame: 60 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 1.74 | Rated input power @1/60 (kW): 0.48 | Dim. A (mm): 227 | Dim. AB (mm): 139 | Dim. B (mm): 192 | Input shaft dia. U (mm): 18 | Output shaft dia. S (mm): 28
V-77 Type: SY-V single worm, vertical type | Frame: 77 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 3 | Rated input power @1/60 (kW): 0.75 | Dim. A (mm): 256 | Dim. AB (mm): 152 | Dim. B (mm): 209 | Input shaft dia. U (mm): 23 | Output shaft dia. S (mm): 30
V-88 Type: SY-V single worm, vertical type | Frame: 88 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 3.75 | Rated input power @1/60 (kW): 0.94 | Dim. A (mm): 303 | Dim. AB (mm): 180 | Dim. B (mm): 231 | Input shaft dia. U (mm): 28 | Output shaft dia. S (mm): 35
V-96 Type: SY-V single worm, vertical type | Frame: 96 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 5.63 | Rated input power @1/60 (kW): 1.13 | Dim. A (mm): 340 | Dim. AB (mm): 200 | Dim. B (mm): 258 | Input shaft dia. U (mm): 28 | Output shaft dia. S (mm): 38
V-120 Type: SY-V single worm, vertical type | Frame: 120 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 9.38 | Rated input power @1/60 (kW): 2.25 | Dim. A (mm): 385 | Dim. AB (mm): 225 | Dim. B (mm): 271 | Input shaft dia. U (mm): 32 | Output shaft dia. S (mm): 43
V-125 Type: SY-V single worm, vertical type | Frame: 125 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 7.5 | Rated input power @1/60 (kW): 2.25 | Dim. A (mm): 389.5 | Dim. AB (mm): 225 | Dim. B (mm): 309 | Input shaft dia. U (mm): 35 | Output shaft dia. S (mm): 50
V-140 Type: SY-V single worm, vertical type | Frame: 140 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 13.13 | Rated input power @1/60 (kW): 3 | Dim. A (mm): 455 | Dim. AB (mm): 270 | Dim. B (mm): 318 | Input shaft dia. U (mm): 38 | Output shaft dia. S (mm): 60
DH-60 Type: SY-DH double worm, horizontal | Frame: 60 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.24 | Rated input power @1/900 (kW): 0.08 | Dim. A (mm): 275 | Dim. AB (mm): 126 | Dim. B (mm): 238 | Input shaft dia. U (mm): 16 | Output shaft dia. S (mm): 28
DH-77 Type: SY-DH double worm, horizontal | Frame: 77 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.47 | Rated input power @1/900 (kW): 0.16 | Dim. A (mm): 291 | Dim. AB (mm): 134 | Dim. B (mm): 253 | Input shaft dia. U (mm): 18 | Output shaft dia. S (mm): 30
DH-88 Type: SY-DH double worm, horizontal | Frame: 88 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.67 | Rated input power @1/900 (kW): 0.22 | Dim. A (mm): 336 | Dim. AB (mm): 149 | Dim. B (mm): 275 | Input shaft dia. U (mm): 23 | Output shaft dia. S (mm): 35
DH-96 Type: SY-DH double worm, horizontal | Frame: 96 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.88 | Rated input power @1/900 (kW): 0.32 | Dim. A (mm): 369 | Dim. AB (mm): 165.5 | Dim. B (mm): 292 | Input shaft dia. U (mm): 23 | Output shaft dia. S (mm): 38
DH-120 Type: SY-DH double worm, horizontal | Frame: 120 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 1.53 | Rated input power @1/900 (kW): 0.52 | Dim. A (mm): 418.5 | Dim. AB (mm): 198.5 | Dim. B (mm): 317 | Input shaft dia. U (mm): 25 | Output shaft dia. S (mm): 43
DH-125 Type: SY-DH double worm, horizontal | Frame: 125 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 1.53 | Rated input power @1/900 (kW): 0.52 | Dim. A (mm): 429 | Dim. AB (mm): 204 | Dim. B (mm): 329 | Input shaft dia. U (mm): 25 | Output shaft dia. S (mm): 50
DH-140 Type: SY-DH double worm, horizontal | Frame: 140 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 2.35 | Rated input power @1/900 (kW): 0.79 | Dim. A (mm): 467 | Dim. AB (mm): 222 | Dim. B (mm): 351 | Input shaft dia. U (mm): 25 | Output shaft dia. S (mm): 60
DV-60 Type: SY-DV double worm, vertical | Frame: 60 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.24 | Rated input power @1/900 (kW): 0.08 | Dim. A (mm): 278 | Dim. AB (mm): 126 | Dim. B (mm): 192 | Input shaft dia. U (mm): 16 | Output shaft dia. S (mm): 28
DV-77 Type: SY-DV double worm, vertical | Frame: 77 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.47 | Rated input power @1/900 (kW): 0.16 | Dim. A (mm): 298 | Dim. AB (mm): 134 | Dim. B (mm): 209 | Input shaft dia. U (mm): 18 | Output shaft dia. S (mm): 30
DV-88 Type: SY-DV double worm, vertical | Frame: 88 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.67 | Rated input power @1/900 (kW): 0.22 | Dim. A (mm): 332 | Dim. AB (mm): 149 | Dim. B (mm): 231 | Input shaft dia. U (mm): 23 | Output shaft dia. S (mm): 35
DV-96 Type: SY-DV double worm, vertical | Frame: 96 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.88 | Rated input power @1/900 (kW): 0.32 | Dim. A (mm): 372 | Dim. AB (mm): 165 | Dim. B (mm): 258 | Input shaft dia. U (mm): 23 | Output shaft dia. S (mm): 38
DV-120 Type: SY-DV double worm, vertical | Frame: 120 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 1.53 | Rated input power @1/900 (kW): 0.52 | Dim. A (mm): 420 | Dim. AB (mm): 198.5 | Dim. B (mm): 271 | Input shaft dia. U (mm): 25 | Output shaft dia. S (mm): 43
DV-125 Type: SY-DV double worm, vertical | Frame: 125 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 1.53 | Rated input power @1/900 (kW): 0.52 | Dim. A (mm): 426.5 | Dim. AB (mm): 202.5 | Dim. B (mm): 309 | Input shaft dia. U (mm): 25 | Output shaft dia. S (mm): 50
DV-140 Type: SY-DV double worm, vertical | Frame: 140 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 2.35 | Rated input power @1/900 (kW): 0.79 | Dim. A (mm): 467 | Dim. AB (mm): 222 | Dim. B (mm): 318 | Input shaft dia. U (mm): 25 | Output shaft dia. S (mm): 60
Worm ReducersSamyang Reducer
39 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Samyang Reducer STD Worm Reducer SW Series (SY-U, SY-B, SY-V, SY-DH, SY-DV, Frames 33–140)

Brand Samyang Reducer·Worm Reducers

Available part numbers (39)

U-33, U-49, U-60, U-77, U-88, U-96, U-120, U-125, U-140, B-49 + 29 more — see full table ↓

How to order

Send the Samyang Reducer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
U-33Type: SY-U single worm, horizontal U type | Frame: 33 | Gear ratio: 1/10–1/50 | Rated input power @1/10 (kW): 0.36 | Dim. A (mm): 138.5 | Dim. AB (mm): 85 | Dim. B (mm): 120 | Input shaft dia. U (mm): 12 | Output shaft dia. S (mm): 15
U-49Type: SY-U single worm, horizontal U type | Frame: 49 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 1.07 | Rated input power @1/60 (kW): 0.23 | Dim. A (mm): 191 | Dim. AB (mm): 117 | Dim. B (mm): 172 | Input shaft dia. U (mm): 16 | Output shaft dia. S (mm): 23
U-60Type: SY-U single worm, horizontal U type | Frame: 60 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 1.74 | Rated input power @1/60 (kW): 0.48 | Dim. A (mm): 237 | Dim. AB (mm): 139 | Dim. B (mm): 190 | Input shaft dia. U (mm): 18 | Output shaft dia. S (mm): 28
U-77Type: SY-U single worm, horizontal U type | Frame: 77 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 3 | Rated input power @1/60 (kW): 0.75 | Dim. A (mm): 248 | Dim. AB (mm): 152 | Dim. B (mm): 209 | Input shaft dia. U (mm): 23 | Output shaft dia. S (mm): 30
U-88Type: SY-U single worm, horizontal U type | Frame: 88 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 3.75 | Rated input power @1/60 (kW): 0.94 | Dim. A (mm): 303 | Dim. AB (mm): 180 | Dim. B (mm): 227 | Input shaft dia. U (mm): 28 | Output shaft dia. S (mm): 35
U-96Type: SY-U single worm, horizontal U type | Frame: 96 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 5.63 | Rated input power @1/60 (kW): 1.13 | Dim. A (mm): 340 | Dim. AB (mm): 200 | Dim. B (mm): 269 | Input shaft dia. U (mm): 28 | Output shaft dia. S (mm): 38
U-120Type: SY-U single worm, horizontal U type | Frame: 120 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 9.38 | Rated input power @1/60 (kW): 2.25 | Dim. A (mm): 385 | Dim. AB (mm): 225 | Dim. B (mm): 270 | Input shaft dia. U (mm): 32 | Output shaft dia. S (mm): 43
U-125Type: SY-U single worm, horizontal U type | Frame: 125 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 7.5 | Rated input power @1/60 (kW): 2.25 | Dim. A (mm): 406 | Dim. AB (mm): 241 | Dim. B (mm): 287 | Input shaft dia. U (mm): 35 | Output shaft dia. S (mm): 50
U-140Type: SY-U single worm, horizontal U type | Frame: 140 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 13.13 | Rated input power @1/60 (kW): 3 | Dim. A (mm): 456 | Dim. AB (mm): 270 | Dim. B (mm): 320 | Input shaft dia. U (mm): 38 | Output shaft dia. S (mm): 60
B-49Type: SY-B single worm, horizontal B type | Frame: 49 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 1.07 | Rated input power @1/60 (kW): 0.23 | Dim. A (mm): 191 | Dim. AB (mm): 117 | Dim. B (mm): 172 | Input shaft dia. U (mm): 16 | Output shaft dia. S (mm): 23
B-60Type: SY-B single worm, horizontal B type | Frame: 60 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 1.74 | Rated input power @1/60 (kW): 0.48 | Dim. A (mm): 227 | Dim. AB (mm): 139 | Dim. B (mm): 190 | Input shaft dia. U (mm): 18 | Output shaft dia. S (mm): 28
B-77Type: SY-B single worm, horizontal B type | Frame: 77 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 3 | Rated input power @1/60 (kW): 0.75 | Dim. A (mm): 248 | Dim. AB (mm): 152 | Dim. B (mm): 209 | Input shaft dia. U (mm): 23 | Output shaft dia. S (mm): 30
B-88Type: SY-B single worm, horizontal B type | Frame: 88 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 3.75 | Rated input power @1/60 (kW): 0.94 | Dim. A (mm): 303 | Dim. AB (mm): 180 | Dim. B (mm): 227 | Input shaft dia. U (mm): 28 | Output shaft dia. S (mm): 35
B-96Type: SY-B single worm, horizontal B type | Frame: 96 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 5.63 | Rated input power @1/60 (kW): 1.13 | Dim. A (mm): 340 | Dim. AB (mm): 200 | Dim. B (mm): 269 | Input shaft dia. U (mm): 28 | Output shaft dia. S (mm): 38
B-120Type: SY-B single worm, horizontal B type | Frame: 120 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 9.38 | Rated input power @1/60 (kW): 2.25 | Dim. A (mm): 385 | Dim. AB (mm): 225 | Dim. B (mm): 270 | Input shaft dia. U (mm): 32 | Output shaft dia. S (mm): 43
B-125Type: SY-B single worm, horizontal B type | Frame: 125 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 7.5 | Rated input power @1/60 (kW): 2.25 | Dim. A (mm): 406 | Dim. AB (mm): 241 | Dim. B (mm): 287 | Input shaft dia. U (mm): 35 | Output shaft dia. S (mm): 50
B-140Type: SY-B single worm, horizontal B type | Frame: 140 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 13.13 | Rated input power @1/60 (kW): 3 | Dim. A (mm): 456 | Dim. AB (mm): 270 | Dim. B (mm): 320 | Input shaft dia. U (mm): 38 | Output shaft dia. S (mm): 60
V-49Type: SY-V single worm, vertical type | Frame: 49 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 1.07 | Rated input power @1/60 (kW): 0.23 | Dim. A (mm): 191 | Dim. AB (mm): 117 | Dim. B (mm): 177 | Input shaft dia. U (mm): 16 | Output shaft dia. S (mm): 23
V-60Type: SY-V single worm, vertical type | Frame: 60 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 1.74 | Rated input power @1/60 (kW): 0.48 | Dim. A (mm): 227 | Dim. AB (mm): 139 | Dim. B (mm): 192 | Input shaft dia. U (mm): 18 | Output shaft dia. S (mm): 28
V-77Type: SY-V single worm, vertical type | Frame: 77 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 3 | Rated input power @1/60 (kW): 0.75 | Dim. A (mm): 256 | Dim. AB (mm): 152 | Dim. B (mm): 209 | Input shaft dia. U (mm): 23 | Output shaft dia. S (mm): 30
V-88Type: SY-V single worm, vertical type | Frame: 88 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 3.75 | Rated input power @1/60 (kW): 0.94 | Dim. A (mm): 303 | Dim. AB (mm): 180 | Dim. B (mm): 231 | Input shaft dia. U (mm): 28 | Output shaft dia. S (mm): 35
V-96Type: SY-V single worm, vertical type | Frame: 96 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 5.63 | Rated input power @1/60 (kW): 1.13 | Dim. A (mm): 340 | Dim. AB (mm): 200 | Dim. B (mm): 258 | Input shaft dia. U (mm): 28 | Output shaft dia. S (mm): 38
V-120Type: SY-V single worm, vertical type | Frame: 120 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 9.38 | Rated input power @1/60 (kW): 2.25 | Dim. A (mm): 385 | Dim. AB (mm): 225 | Dim. B (mm): 271 | Input shaft dia. U (mm): 32 | Output shaft dia. S (mm): 43
V-125Type: SY-V single worm, vertical type | Frame: 125 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 7.5 | Rated input power @1/60 (kW): 2.25 | Dim. A (mm): 389.5 | Dim. AB (mm): 225 | Dim. B (mm): 309 | Input shaft dia. U (mm): 35 | Output shaft dia. S (mm): 50
V-140Type: SY-V single worm, vertical type | Frame: 140 | Gear ratio: 1/10–1/60 | Rated input power @1/10 (kW): 13.13 | Rated input power @1/60 (kW): 3 | Dim. A (mm): 455 | Dim. AB (mm): 270 | Dim. B (mm): 318 | Input shaft dia. U (mm): 38 | Output shaft dia. S (mm): 60
DH-60Type: SY-DH double worm, horizontal | Frame: 60 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.24 | Rated input power @1/900 (kW): 0.08 | Dim. A (mm): 275 | Dim. AB (mm): 126 | Dim. B (mm): 238 | Input shaft dia. U (mm): 16 | Output shaft dia. S (mm): 28
DH-77Type: SY-DH double worm, horizontal | Frame: 77 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.47 | Rated input power @1/900 (kW): 0.16 | Dim. A (mm): 291 | Dim. AB (mm): 134 | Dim. B (mm): 253 | Input shaft dia. U (mm): 18 | Output shaft dia. S (mm): 30
DH-88Type: SY-DH double worm, horizontal | Frame: 88 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.67 | Rated input power @1/900 (kW): 0.22 | Dim. A (mm): 336 | Dim. AB (mm): 149 | Dim. B (mm): 275 | Input shaft dia. U (mm): 23 | Output shaft dia. S (mm): 35
DH-96Type: SY-DH double worm, horizontal | Frame: 96 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.88 | Rated input power @1/900 (kW): 0.32 | Dim. A (mm): 369 | Dim. AB (mm): 165.5 | Dim. B (mm): 292 | Input shaft dia. U (mm): 23 | Output shaft dia. S (mm): 38
DH-120Type: SY-DH double worm, horizontal | Frame: 120 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 1.53 | Rated input power @1/900 (kW): 0.52 | Dim. A (mm): 418.5 | Dim. AB (mm): 198.5 | Dim. B (mm): 317 | Input shaft dia. U (mm): 25 | Output shaft dia. S (mm): 43
DH-125Type: SY-DH double worm, horizontal | Frame: 125 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 1.53 | Rated input power @1/900 (kW): 0.52 | Dim. A (mm): 429 | Dim. AB (mm): 204 | Dim. B (mm): 329 | Input shaft dia. U (mm): 25 | Output shaft dia. S (mm): 50
DH-140Type: SY-DH double worm, horizontal | Frame: 140 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 2.35 | Rated input power @1/900 (kW): 0.79 | Dim. A (mm): 467 | Dim. AB (mm): 222 | Dim. B (mm): 351 | Input shaft dia. U (mm): 25 | Output shaft dia. S (mm): 60
DV-60Type: SY-DV double worm, vertical | Frame: 60 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.24 | Rated input power @1/900 (kW): 0.08 | Dim. A (mm): 278 | Dim. AB (mm): 126 | Dim. B (mm): 192 | Input shaft dia. U (mm): 16 | Output shaft dia. S (mm): 28
DV-77Type: SY-DV double worm, vertical | Frame: 77 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.47 | Rated input power @1/900 (kW): 0.16 | Dim. A (mm): 298 | Dim. AB (mm): 134 | Dim. B (mm): 209 | Input shaft dia. U (mm): 18 | Output shaft dia. S (mm): 30
DV-88Type: SY-DV double worm, vertical | Frame: 88 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.67 | Rated input power @1/900 (kW): 0.22 | Dim. A (mm): 332 | Dim. AB (mm): 149 | Dim. B (mm): 231 | Input shaft dia. U (mm): 23 | Output shaft dia. S (mm): 35
DV-96Type: SY-DV double worm, vertical | Frame: 96 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 0.88 | Rated input power @1/900 (kW): 0.32 | Dim. A (mm): 372 | Dim. AB (mm): 165 | Dim. B (mm): 258 | Input shaft dia. U (mm): 23 | Output shaft dia. S (mm): 38
DV-120Type: SY-DV double worm, vertical | Frame: 120 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 1.53 | Rated input power @1/900 (kW): 0.52 | Dim. A (mm): 420 | Dim. AB (mm): 198.5 | Dim. B (mm): 271 | Input shaft dia. U (mm): 25 | Output shaft dia. S (mm): 43
DV-125Type: SY-DV double worm, vertical | Frame: 125 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 1.53 | Rated input power @1/900 (kW): 0.52 | Dim. A (mm): 426.5 | Dim. AB (mm): 202.5 | Dim. B (mm): 309 | Input shaft dia. U (mm): 25 | Output shaft dia. S (mm): 50
DV-140Type: SY-DV double worm, vertical | Frame: 140 | Gear ratio: 1/200–1/600 | Rated input power @1/200 (kW): 2.35 | Rated input power @1/900 (kW): 0.79 | Dim. A (mm): 467 | Dim. AB (mm): 222 | Dim. B (mm): 318 | Input shaft dia. U (mm): 25 | Output shaft dia. S (mm): 60
