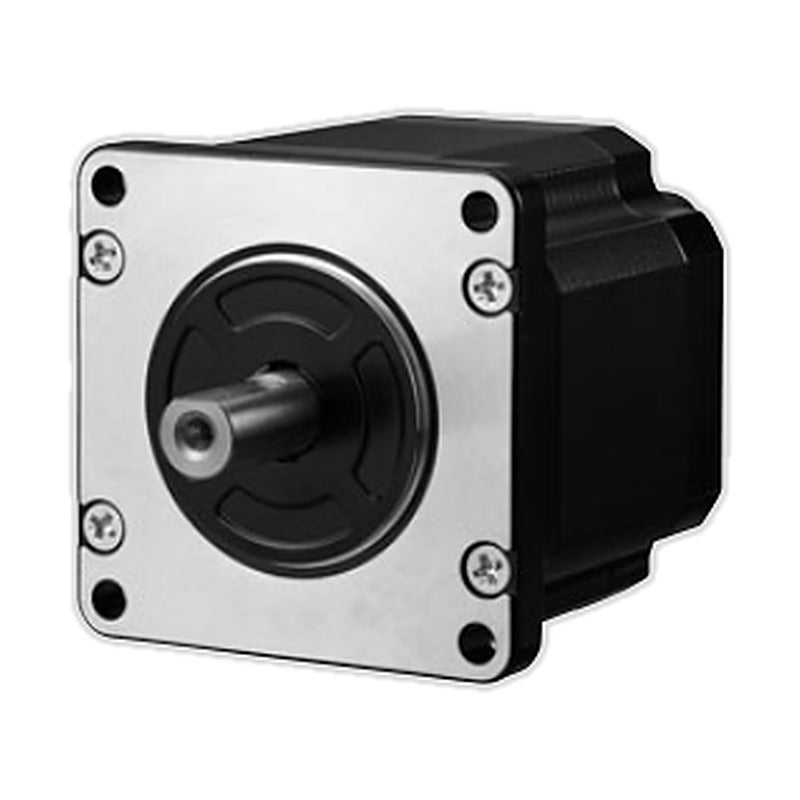

Sanyo Denki SANMOTION PB AC Input Geared Stepping Motor

Sanyo Denki SANMOTION PB AC Input Geared Stepping Motor

Closed loop stepping motors with low-backlash planetary or harmonic gears in 42 and 60 mm sq. for the SANMOTION PB AC input Type R and Type P drivers.

Key features

  • Low-backlash gear ratios 1:3.6, 1:7.2, 1:10, 1:20 and 1:30
  • Harmonic gear ratios 1:30, 1:50 and 1:100 (60 mm sq.: 1:50, 1:100)
  • Allowable torque up to 8 N·m (20 N·m instantaneous) with harmonic gear
  • Built-in 16000 P/R encoder for closed loop operation without step-out
  • Compatible with Type R and Type P AC input drivers

Specifications

Series SANMOTION Model No.PB (AC input)
Control Closed loop (encoder feedback)
Encoder Optical incremental 16000 P/R, Z-phase
Compatible drivers PB4A002R300/R301, PB4A002P300/P301
Protection IP40
Thermal class B (UL: A)
Standards CE, UKCA, UL/cUL, RoHS
Source Sanyo Denki SANMOTION Model No.PB Closed Loop Stepping Systems Ver.12, p. 11-29
PBM423FGAK30-M Gear: Low-backlash gear 1:3.6 | Frame: 42 mm sq. | Length: 86.1 mm | Allowable torque: 0.343 N·m | Allowable speed: 500 min-1 | Backlash: 0.6 deg
PBM423FGBK30-M Gear: Low-backlash gear 1:7.2 | Frame: 42 mm sq. | Length: 86.1 mm | Allowable torque: 0.686 N·m | Allowable speed: 250 min-1 | Backlash: 0.4 deg
PBM423FGEK30-M Gear: Low-backlash gear 1:10 | Frame: 42 mm sq. | Length: 86.1 mm | Allowable torque: 0.98 N·m | Allowable speed: 180 min-1 | Backlash: 0.35 deg
PBM423FGGK30-M Gear: Low-backlash gear 1:20 | Frame: 42 mm sq. | Length: 86.1 mm | Allowable torque: 1.47 N·m | Allowable speed: 90 min-1 | Backlash: 0.25 deg
PBM423FGJK30-M Gear: Low-backlash gear 1:30 | Frame: 42 mm sq. | Length: 86.1 mm | Allowable torque: 1.47 N·m | Allowable speed: 60 min-1 | Backlash: 0.25 deg
PBM603FGAK30-M Gear: Low-backlash gear 1:3.6 | Frame: 60 mm sq. | Length: 114.3 mm | Allowable torque: 1.25 N·m | Allowable speed: 500 min-1 | Backlash: 0.55 deg
PBM603FGBK30-M Gear: Low-backlash gear 1:7.2 | Frame: 60 mm sq. | Length: 114.3 mm | Allowable torque: 2.5 N·m | Allowable speed: 250 min-1 | Backlash: 0.25 deg
PBM603FGEK30-M Gear: Low-backlash gear 1:10 | Frame: 60 mm sq. | Length: 114.3 mm | Allowable torque: 3 N·m | Allowable speed: 180 min-1 | Backlash: 0.25 deg
PBM603FGGK30-M Gear: Low-backlash gear 1:20 | Frame: 60 mm sq. | Length: 114.3 mm | Allowable torque: 3.5 N·m | Allowable speed: 90 min-1 | Backlash: 0.17 deg
PBM603FGJK30-M Gear: Low-backlash gear 1:30 | Frame: 60 mm sq. | Length: 114.3 mm | Allowable torque: 4 N·m | Allowable speed: 60 min-1 | Backlash: 0.17 deg
PBM423FHJK30-M Gear: Harmonic gear 1:30 | Frame: 42 mm sq. | Length: 95.1 mm | Allowable torque: 2.2 (4.5) N·m | Allowable speed: 116 min-1 | Backlash: –
PBM423FHLK30-M Gear: Harmonic gear 1:50 | Frame: 42 mm sq. | Length: 95.1 mm | Allowable torque: 3.5 (8.3) N·m | Allowable speed: 70 min-1 | Backlash: –
PBM423FHMK30-M Gear: Harmonic gear 1:100 | Frame: 42 mm sq. | Length: 95.1 mm | Allowable torque: 5 (11) N·m | Allowable speed: 35 min-1 | Backlash: –
PBM603FHLK30-M Gear: Harmonic gear 1:50 | Frame: 60 mm sq. | Length: 135.8 mm | Allowable torque: 5.5 (14) N·m | Allowable speed: 70 min-1 | Backlash: –
PBM603FHMK30-M Gear: Harmonic gear 1:100 | Frame: 60 mm sq. | Length: 135.8 mm | Allowable torque: 8 (20) N·m | Allowable speed: 35 min-1 | Backlash: –
