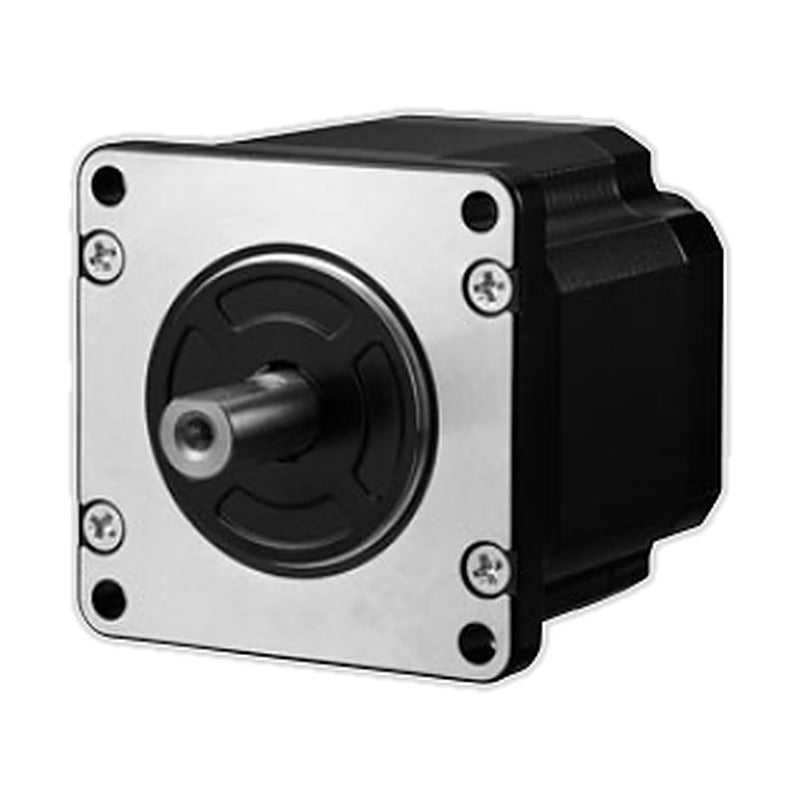

Sanyo Denki SANMOTION PB AC Input Stepping Motor (Standard/Brake)

Sanyo Denki SANMOTION PB AC Input Stepping Motor (Standard/Brake)

Encoder-equipped closed loop stepping motors in 42, 60 and 86 mm sq. for the SANMOTION PB AC input Type R and Type P drivers, in standard and 24 VDC brake versions.

Key features

  • Closed loop control with built-in 16000 P/R encoder eliminates step-out
  • Frame sizes 42, 60 and 86 mm sq.; max. stall torque 0.35 to 6.1 N·m
  • Electromagnetic brake (24 VDC) versions in 42 and 60 mm sq.
  • Runs on Type R (RS-485 + parallel I/O) or Type P (pulse train) drivers
  • Up to 4500 min-1 (4000 min-1 for 86 mm sq.)

Specifications

Series SANMOTION Model No.PB (AC input)
Control Closed loop (encoder feedback)
Encoder Optical incremental 16000 P/R, Z-phase
Compatible drivers PB4A002R300/R301, PB4A002P300/P301
Protection IP40
Thermal class B (UL: A)
Standards CE, UKCA, UL/cUL, RoHS
Source Sanyo Denki SANMOTION Model No.PB Closed Loop Stepping Systems Ver.12, p. 11-29
PBM423FXK30-M Model: Standard | Frame: 42 mm sq. | Length: 55.9 mm | Max. stall torque: 0.35 N·m
PBM603FXK30-M Model: Standard | Frame: 60 mm sq. | Length: 68.8 mm | Max. stall torque: 1.3 N·m
PBM604FXK30-M Model: Standard | Frame: 60 mm sq. | Length: 100.8 mm | Max. stall torque: 1.9 N·m
PBM861FXK30-M Model: Standard | Frame: 86 mm sq. | Length: 79.5 mm | Max. stall torque: 3.1 N·m
PBM862FXK30-M Model: Standard | Frame: 86 mm sq. | Length: 110 mm | Max. stall torque: 6.1 N·m
PBM423FCK30-M Model: 24 VDC brake | Frame: 42 mm sq. | Length: 88.3 mm | Max. stall torque: 0.35 N·m
PBM603FCK30-M Model: 24 VDC brake | Frame: 60 mm sq. | Length: 108.1 mm | Max. stall torque: 1.3 N·m
PBM604FCK30-M Model: 24 VDC brake | Frame: 60 mm sq. | Length: 140.1 mm | Max. stall torque: 1.9 N·m
Stepping MotorsSanyo Denki
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION PB AC Input Stepping Motor (Standard/Brake)

Brand Sanyo Denki·Stepping Motors

Available part numbers (8)

PBM423FXK30-M, PBM603FXK30-M, PBM604FXK30-M, PBM861FXK30-M, PBM862FXK30-M, PBM423FCK30-M, PBM603FCK30-M, PBM604FCK30-M

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PBM423FXK30-MModel: Standard | Frame: 42 mm sq. | Length: 55.9 mm | Max. stall torque: 0.35 N·m
PBM603FXK30-MModel: Standard | Frame: 60 mm sq. | Length: 68.8 mm | Max. stall torque: 1.3 N·m
PBM604FXK30-MModel: Standard | Frame: 60 mm sq. | Length: 100.8 mm | Max. stall torque: 1.9 N·m
PBM861FXK30-MModel: Standard | Frame: 86 mm sq. | Length: 79.5 mm | Max. stall torque: 3.1 N·m
PBM862FXK30-MModel: Standard | Frame: 86 mm sq. | Length: 110 mm | Max. stall torque: 6.1 N·m
PBM423FCK30-MModel: 24 VDC brake | Frame: 42 mm sq. | Length: 88.3 mm | Max. stall torque: 0.35 N·m
PBM603FCK30-MModel: 24 VDC brake | Frame: 60 mm sq. | Length: 108.1 mm | Max. stall torque: 1.3 N·m
PBM604FCK30-MModel: 24 VDC brake | Frame: 60 mm sq. | Length: 140.1 mm | Max. stall torque: 1.9 N·m
