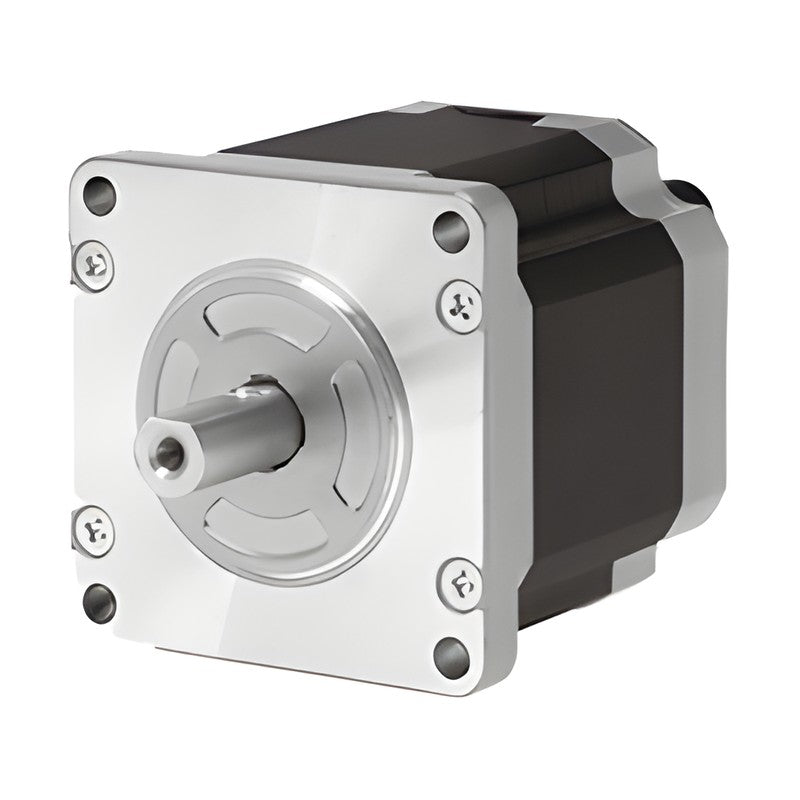

Sanyo Denki SANMOTION PB Multi-axis DC Stepping Motor (Std/Brake)

Sanyo Denki SANMOTION PB Multi-axis DC Stepping Motor (Std/Brake)

Closed loop stepping motors with optical incremental encoder in 28, 42 and 60 mm sq. for the SANMOTION PB 4-axis Type P (pulse train) and Type E (EtherCAT) DC drivers.

Key features

  • Frame sizes 28, 42 and 60 mm sq.; max. stall torque 0.055 to 1.85 N·m
  • Standard and 24 VDC electromagnetic brake versions
  • Optical incremental encoder: 16000 P/R (42/60 mm), 2000 P/R (28 mm)
  • Common motor for PB4D003P340 and PB4D003E440 4-axis drivers
  • Up to 4500 min-1 (3000 min-1 for 60 mm sq. on Type E)

Specifications

Series SANMOTION Model No.PB (DC input multi-axis)
Encoder Incremental: 16000 P/R (42/60 mm), 2000 P/R (28 mm)
Compatible drivers PB4D003P340, PB4D003E440
Supply 24/48 VDC
Protection IP40 (28 mm sq.: IP30)
Thermal class B
Standards CE, UKCA, UL/cUL, RoHS
Source Sanyo Denki SANMOTION Model No.PB Closed Loop Stepping Systems Ver.12, p. 47-80
PBM281DXE50 Model: Standard | Frame: 28 mm sq. | Length: 59.2 mm | Max. stall torque: 0.055 N·m
PBM285DXE50 Model: Standard | Frame: 28 mm sq. | Length: 78.5 mm | Max. stall torque: 0.115 N·m
PBM423DXK50 Model: Standard | Frame: 42 mm sq. | Length: 55.9 mm | Max. stall torque: 0.39 N·m
PBM603DXK50 Model: Standard | Frame: 60 mm sq. | Length: 68.8 mm | Max. stall torque: 1.05 N·m
PBM604DXK50 Model: Standard | Frame: 60 mm sq. | Length: 100.8 mm | Max. stall torque: 1.85 N·m
PBM281DCE50 Model: 24 VDC brake | Frame: 28 mm sq. | Length: 98.5 mm | Max. stall torque: 0.055 N·m
PBM285DCE50 Model: 24 VDC brake | Frame: 28 mm sq. | Length: 117.8 mm | Max. stall torque: 0.115 N·m
PBM423DCK50 Model: 24 VDC brake | Frame: 42 mm sq. | Length: 88.3 mm | Max. stall torque: 0.39 N·m
PBM603DCK50 Model: 24 VDC brake | Frame: 60 mm sq. | Length: 108.1 mm | Max. stall torque: 1.05 N·m
PBM604DCK50 Model: 24 VDC brake | Frame: 60 mm sq. | Length: 140.1 mm | Max. stall torque: 1.85 N·m
Stepping MotorsSanyo Denki
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION PB Multi-axis DC Stepping Motor (Std/Brake)

Brand Sanyo Denki·Stepping Motors

Available part numbers (10)

PBM281DXE50, PBM285DXE50, PBM423DXK50, PBM603DXK50, PBM604DXK50, PBM281DCE50, PBM285DCE50, PBM423DCK50, PBM603DCK50, PBM604DCK50

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PBM281DXE50Model: Standard | Frame: 28 mm sq. | Length: 59.2 mm | Max. stall torque: 0.055 N·m
PBM285DXE50Model: Standard | Frame: 28 mm sq. | Length: 78.5 mm | Max. stall torque: 0.115 N·m
PBM423DXK50Model: Standard | Frame: 42 mm sq. | Length: 55.9 mm | Max. stall torque: 0.39 N·m
PBM603DXK50Model: Standard | Frame: 60 mm sq. | Length: 68.8 mm | Max. stall torque: 1.05 N·m
PBM604DXK50Model: Standard | Frame: 60 mm sq. | Length: 100.8 mm | Max. stall torque: 1.85 N·m
PBM281DCE50Model: 24 VDC brake | Frame: 28 mm sq. | Length: 98.5 mm | Max. stall torque: 0.055 N·m
PBM285DCE50Model: 24 VDC brake | Frame: 28 mm sq. | Length: 117.8 mm | Max. stall torque: 0.115 N·m
PBM423DCK50Model: 24 VDC brake | Frame: 42 mm sq. | Length: 88.3 mm | Max. stall torque: 0.39 N·m
PBM603DCK50Model: 24 VDC brake | Frame: 60 mm sq. | Length: 108.1 mm | Max. stall torque: 1.05 N·m
PBM604DCK50Model: 24 VDC brake | Frame: 60 mm sq. | Length: 140.1 mm | Max. stall torque: 1.85 N·m
