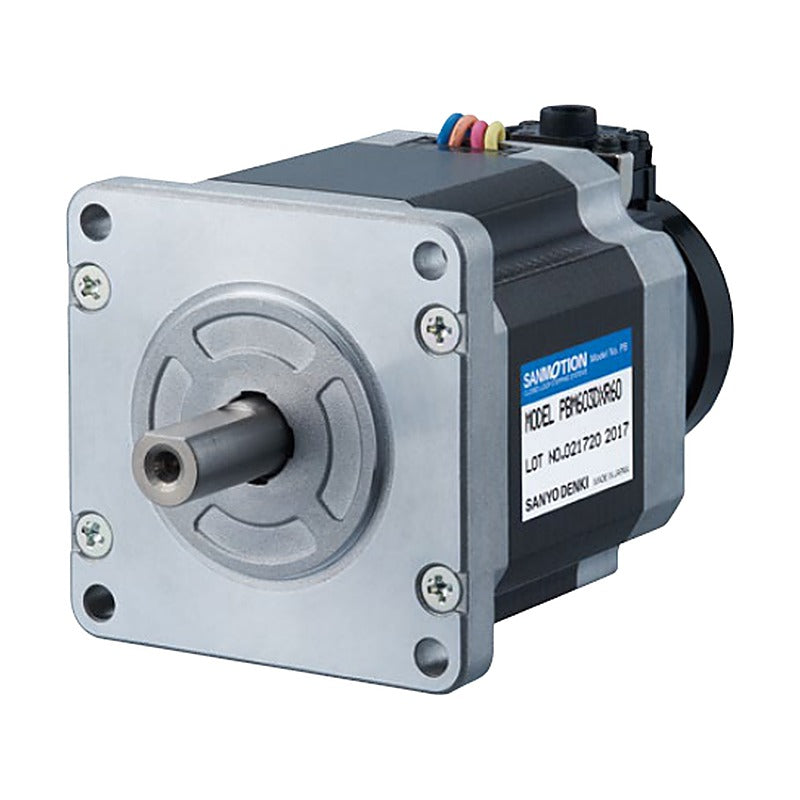

Sanyo Denki SANMOTION PB Type E Absolute Stepping Motor (Std/Brake)

Sanyo Denki SANMOTION PB Type E Absolute Stepping Motor (Std/Brake)

Closed loop stepping motors with battery-less optical absolute encoder in 42 and 60 mm sq. for the SANMOTION PB Type E EtherCAT 4-axis driver.

Key features

  • Battery-less absolute encoder: no battery replacement needed
  • 17-bit single-turn / 16-bit multi-turn resolution
  • Frame sizes 42 and 60 mm sq.; max. stall torque 0.39 to 1.85 N·m
  • Standard and 24 VDC electromagnetic brake versions
  • For the PB4D003E440 EtherCAT multi-axis driver

Specifications

Series SANMOTION Model No.PB (DC input Type E)
Encoder Battery-less optical absolute, 17-bit single-turn
Multi-turn 16 bit
Compatible driver PB4D003E440 (EtherCAT)
Supply 24/48 VDC
Protection IP40
Standards CE, UKCA, UL/cUL, RoHS
Source Sanyo Denki SANMOTION Model No.PB Closed Loop Stepping Systems Ver.12, p. 59-80
PBM423DXR60 Model: Standard | Frame: 42 mm sq. | Length: 74.7 mm | Max. stall torque: 0.39 N·m
PBM603DXR60 Model: Standard | Frame: 60 mm sq. | Length: 87.6 mm | Max. stall torque: 1.05 N·m
PBM604DXR60 Model: Standard | Frame: 60 mm sq. | Length: 119.6 mm | Max. stall torque: 1.85 N·m
PBM423DCR60 Model: 24 VDC brake | Frame: 42 mm sq. | Length: 107.4 mm | Max. stall torque: 0.39 N·m
PBM603DCR60 Model: 24 VDC brake | Frame: 60 mm sq. | Length: 126.9 mm | Max. stall torque: 1.05 N·m
PBM604DCR60 Model: 24 VDC brake | Frame: 60 mm sq. | Length: 158.9 mm | Max. stall torque: 1.85 N·m
Stepping MotorsSanyo Denki
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION PB Type E Absolute Stepping Motor (Std/Brake)

Brand Sanyo Denki·Stepping Motors

Available part numbers (6)

PBM423DXR60, PBM603DXR60, PBM604DXR60, PBM423DCR60, PBM603DCR60, PBM604DCR60

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PBM423DXR60Model: Standard | Frame: 42 mm sq. | Length: 74.7 mm | Max. stall torque: 0.39 N·m
PBM603DXR60Model: Standard | Frame: 60 mm sq. | Length: 87.6 mm | Max. stall torque: 1.05 N·m
PBM604DXR60Model: Standard | Frame: 60 mm sq. | Length: 119.6 mm | Max. stall torque: 1.85 N·m
PBM423DCR60Model: 24 VDC brake | Frame: 42 mm sq. | Length: 107.4 mm | Max. stall torque: 0.39 N·m
PBM603DCR60Model: 24 VDC brake | Frame: 60 mm sq. | Length: 126.9 mm | Max. stall torque: 1.05 N·m
PBM604DCR60Model: 24 VDC brake | Frame: 60 mm sq. | Length: 158.9 mm | Max. stall torque: 1.85 N·m
