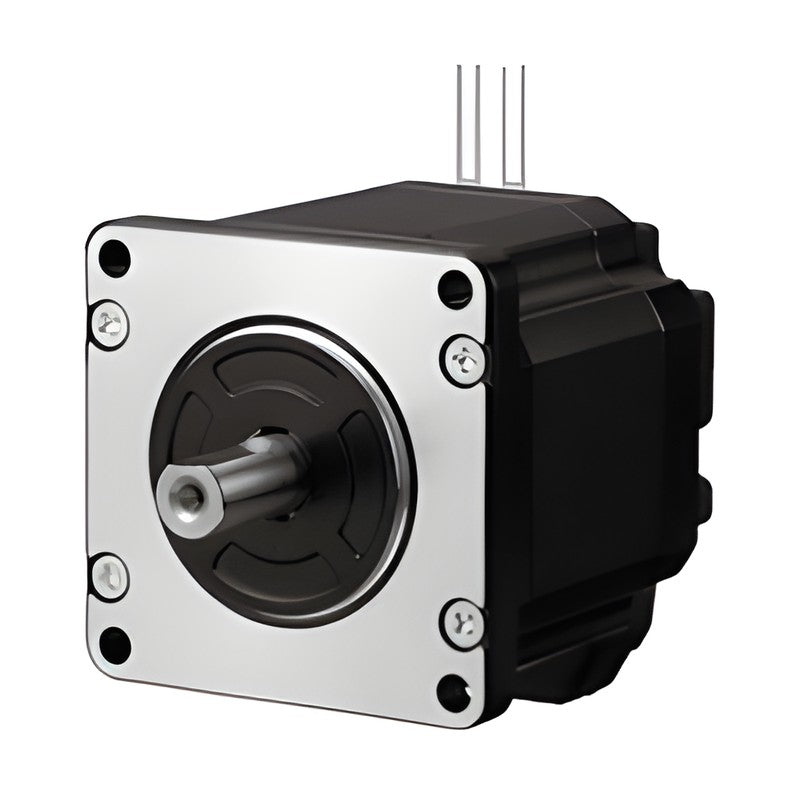

Sanyo Denki SANMOTION PB Type M DC Geared Stepping Motor

Sanyo Denki SANMOTION PB Type M DC Geared Stepping Motor

Closed loop stepping motors with low-backlash or harmonic gears in 28, 42 and 60 mm sq. for the SANMOTION PB DC input Type M driver.

Key features

  • Low-backlash gear ratios 1:3.6 to 1:30 (42 and 60 mm sq.)
  • Harmonic gear ratios 1:30 to 1:100, including 28 mm sq. 1:50 and 1:100
  • Allowable torque up to 8 N·m (20 N·m instantaneous)
  • Built-in 2000 P/R encoder for closed loop operation
  • Driven by PB3D003M200/M201 Type M drivers

Specifications

Series SANMOTION Model No.PB (DC input Type M)
Encoder Optical incremental 2000 P/R, Z-phase
Compatible drivers PB3D003M200, PB3D003M201
Supply 24/48 VDC (28 mm sq.: 24 VDC only)
Protection IP40
Thermal class B
Standards CE, UKCA, UL/cUL, RoHS
Source Sanyo Denki SANMOTION Model No.PB Closed Loop Stepping Systems Ver.12, p. 31-45
PBM423FGAE20 Gear: Low-backlash gear 1:3.6 | Frame: 42 mm sq. | Length: 87.9 mm | Allowable torque: 0.343 N·m | Allowable speed: 500 min-1 | Backlash: 0.6 deg
PBM423FGBE20 Gear: Low-backlash gear 1:7.2 | Frame: 42 mm sq. | Length: 87.9 mm | Allowable torque: 0.686 N·m | Allowable speed: 250 min-1 | Backlash: 0.4 deg
PBM423FGEE20 Gear: Low-backlash gear 1:10 | Frame: 42 mm sq. | Length: 87.9 mm | Allowable torque: 0.98 N·m | Allowable speed: 180 min-1 | Backlash: 0.35 deg
PBM423FGGE20 Gear: Low-backlash gear 1:20 | Frame: 42 mm sq. | Length: 87.9 mm | Allowable torque: 1.47 N·m | Allowable speed: 90 min-1 | Backlash: 0.25 deg
PBM423FGJE20 Gear: Low-backlash gear 1:30 | Frame: 42 mm sq. | Length: 87.9 mm | Allowable torque: 1.47 N·m | Allowable speed: 60 min-1 | Backlash: 0.25 deg
PBM603FGAE20 Gear: Low-backlash gear 1:3.6 | Frame: 60 mm sq. | Length: 115.8 mm | Allowable torque: 1.25 N·m | Allowable speed: 500 min-1 | Backlash: 0.55 deg
PBM603FGBE20 Gear: Low-backlash gear 1:7.2 | Frame: 60 mm sq. | Length: 115.8 mm | Allowable torque: 2.5 N·m | Allowable speed: 250 min-1 | Backlash: 0.25 deg
PBM603FGEE20 Gear: Low-backlash gear 1:10 | Frame: 60 mm sq. | Length: 115.8 mm | Allowable torque: 3 N·m | Allowable speed: 180 min-1 | Backlash: 0.25 deg
PBM603FGGE20 Gear: Low-backlash gear 1:20 | Frame: 60 mm sq. | Length: 115.8 mm | Allowable torque: 3.5 N·m | Allowable speed: 90 min-1 | Backlash: 0.17 deg
PBM603FGJE20 Gear: Low-backlash gear 1:30 | Frame: 60 mm sq. | Length: 115.8 mm | Allowable torque: 4 N·m | Allowable speed: 60 min-1 | Backlash: 0.17 deg
PBM282FHLE20 Gear: Harmonic gear 1:50 | Frame: 28 mm sq. | Length: 97 mm | Allowable torque: 1.5 (2.7) N·m | Allowable speed: 70 min-1 | Backlash: –
PBM282FHME20 Gear: Harmonic gear 1:100 | Frame: 28 mm sq. | Length: 97 mm | Allowable torque: 2 (3.6) N·m | Allowable speed: 35 min-1 | Backlash: –
PBM423FHJE20 Gear: Harmonic gear 1:30 | Frame: 42 mm sq. | Length: 97 mm | Allowable torque: 2.2 (4.5) N·m | Allowable speed: 116 min-1 | Backlash: –
PBM423FHLE20 Gear: Harmonic gear 1:50 | Frame: 42 mm sq. | Length: 97 mm | Allowable torque: 3.5 (8.3) N·m | Allowable speed: 70 min-1 | Backlash: –
PBM423FHME20 Gear: Harmonic gear 1:100 | Frame: 42 mm sq. | Length: 97 mm | Allowable torque: 5 (11) N·m | Allowable speed: 35 min-1 | Backlash: –
PBM603FHLE20 Gear: Harmonic gear 1:50 | Frame: 60 mm sq. | Length: 137.3 mm | Allowable torque: 5.5 (14) N·m | Allowable speed: 70 min-1 | Backlash: –
PBM603FHME20 Gear: Harmonic gear 1:100 | Frame: 60 mm sq. | Length: 137.3 mm | Allowable torque: 8 (20) N·m | Allowable speed: 35 min-1 | Backlash: –
