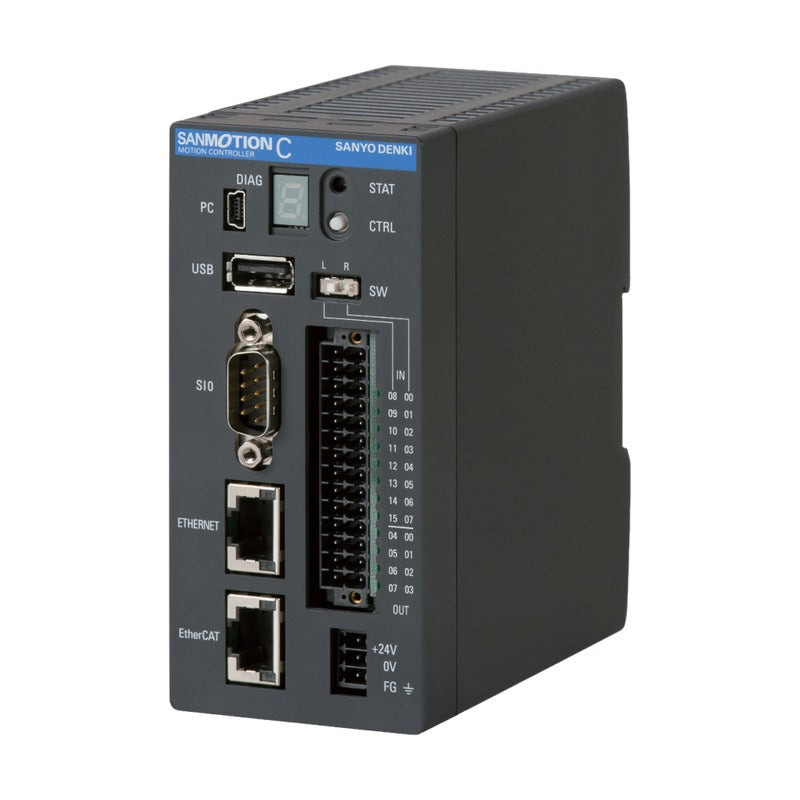

Sanyo Denki SANMOTION C S100 EtherCAT Motion Controller (8 Axes)

Sanyo Denki SANMOTION C S100 EtherCAT Motion Controller (8 Axes)

Compact EtherCAT master motion controller for up to 8 axes, in a high-performance robot-control type and a standard PTP positioning type.

Key features

  • EtherCAT (100 Mbps) master, FoE-compatible; Ethernet with Modbus TCP, OPC UA and EtherNet/IP
  • Up to 8 controllable axes, communication cycle 2 to 16 ms
  • SMC100-A: motion and robot control (Cartesian, SCARA, parallel link), G-code
  • SMC100-B: sequence control and PTP motion control
  • 16 digital inputs / 8 sink outputs, RS-485 and USB 2.0 host
  • IEC 61131-3 programming (IL, ST, LD, FBD, SFC, CFC), web visualization

Specifications

Series SANMOTION C S100
Max. controllable axes 8
Fieldbus EtherCAT 100 Mbps master, FoE
Power supply 24 VDC (19.2 to 30 VDC), 0.8 A
Power consumption 19.2 W
Digital I/O 16 inputs / 8 sink outputs (0.5 A)
Dimensions 55 (W) x 120 (H) x 110 (D) mm
Mass 300 g
Ambient temperature 0 to 55 C
Source Sanyo Denki SANMOTION C S100 catalogue S1050B004 '23.1, p. 3-10
SMC100-A Type: High-performance | Control functions: Sequence, motion, robot | G-code: Yes
SMC100-B Type: Standard | Control functions: Sequence, PTP motion | G-code: No
Motion ControllersSanyo Denki
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION C S100 EtherCAT Motion Controller (8 Axes)

Brand Sanyo Denki·Motion Controllers

Available part numbers (2)

SMC100-A, SMC100-B

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SMC100-AType: High-performance | Control functions: Sequence, motion, robot | G-code: Yes
SMC100-BType: Standard | Control functions: Sequence, PTP motion | G-code: No
