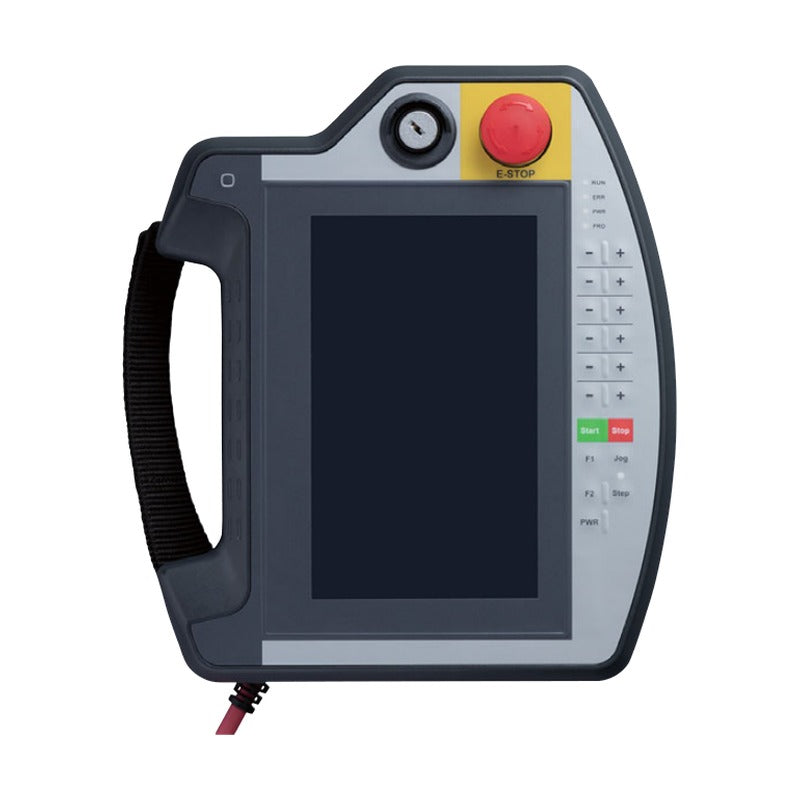

Sanyo Denki SANMOTION C S500 Teaching Pendant TP-C70

Sanyo Denki SANMOTION C S500 Teaching Pendant TP-C70

7-inch touch-screen teaching pendant for the SANMOTION C S500 robot controller, with junction box and bridge connector.

Key features

  • 7-inch TFT LCD (1024 x 600) touch screen with membrane switches
  • Emergency stop button (2 NC contacts) and 3-position enabling switch
  • Connects to the CPU module via junction box JBOX-01 (5 m cable), Ethernet 10/100 Mbps
  • IP65 protection rating, mass 950 g
  • Bridge connector AL-00920880-01 short-circuits the E-stop signal when no pendant is fitted

Specifications

Series SANMOTION C S500
Applicable controller SMC505 / SMC507 / SMC520
Communication Ethernet 10/100 Mbps
Pendant connection 17-pin circular connector
Operating temperature 0 to +40 C
Source Sanyo Denki SANMOTION C S500 catalogue S1059B002 '23.1, p. 4-7, 12, 15
TP-C70 Item: Teaching pendant | Description: 7-inch touch screen, E-stop | Protection: IP65
JBOX-01 Item: Junction box | Description: Included with TP-C70 | Protection: IP20
AL-00920880-01 Item: Bridge connector | Description: 17-pin E-stop short plug | Protection: -
Motion ControllersSanyo Denki
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION C S500 Teaching Pendant TP-C70

Brand Sanyo Denki·Motion Controllers

Available part numbers (3)

TP-C70, JBOX-01, AL-00920880-01
