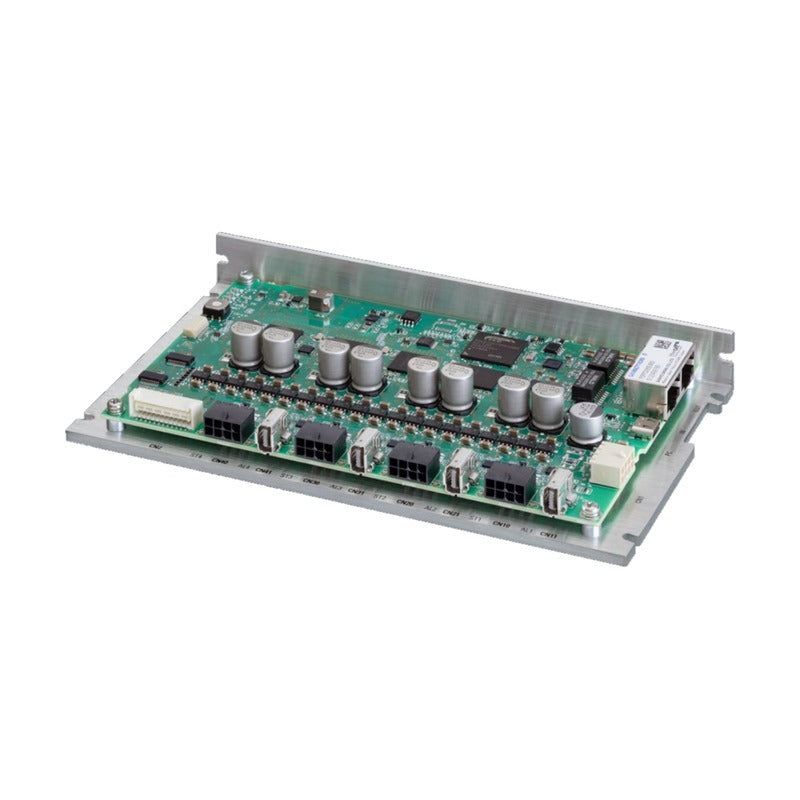

Sanyo Denki SANMOTION F Multi-Axis EtherCAT Stepping Driver (24 VDC)

SANMOTION F 2-axis and 4-axis integrated EtherCAT stepping drivers for 5-phase and 2-phase stepping motors.

Key features

EtherCAT communication with real-time monitoring and multi-axis synchronous control
Over 30% less volume and 20% less mass per axis than single-axis drivers
Up to 17% higher torque and 20% lower vibration vs. F5PFD280P100 system
Drives 5-phase (28/42/60 mm, 0.75-2.8 A) and 2-phase (28-60 mm, 1-4 A) motors
Certified Eco Product Plus

Specifications

Interface	EtherCAT
Main circuit	24 VDC ±10%
Control circuit	24 VDC ±10%
5-phase motors	28/42/60 mm; 0.75-2.8 A/phase
2-phase motors	28/35/42/56/60 mm; 1-4 A/phase
Source	Sanyo Denki SANMOTION F Multi-Axis EtherCAT Driver S1075B001, p. 1-4

F5PFD280E200		Axes: 2 \| Dimensions: 160 x 79 x 22 mm \| Mass: 0.2 kg
F5PFD280E400		Axes: 4 \| Dimensions: 180 x 108 x 22 mm \| Mass: 0.36 kg

Stepping DriversSanyo Denki

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION F Multi-Axis EtherCAT Stepping Driver (24 VDC)

Brand Sanyo Denki·Stepping Drivers

Available part numbers (2)

F5PFD280E200, F5PFD280E400

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
