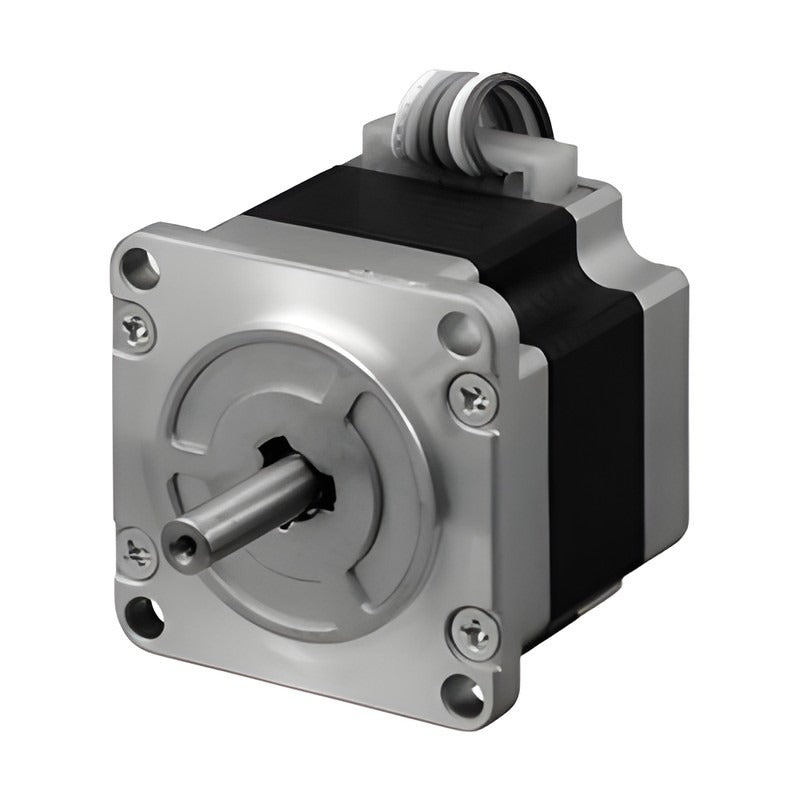

Sanyo Denki SANMOTION F2 103H670 Stepping Motor (50 mm sq., 1.8 deg)

Sanyo Denki SANMOTION F2 103H670 Stepping Motor (50 mm sq., 1.8 deg)

50 mm square 2-phase hybrid stepping motor with 1.8° full step angle in unipolar and bipolar lead-wire versions.

Key features

  • Holding torque 0.28 to 0.53 N·m
  • Unipolar 1, 2 or 3 A/phase; bipolar 2 A/phase
  • Motor lengths 39.8, 51.3 and 55.8 mm
  • Single and dual shaft versions
  • Dielectric strength 1000 VAC for 1 minute
  • Hollow shaft, custom shaft and encoder options on request

Specifications

Flange size 50 mm sq.
Full step angle 1.8°
Positional accuracy ±0.09°
Thermal class B (+130°C)
Operating temperature -10 to +50°C
Source Sanyo Denki SANMOTION F2 2-Phase Stepping Systems catalogue Ver.10.2, p. 52-54
103H6701-0140 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.28 N·m | Rated current: 1 A/phase | Motor length: 39.8 mm
103H6701-0110 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.28 N·m | Rated current: 1 A/phase | Motor length: 39.8 mm
103H6701-0440 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.28 N·m | Rated current: 2 A/phase | Motor length: 39.8 mm
103H6701-0410 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.28 N·m | Rated current: 2 A/phase | Motor length: 39.8 mm
103H6701-0740 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.28 N·m | Rated current: 3 A/phase | Motor length: 39.8 mm
103H6701-0710 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.28 N·m | Rated current: 3 A/phase | Motor length: 39.8 mm
103H6703-0140 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.49 N·m | Rated current: 1 A/phase | Motor length: 51.3 mm
103H6703-0110 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.49 N·m | Rated current: 1 A/phase | Motor length: 51.3 mm
103H6703-0440 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.49 N·m | Rated current: 2 A/phase | Motor length: 51.3 mm
103H6703-0410 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.49 N·m | Rated current: 2 A/phase | Motor length: 51.3 mm
103H6703-0740 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.49 N·m | Rated current: 3 A/phase | Motor length: 51.3 mm
103H6703-0710 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.49 N·m | Rated current: 3 A/phase | Motor length: 51.3 mm
103H6704-0140 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.52 N·m | Rated current: 1 A/phase | Motor length: 55.8 mm
103H6704-0110 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.52 N·m | Rated current: 1 A/phase | Motor length: 55.8 mm
103H6704-0440 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.52 N·m | Rated current: 2 A/phase | Motor length: 55.8 mm
103H6704-0410 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.52 N·m | Rated current: 2 A/phase | Motor length: 55.8 mm
103H6704-0740 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.53 N·m | Rated current: 3 A/phase | Motor length: 55.8 mm
103H6704-0710 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.53 N·m | Rated current: 3 A/phase | Motor length: 55.8 mm
103H6701-5040 Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.28 N·m | Rated current: 2 A/phase | Motor length: 39.8 mm
103H6701-5010 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.28 N·m | Rated current: 2 A/phase | Motor length: 39.8 mm
103H6703-5040 Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.49 N·m | Rated current: 2 A/phase | Motor length: 51.3 mm
103H6703-5010 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.49 N·m | Rated current: 2 A/phase | Motor length: 51.3 mm
103H6704-5040 Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.52 N·m | Rated current: 2 A/phase | Motor length: 55.8 mm
103H6704-5010 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.52 N·m | Rated current: 2 A/phase | Motor length: 55.8 mm
Stepping MotorsSanyo Denki
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION F2 103H670 Stepping Motor (50 mm sq., 1.8 deg)

Brand Sanyo Denki·Stepping Motors

Available part numbers (24)

103H6701-0140, 103H6701-0110, 103H6701-0440, 103H6701-0410, 103H6701-0740, 103H6701-0710, 103H6703-0140, 103H6703-0110, 103H6703-0440, 103H6703-0410 + 14 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
103H6701-0140Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.28 N·m | Rated current: 1 A/phase | Motor length: 39.8 mm
103H6701-0110Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.28 N·m | Rated current: 1 A/phase | Motor length: 39.8 mm
103H6701-0440Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.28 N·m | Rated current: 2 A/phase | Motor length: 39.8 mm
103H6701-0410Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.28 N·m | Rated current: 2 A/phase | Motor length: 39.8 mm
103H6701-0740Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.28 N·m | Rated current: 3 A/phase | Motor length: 39.8 mm
103H6701-0710Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.28 N·m | Rated current: 3 A/phase | Motor length: 39.8 mm
103H6703-0140Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.49 N·m | Rated current: 1 A/phase | Motor length: 51.3 mm
103H6703-0110Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.49 N·m | Rated current: 1 A/phase | Motor length: 51.3 mm
103H6703-0440Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.49 N·m | Rated current: 2 A/phase | Motor length: 51.3 mm
103H6703-0410Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.49 N·m | Rated current: 2 A/phase | Motor length: 51.3 mm
103H6703-0740Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.49 N·m | Rated current: 3 A/phase | Motor length: 51.3 mm
103H6703-0710Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.49 N·m | Rated current: 3 A/phase | Motor length: 51.3 mm
103H6704-0140Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.52 N·m | Rated current: 1 A/phase | Motor length: 55.8 mm
103H6704-0110Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.52 N·m | Rated current: 1 A/phase | Motor length: 55.8 mm
103H6704-0440Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.52 N·m | Rated current: 2 A/phase | Motor length: 55.8 mm
103H6704-0410Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.52 N·m | Rated current: 2 A/phase | Motor length: 55.8 mm
103H6704-0740Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.53 N·m | Rated current: 3 A/phase | Motor length: 55.8 mm
103H6704-0710Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.53 N·m | Rated current: 3 A/phase | Motor length: 55.8 mm
103H6701-5040Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.28 N·m | Rated current: 2 A/phase | Motor length: 39.8 mm
103H6701-5010Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.28 N·m | Rated current: 2 A/phase | Motor length: 39.8 mm
103H6703-5040Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.49 N·m | Rated current: 2 A/phase | Motor length: 51.3 mm
103H6703-5010Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.49 N·m | Rated current: 2 A/phase | Motor length: 51.3 mm
103H6704-5040Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.52 N·m | Rated current: 2 A/phase | Motor length: 55.8 mm
103H6704-5010Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.52 N·m | Rated current: 2 A/phase | Motor length: 55.8 mm
