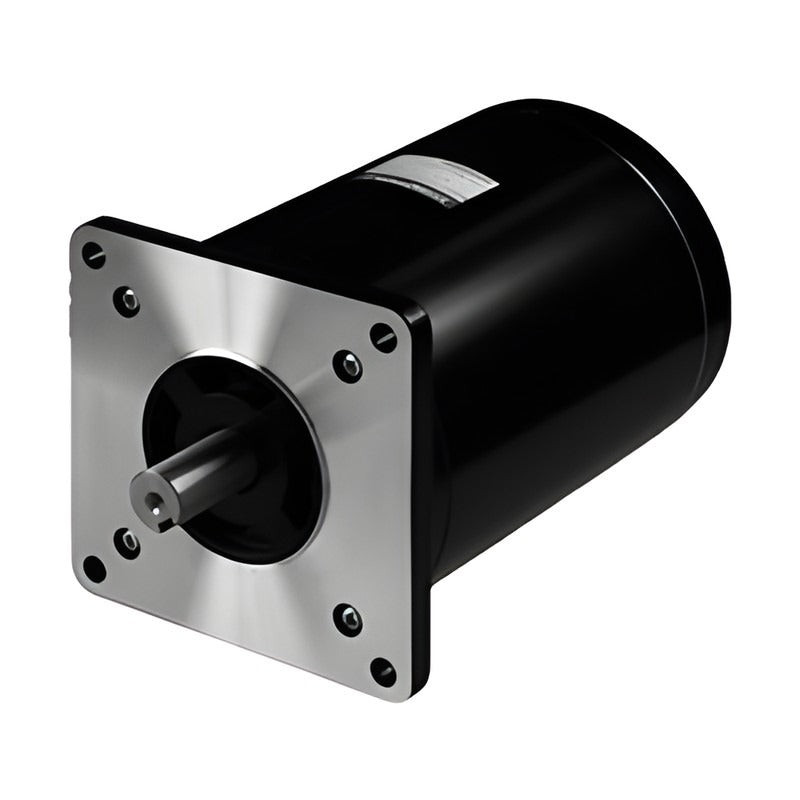

Sanyo Denki SANMOTION F2 103H8922 Stepping Motor (dia. 106 mm)

Sanyo Denki SANMOTION F2 103H8922 Stepping Motor (dia. 106 mm)

Large ø106 mm 2-phase hybrid stepping motor with 1.8° full step angle and up to 19 N·m holding torque.

Key features

  • Holding torque 10.8 to 19 N·m
  • Unipolar 4 A/phase and bipolar 6 A/phase windings
  • Motor lengths 163.3 and 221.3 mm
  • Single and dual shaft versions
  • Lead wire UL 1430, 18 AWG
  • Brake, hollow and custom shaft options on request

Specifications

Flange size ø106 mm
Full step angle 1.8°
Positional accuracy ±0.09°
Thermal class B (+130°C)
Operating temperature -10 to +50°C
Source Sanyo Denki SANMOTION F2 2-Phase Stepping Systems catalogue Ver.10.2, p. 68
103H89222-0941 Winding: Unipolar, lead | Shaft: Single | Holding torque: 10.8 N·m | Rated current: 4 A/phase | Motor length: 163.3 mm
103H89222-0911 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 10.8 N·m | Rated current: 4 A/phase | Motor length: 163.3 mm
103H89223-0941 Winding: Unipolar, lead | Shaft: Single | Holding torque: 15.5 N·m | Rated current: 4 A/phase | Motor length: 221.3 mm
103H89223-0911 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 15.5 N·m | Rated current: 4 A/phase | Motor length: 221.3 mm
103H89222-5241 Winding: Bipolar, lead | Shaft: Single | Holding torque: 13.2 N·m | Rated current: 6 A/phase | Motor length: 163.3 mm
103H89222-5211 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 13.2 N·m | Rated current: 6 A/phase | Motor length: 163.3 mm
103H89223-5241 Winding: Bipolar, lead | Shaft: Single | Holding torque: 19 N·m | Rated current: 6 A/phase | Motor length: 221.3 mm
103H89223-5211 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 19 N·m | Rated current: 6 A/phase | Motor length: 221.3 mm
Stepping MotorsSanyo Denki
8 product codes available in this family
