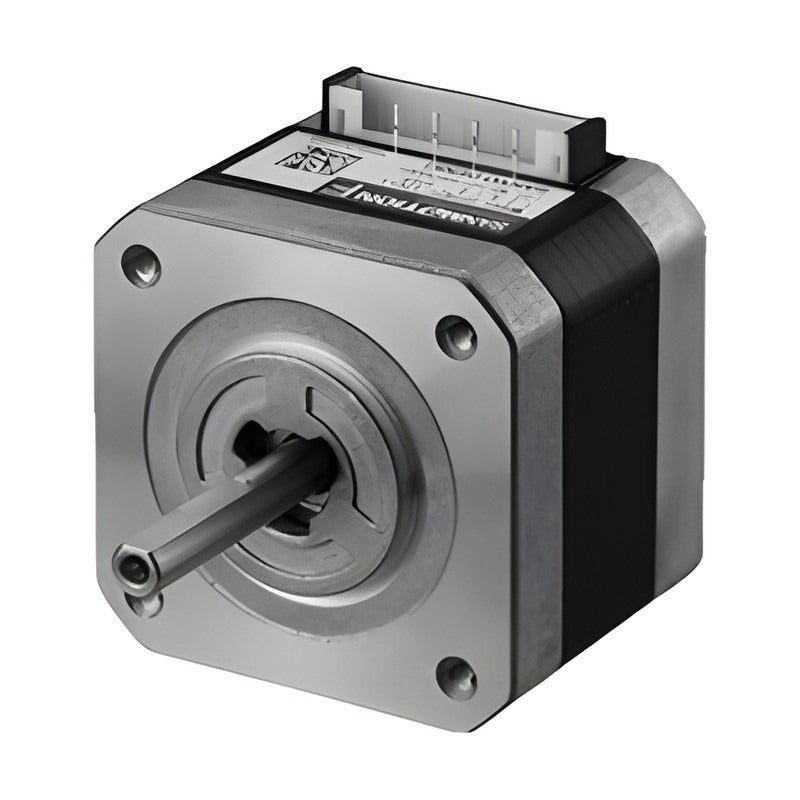

Sanyo Denki SANMOTION F2 SF242 Stepping Motor (42 mm sq., connector)

Sanyo Denki SANMOTION F2 SF242 Stepping Motor (42 mm sq., connector)

42 mm square 2-phase hybrid stepping motor with 1.8° full step angle and connector-type winding termination.

Key features

  • Holding torque 0.22 to 0.8 N·m
  • Unipolar 1.2 A/phase and bipolar 1 A/phase versions
  • Connector type; separate motor cables 4835774-1 / 4835775-1
  • Motor lengths 33 to 59.5 mm
  • Bipolar models (SF242x-10Bx1) run on F2BED200P100 driver
  • Gear, encoder and brake options on request

Specifications

Flange size 42 mm sq.
Full step angle 1.8°
Positional accuracy ±0.09°
Thermal class B (+130°C)
Operating temperature -10 to +50°C
Source Sanyo Denki SANMOTION F2 2-Phase Stepping Systems catalogue Ver.10.2, p. 50-51
SF2421-12U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 0.22 N·m | Rated current: 1.2 A/phase | Motor length: 33 mm
SF2421-12U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 0.22 N·m | Rated current: 1.2 A/phase | Motor length: 33 mm
SF2422-12U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 0.33 N·m | Rated current: 1.2 A/phase | Motor length: 39 mm
SF2422-12U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 0.33 N·m | Rated current: 1.2 A/phase | Motor length: 39 mm
SF2423-12U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 0.4 N·m | Rated current: 1.2 A/phase | Motor length: 48 mm
SF2423-12U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 0.4 N·m | Rated current: 1.2 A/phase | Motor length: 48 mm
SF2424-12U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 0.58 N·m | Rated current: 1.2 A/phase | Motor length: 59.5 mm
SF2424-12U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 0.58 N·m | Rated current: 1.2 A/phase | Motor length: 59.5 mm
SF2421-10B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 0.29 N·m | Rated current: 1 A/phase | Motor length: 33 mm
SF2421-10B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 0.29 N·m | Rated current: 1 A/phase | Motor length: 33 mm
SF2422-10B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 0.43 N·m | Rated current: 1 A/phase | Motor length: 39 mm
SF2422-10B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 0.43 N·m | Rated current: 1 A/phase | Motor length: 39 mm
SF2423-10B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 0.56 N·m | Rated current: 1 A/phase | Motor length: 48 mm
SF2423-10B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 0.56 N·m | Rated current: 1 A/phase | Motor length: 48 mm
SF2424-10B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 0.8 N·m | Rated current: 1 A/phase | Motor length: 59.5 mm
SF2424-10B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 0.8 N·m | Rated current: 1 A/phase | Motor length: 59.5 mm
