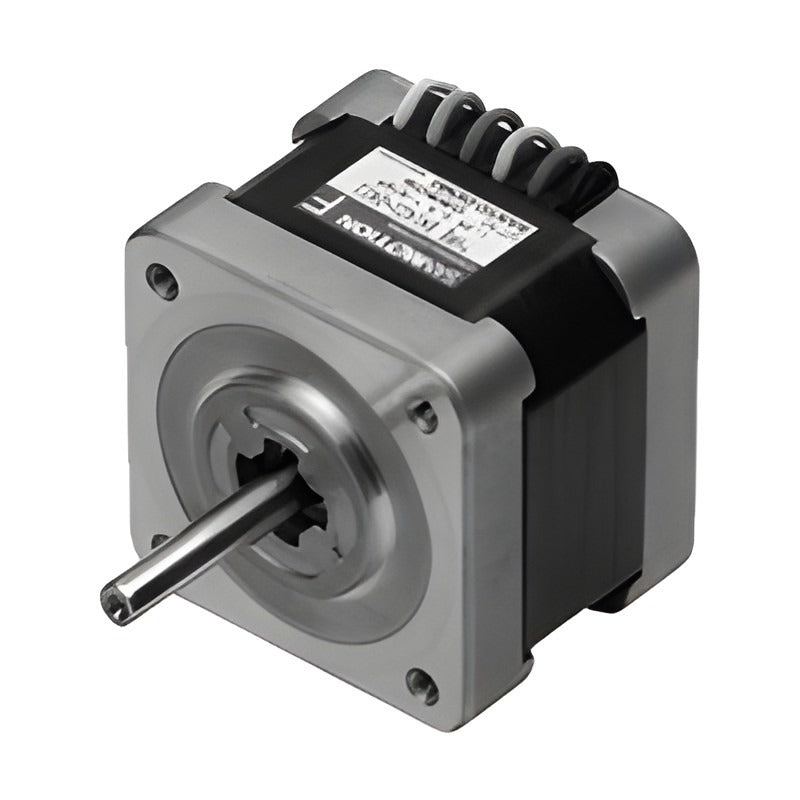

Sanyo Denki SANMOTION F2 SH142 Stepping Motor (42 mm sq., 0.9 deg)

Sanyo Denki SANMOTION F2 SH142 Stepping Motor (42 mm sq., 0.9 deg)

High-resolution 42 mm square 2-phase hybrid stepping motor with 0.9° full step angle (400 steps/rev).

Key features

  • 0.9° full step angle for fine positioning
  • Holding torque 0.2 to 0.48 N·m
  • Unipolar 1.2 A/phase, bipolar 1 or 2 A/phase windings
  • Motor lengths 33, 39 and 48 mm
  • Bipolar 2 A/phase models (SH142x-52x1) run on F2BED200P100 driver
  • Gear, encoder, hollow and custom shaft options on request

Specifications

Flange size 42 mm sq.
Full step angle 0.9°
Positional accuracy ±0.054°
Thermal class B (+130°C)
Operating temperature -10 to +50°C
Source Sanyo Denki SANMOTION F2 2-Phase Stepping Systems catalogue Ver.10.2, p. 47-48
SH1421-0441 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.2 N·m | Rated current: 1.2 A/phase | Motor length: 33 mm
SH1421-0411 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.2 N·m | Rated current: 1.2 A/phase | Motor length: 33 mm
SH1422-0441 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.29 N·m | Rated current: 1.2 A/phase | Motor length: 39 mm
SH1422-0411 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.29 N·m | Rated current: 1.2 A/phase | Motor length: 39 mm
SH1424-0441 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.39 N·m | Rated current: 1.2 A/phase | Motor length: 48 mm
SH1424-0411 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.39 N·m | Rated current: 1.2 A/phase | Motor length: 48 mm
SH1421-5041 Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.23 N·m | Rated current: 1 A/phase | Motor length: 33 mm
SH1421-5011 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.23 N·m | Rated current: 1 A/phase | Motor length: 33 mm
SH1421-5241 Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.23 N·m | Rated current: 2 A/phase | Motor length: 33 mm
SH1421-5211 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.23 N·m | Rated current: 2 A/phase | Motor length: 33 mm
SH1422-5041 Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.34 N·m | Rated current: 1 A/phase | Motor length: 39 mm
SH1422-5011 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.34 N·m | Rated current: 1 A/phase | Motor length: 39 mm
SH1422-5241 Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.34 N·m | Rated current: 2 A/phase | Motor length: 39 mm
SH1422-5211 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.34 N·m | Rated current: 2 A/phase | Motor length: 39 mm
SH1424-5041 Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.48 N·m | Rated current: 1 A/phase | Motor length: 48 mm
SH1424-5011 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.48 N·m | Rated current: 1 A/phase | Motor length: 48 mm
SH1424-5241 Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.48 N·m | Rated current: 2 A/phase | Motor length: 48 mm
SH1424-5211 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.48 N·m | Rated current: 2 A/phase | Motor length: 48 mm
