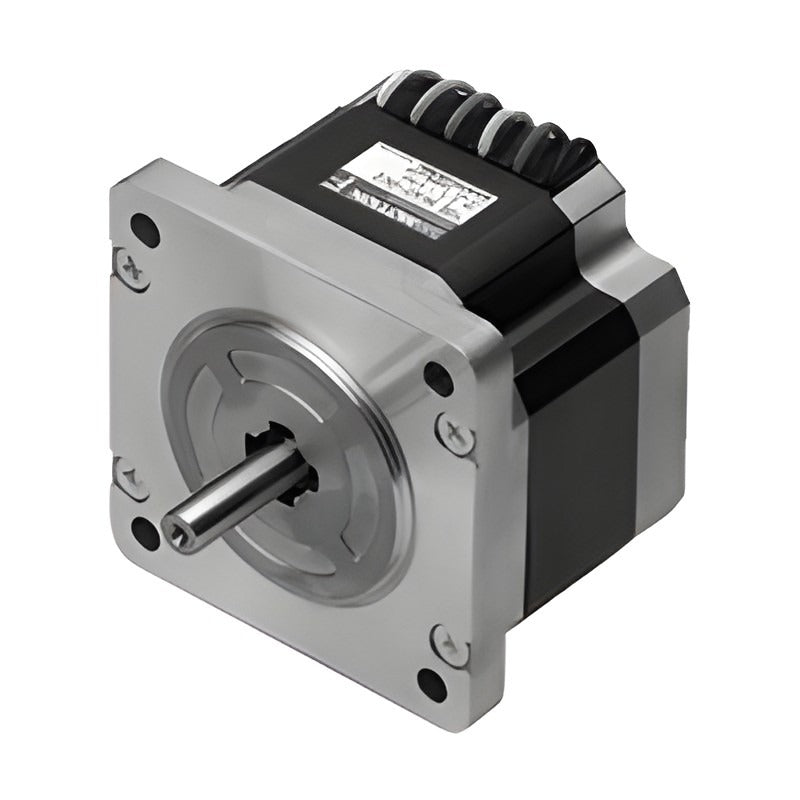

Sanyo Denki SANMOTION F2 SH160 Stepping Motor (60 mm sq., 0.9 deg)

High-resolution 60 mm square 2-phase hybrid stepping motor with 0.9° full step angle in unipolar and bipolar versions.

Key features

0.9° full step angle (400 steps/rev)
Holding torque 0.57 to 2.15 N·m
Unipolar and bipolar windings, 2 A/phase
Motor lengths 42, 54 and 76 mm
Bipolar models (SH160x-52x0) run on F2BED200P100 driver
Gear, encoder, hollow and custom shaft options on request

Specifications

Rated current	2 A/phase
Flange size	60 mm sq.
Full step angle	0.9°
Positional accuracy	±0.054°
Thermal class	B (+130°C)
Operating temperature	-10 to +50°C
Source	Sanyo Denki SANMOTION F2 2-Phase Stepping Systems catalogue Ver.10.2, p. 62-63

SH1601-0440		Winding: Unipolar, lead \| Shaft: Single \| Holding torque: 0.57 N·m \| Motor length: 42 mm
SH1601-0410		Winding: Unipolar, lead \| Shaft: Dual \| Holding torque: 0.57 N·m \| Motor length: 42 mm
SH1602-0440		Winding: Unipolar, lead \| Shaft: Single \| Holding torque: 1.1 N·m \| Motor length: 54 mm
SH1602-0410		Winding: Unipolar, lead \| Shaft: Dual \| Holding torque: 1.1 N·m \| Motor length: 54 mm
SH1603-0440		Winding: Unipolar, lead \| Shaft: Single \| Holding torque: 1.7 N·m \| Motor length: 76 mm
SH1603-0410		Winding: Unipolar, lead \| Shaft: Dual \| Holding torque: 1.7 N·m \| Motor length: 76 mm
SH1601-5240		Winding: Bipolar, lead \| Shaft: Single \| Holding torque: 0.69 N·m \| Motor length: 42 mm
SH1601-5210		Winding: Bipolar, lead \| Shaft: Dual \| Holding torque: 0.69 N·m \| Motor length: 42 mm
SH1602-5240		Winding: Bipolar, lead \| Shaft: Single \| Holding torque: 1.28 N·m \| Motor length: 54 mm
SH1602-5210		Winding: Bipolar, lead \| Shaft: Dual \| Holding torque: 1.28 N·m \| Motor length: 54 mm
SH1603-5240		Winding: Bipolar, lead \| Shaft: Single \| Holding torque: 2.15 N·m \| Motor length: 76 mm
SH1603-5210		Winding: Bipolar, lead \| Shaft: Dual \| Holding torque: 2.15 N·m \| Motor length: 76 mm

Stepping MotorsSanyo Denki

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION F2 SH160 Stepping Motor (60 mm sq., 0.9 deg)

Brand Sanyo Denki·Stepping Motors

Available part numbers (12)

SH1601-0440, SH1601-0410, SH1602-0440, SH1602-0410, SH1603-0440, SH1603-0410, SH1601-5240, SH1601-5210, SH1602-5240, SH1602-5210 + 2 more — see full table ↓
