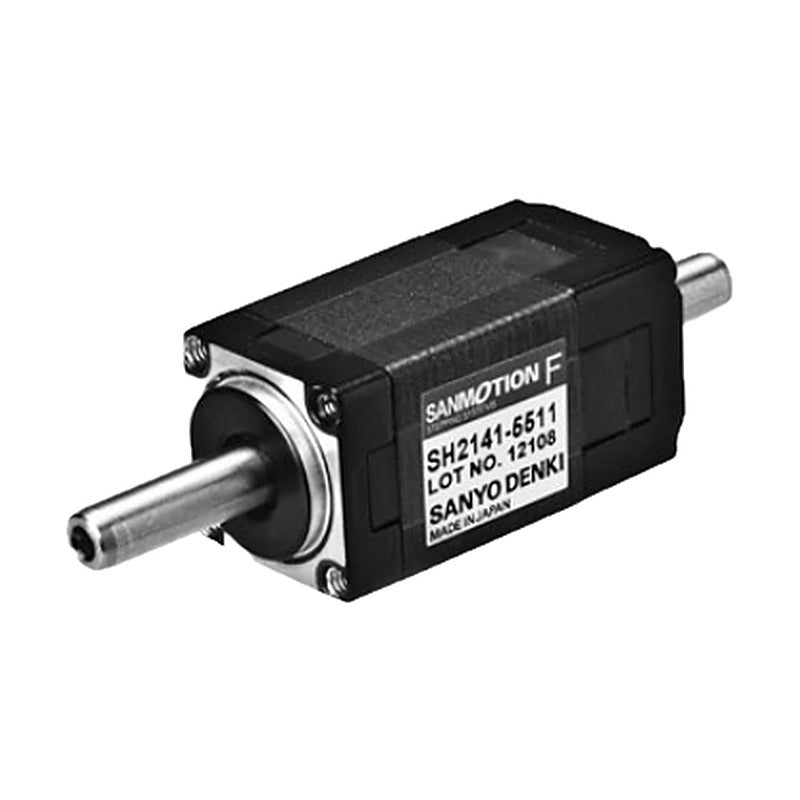

Sanyo Denki SANMOTION F2 SH214 Stepping Motor (14 mm sq., 1.8 deg)

Sanyo Denki SANMOTION F2 SH214 Stepping Motor (14 mm sq., 1.8 deg)

Ultra-compact 14 mm square 2-phase hybrid stepping motor with 1.8° full step angle and bipolar lead-wire winding.

Key features

  • Ultra-compact 14 mm square flange
  • Holding torque 0.0065 to 0.01 N·m
  • Bipolar winding with lead wires (UL 3265, 28 AWG)
  • Single and dual shaft versions
  • D-shaped output shaft
  • Hollow shaft and custom shaft options on request

Specifications

Winding Bipolar, lead
Flange size 14 mm sq.
Full step angle 1.8°
Positional accuracy ±0.09°
Thermal class B (+130°C)
Operating temperature -10 to +50°C
Source Sanyo Denki SANMOTION F2 2-Phase Stepping Systems catalogue Ver.10.2, p. 42
SH2141-5541 Shaft: Single | Holding torque: 0.0065 N·m | Rated current: 0.3 A/phase | Motor length: 30 mm
SH2141-5511 Shaft: Dual | Holding torque: 0.0065 N·m | Rated current: 0.3 A/phase | Motor length: 30 mm
SH2145-5641 Shaft: Single | Holding torque: 0.01 N·m | Rated current: 0.4 A/phase | Motor length: 43.8 mm
SH2145-5611 Shaft: Dual | Holding torque: 0.01 N·m | Rated current: 0.4 A/phase | Motor length: 43.8 mm
Stepping MotorsSanyo Denki
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION F2 SH214 Stepping Motor (14 mm sq., 1.8 deg)

Brand Sanyo Denki·Stepping Motors

Available part numbers (4)

SH2141-5541, SH2141-5511, SH2145-5641, SH2145-5611

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SH2141-5541Shaft: Single | Holding torque: 0.0065 N·m | Rated current: 0.3 A/phase | Motor length: 30 mm
SH2141-5511Shaft: Dual | Holding torque: 0.0065 N·m | Rated current: 0.3 A/phase | Motor length: 30 mm
SH2145-5641Shaft: Single | Holding torque: 0.01 N·m | Rated current: 0.4 A/phase | Motor length: 43.8 mm
SH2145-5611Shaft: Dual | Holding torque: 0.01 N·m | Rated current: 0.4 A/phase | Motor length: 43.8 mm
