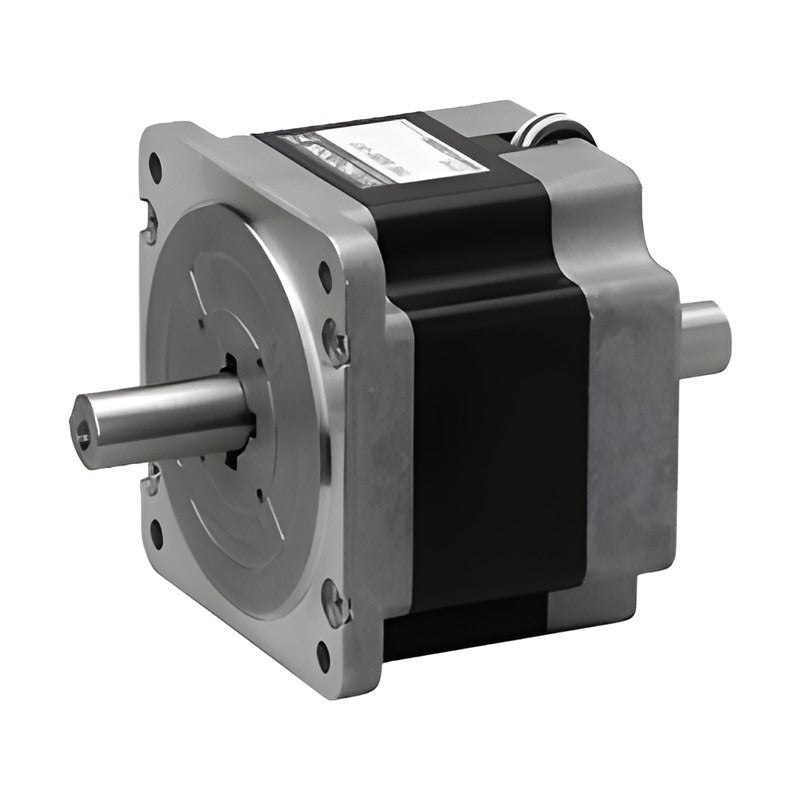

Sanyo Denki SANMOTION F2 SH286 Stepping Motor (86 mm sq., 1.8 deg)

Sanyo Denki SANMOTION F2 SH286 Stepping Motor (86 mm sq., 1.8 deg)

86 mm square 2-phase hybrid stepping motor with 1.8° full step angle in unipolar and bipolar lead-wire versions.

Key features

  • Holding torque 2.5 to 9 N·m
  • Unipolar 2/4 A/phase, bipolar 2/4/6 A/phase windings
  • Motor lengths 66, 96.5 and 127 mm
  • Bipolar 2 A models fit F2BED200P100; 4 A models fit F2BFD400P100
  • Single and dual shaft versions
  • Encoder, brake, hollow and custom shaft options

Specifications

Flange size 86 mm sq.
Full step angle 1.8°
Positional accuracy ±0.09°
Thermal class B (+130°C)
Operating temperature -10 to +50°C
Source Sanyo Denki SANMOTION F2 2-Phase Stepping Systems catalogue Ver.10.2, p. 64-67
SH2861-0441 Winding: Unipolar, lead | Shaft: Single | Holding torque: 2.5 N·m | Rated current: 2 A/phase | Motor length: 66 mm
SH2861-0411 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 2.5 N·m | Rated current: 2 A/phase | Motor length: 66 mm
SH2861-0941 Winding: Unipolar, lead | Shaft: Single | Holding torque: 2.5 N·m | Rated current: 4 A/phase | Motor length: 66 mm
SH2861-0911 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 2.5 N·m | Rated current: 4 A/phase | Motor length: 66 mm
SH2862-0441 Winding: Unipolar, lead | Shaft: Single | Holding torque: 4.7 N·m | Rated current: 2 A/phase | Motor length: 96.5 mm
SH2862-0411 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 4.7 N·m | Rated current: 2 A/phase | Motor length: 96.5 mm
SH2862-0941 Winding: Unipolar, lead | Shaft: Single | Holding torque: 4.7 N·m | Rated current: 4 A/phase | Motor length: 96.5 mm
SH2862-0911 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 4.7 N·m | Rated current: 4 A/phase | Motor length: 96.5 mm
SH2863-0441 Winding: Unipolar, lead | Shaft: Single | Holding torque: 6.7 N·m | Rated current: 2 A/phase | Motor length: 127 mm
SH2863-0411 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 6.7 N·m | Rated current: 2 A/phase | Motor length: 127 mm
SH2863-0941 Winding: Unipolar, lead | Shaft: Single | Holding torque: 6.7 N·m | Rated current: 4 A/phase | Motor length: 127 mm
SH2863-0911 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 6.7 N·m | Rated current: 4 A/phase | Motor length: 127 mm
SH2861-5041 Winding: Bipolar, lead | Shaft: Single | Holding torque: 3.3 N·m | Rated current: 2 A/phase | Motor length: 66 mm
SH2861-5011 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 3.3 N·m | Rated current: 2 A/phase | Motor length: 66 mm
SH2861-5141 Winding: Bipolar, lead | Shaft: Single | Holding torque: 3.3 N·m | Rated current: 4 A/phase | Motor length: 66 mm
SH2861-5111 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 3.3 N·m | Rated current: 4 A/phase | Motor length: 66 mm
SH2861-5241 Winding: Bipolar, lead | Shaft: Single | Holding torque: 3.3 N·m | Rated current: 6 A/phase | Motor length: 66 mm
SH2861-5211 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 3.3 N·m | Rated current: 6 A/phase | Motor length: 66 mm
SH2862-5041 Winding: Bipolar, lead | Shaft: Single | Holding torque: 6.4 N·m | Rated current: 2 A/phase | Motor length: 96.5 mm
SH2862-5011 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 6.4 N·m | Rated current: 2 A/phase | Motor length: 96.5 mm
SH2862-5141 Winding: Bipolar, lead | Shaft: Single | Holding torque: 6.4 N·m | Rated current: 4 A/phase | Motor length: 96.5 mm
SH2862-5111 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 6.4 N·m | Rated current: 4 A/phase | Motor length: 96.5 mm
SH2862-5241 Winding: Bipolar, lead | Shaft: Single | Holding torque: 6.4 N·m | Rated current: 6 A/phase | Motor length: 96.5 mm
SH2862-5211 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 6.4 N·m | Rated current: 6 A/phase | Motor length: 96.5 mm
SH2863-5041 Winding: Bipolar, lead | Shaft: Single | Holding torque: 9 N·m | Rated current: 2 A/phase | Motor length: 127 mm
SH2863-5011 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 9 N·m | Rated current: 2 A/phase | Motor length: 127 mm
SH2863-5141 Winding: Bipolar, lead | Shaft: Single | Holding torque: 9 N·m | Rated current: 4 A/phase | Motor length: 127 mm
SH2863-5111 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 9 N·m | Rated current: 4 A/phase | Motor length: 127 mm
SH2863-5241 Winding: Bipolar, lead | Shaft: Single | Holding torque: 9 N·m | Rated current: 6 A/phase | Motor length: 127 mm
SH2863-5211 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 9 N·m | Rated current: 6 A/phase | Motor length: 127 mm
