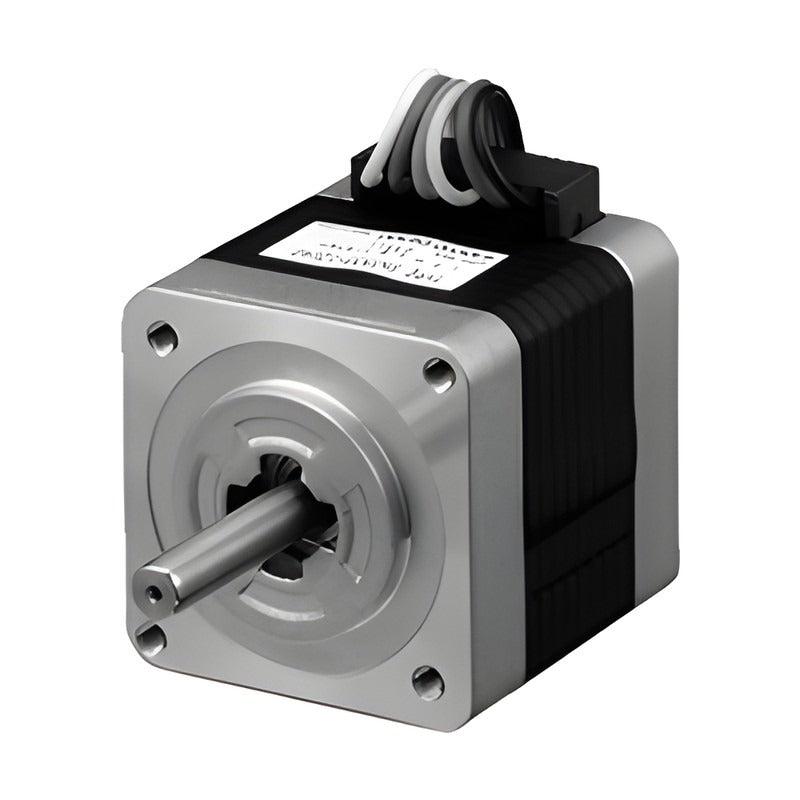

Sanyo Denki SANMOTION F2 SH35 Stepping Motor (35 mm sq., 1.8 deg)

Sanyo Denki SANMOTION F2 SH35 Stepping Motor (35 mm sq., 1.8 deg)

35 mm square 2-phase hybrid stepping motor with 1.8° full step angle in unipolar and bipolar lead-wire versions.

Key features

  • Holding torque 0.12 to 0.32 N·m
  • Unipolar 1.2 A/phase and bipolar 1 A/phase windings
  • Motor lengths 33, 37 and 52 mm
  • Single and dual shaft versions
  • Lead wire UL 1007, 26 AWG
  • Hollow shaft and custom shaft options on request

Specifications

Flange size 35 mm sq.
Full step angle 1.8°
Positional accuracy ±0.09°
Thermal class B (+130°C)
Operating temperature -10 to +50°C
Source Sanyo Denki SANMOTION F2 2-Phase Stepping Systems catalogue Ver.10.2, p. 45-46
SH3533-12U40 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.12 N·m | Rated current: 1.2 A/phase | Motor length: 33 mm
SH3533-12U10 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.12 N·m | Rated current: 1.2 A/phase | Motor length: 33 mm
SH3537-12U40 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.15 N·m | Rated current: 1.2 A/phase | Motor length: 37 mm
SH3537-12U10 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.15 N·m | Rated current: 1.2 A/phase | Motor length: 37 mm
SH3552-12U40 Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.23 N·m | Rated current: 1.2 A/phase | Motor length: 52 mm
SH3552-12U10 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.23 N·m | Rated current: 1.2 A/phase | Motor length: 52 mm
SH3533-10B40 Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.155 N·m | Rated current: 1 A/phase | Motor length: 33 mm
SH3533-10B10 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.155 N·m | Rated current: 1 A/phase | Motor length: 33 mm
SH3537-10B40 Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.195 N·m | Rated current: 1 A/phase | Motor length: 37 mm
SH3537-10B10 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.195 N·m | Rated current: 1 A/phase | Motor length: 37 mm
SH3552-10B40 Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.32 N·m | Rated current: 1 A/phase | Motor length: 52 mm
SH3552-10B10 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.32 N·m | Rated current: 1 A/phase | Motor length: 52 mm
Stepping MotorsSanyo Denki
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION F2 SH35 Stepping Motor (35 mm sq., 1.8 deg)

Brand Sanyo Denki·Stepping Motors

Available part numbers (12)

SH3533-12U40, SH3533-12U10, SH3537-12U40, SH3537-12U10, SH3552-12U40, SH3552-12U10, SH3533-10B40, SH3533-10B10, SH3537-10B40, SH3537-10B10 + 2 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SH3533-12U40Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.12 N·m | Rated current: 1.2 A/phase | Motor length: 33 mm
SH3533-12U10Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.12 N·m | Rated current: 1.2 A/phase | Motor length: 33 mm
SH3537-12U40Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.15 N·m | Rated current: 1.2 A/phase | Motor length: 37 mm
SH3537-12U10Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.15 N·m | Rated current: 1.2 A/phase | Motor length: 37 mm
SH3552-12U40Winding: Unipolar, lead | Shaft: Single | Holding torque: 0.23 N·m | Rated current: 1.2 A/phase | Motor length: 52 mm
SH3552-12U10Winding: Unipolar, lead | Shaft: Dual | Holding torque: 0.23 N·m | Rated current: 1.2 A/phase | Motor length: 52 mm
SH3533-10B40Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.155 N·m | Rated current: 1 A/phase | Motor length: 33 mm
SH3533-10B10Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.155 N·m | Rated current: 1 A/phase | Motor length: 33 mm
SH3537-10B40Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.195 N·m | Rated current: 1 A/phase | Motor length: 37 mm
SH3537-10B10Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.195 N·m | Rated current: 1 A/phase | Motor length: 37 mm
SH3552-10B40Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.32 N·m | Rated current: 1 A/phase | Motor length: 52 mm
SH3552-10B10Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.32 N·m | Rated current: 1 A/phase | Motor length: 52 mm
