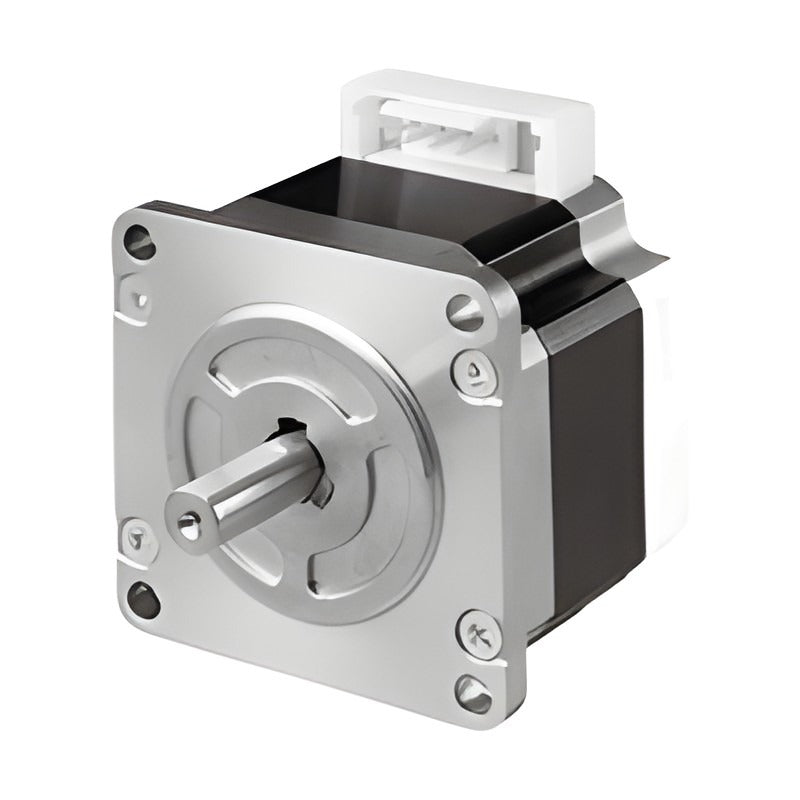

Sanyo Denki SANMOTION F2 SM256 Stepping Motor (56 mm sq., UL)

Sanyo Denki SANMOTION F2 SM256 Stepping Motor (56 mm sq., UL)

UL-recognized 56 mm square 2-phase hybrid stepping motor with 1.8° full step angle and connector-type termination.

Key features

  • Holding torque 0.53 to 2.5 N·m
  • Unipolar 1/2/3 A/phase and bipolar 1/2/3/4/6 A/phase windings
  • UL 1004-1/1004-6 and cUL recognized (File E179832)
  • Connector type; motor cables 4837798-1 (unipolar) / 4837961-1 (bipolar)
  • Bipolar 2 A models fit F2BED200P100; 3/4 A models fit F2BFD400P100
  • Gear, encoder, brake, hollow and custom shaft options

Specifications

Flange size 56 mm sq.
Full step angle 1.8°
Positional accuracy ±0.054°
Thermal class B (+130°C), A for UL
Operating temperature -10 to +50°C
Source Sanyo Denki SANMOTION F2 2-Phase Stepping Systems catalogue Ver.10.2, p. 56-60
SM2561C10U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 0.53 N·m | Rated current: 1 A/phase | Motor length: 41.8 mm
SM2561C10U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 0.53 N·m | Rated current: 1 A/phase | Motor length: 41.8 mm
SM2561C20U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 0.53 N·m | Rated current: 2 A/phase | Motor length: 41.8 mm
SM2561C20U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 0.53 N·m | Rated current: 2 A/phase | Motor length: 41.8 mm
SM2561C30U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 0.53 N·m | Rated current: 3 A/phase | Motor length: 41.8 mm
SM2561C30U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 0.53 N·m | Rated current: 3 A/phase | Motor length: 41.8 mm
SM2562C10U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 1.1 N·m | Rated current: 1 A/phase | Motor length: 53.8 mm
SM2562C10U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 1.1 N·m | Rated current: 1 A/phase | Motor length: 53.8 mm
SM2562C20U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 1.1 N·m | Rated current: 2 A/phase | Motor length: 53.8 mm
SM2562C20U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 1.1 N·m | Rated current: 2 A/phase | Motor length: 53.8 mm
SM2562C30U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 1.1 N·m | Rated current: 3 A/phase | Motor length: 53.8 mm
SM2562C30U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 1.1 N·m | Rated current: 3 A/phase | Motor length: 53.8 mm
SM2563C10U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 1.7 N·m | Rated current: 1 A/phase | Motor length: 75.8 mm
SM2563C10U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 1.7 N·m | Rated current: 1 A/phase | Motor length: 75.8 mm
SM2563C20U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 1.7 N·m | Rated current: 2 A/phase | Motor length: 75.8 mm
SM2563C20U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 1.7 N·m | Rated current: 2 A/phase | Motor length: 75.8 mm
SM2563C30U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 1.7 N·m | Rated current: 3 A/phase | Motor length: 75.8 mm
SM2563C30U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 1.7 N·m | Rated current: 3 A/phase | Motor length: 75.8 mm
SM2564C10U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 1.75 N·m | Rated current: 1 A/phase | Motor length: 85.8 mm
SM2564C10U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 1.75 N·m | Rated current: 1 A/phase | Motor length: 85.8 mm
SM2564C20U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 1.75 N·m | Rated current: 2 A/phase | Motor length: 85.8 mm
SM2564C20U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 1.75 N·m | Rated current: 2 A/phase | Motor length: 85.8 mm
SM2564C30U41 Winding: Unipolar, connector | Shaft: Single | Holding torque: 1.75 N·m | Rated current: 3 A/phase | Motor length: 85.8 mm
SM2564C30U11 Winding: Unipolar, connector | Shaft: Dual | Holding torque: 1.75 N·m | Rated current: 3 A/phase | Motor length: 85.8 mm
SM2561C10B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 0.75 N·m | Rated current: 1 A/phase | Motor length: 41.8 mm
SM2561C10B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 0.75 N·m | Rated current: 1 A/phase | Motor length: 41.8 mm
SM2561C20B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 0.75 N·m | Rated current: 2 A/phase | Motor length: 41.8 mm
SM2561C20B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 0.75 N·m | Rated current: 2 A/phase | Motor length: 41.8 mm
SM2561C30B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 0.75 N·m | Rated current: 3 A/phase | Motor length: 41.8 mm
SM2561C30B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 0.75 N·m | Rated current: 3 A/phase | Motor length: 41.8 mm
SM2561C40B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 0.75 N·m | Rated current: 4 A/phase | Motor length: 41.8 mm
SM2561C40B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 0.75 N·m | Rated current: 4 A/phase | Motor length: 41.8 mm
SM2561C60B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 0.75 N·m | Rated current: 6 A/phase | Motor length: 41.8 mm
SM2561C60B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 0.75 N·m | Rated current: 6 A/phase | Motor length: 41.8 mm
SM2562C10B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 1.4 N·m | Rated current: 1 A/phase | Motor length: 53.8 mm
SM2562C10B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 1.4 N·m | Rated current: 1 A/phase | Motor length: 53.8 mm
SM2562C20B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 1.4 N·m | Rated current: 2 A/phase | Motor length: 53.8 mm
SM2562C20B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 1.4 N·m | Rated current: 2 A/phase | Motor length: 53.8 mm
SM2562C30B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 1.4 N·m | Rated current: 3 A/phase | Motor length: 53.8 mm
SM2562C30B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 1.4 N·m | Rated current: 3 A/phase | Motor length: 53.8 mm
SM2562C40B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 1.4 N·m | Rated current: 4 A/phase | Motor length: 53.8 mm
SM2562C40B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 1.4 N·m | Rated current: 4 A/phase | Motor length: 53.8 mm
SM2562C60B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 1.4 N·m | Rated current: 6 A/phase | Motor length: 53.8 mm
SM2562C60B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 1.4 N·m | Rated current: 6 A/phase | Motor length: 53.8 mm
SM2563C10B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 2.35 N·m | Rated current: 1 A/phase | Motor length: 75.8 mm
SM2563C10B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 2.35 N·m | Rated current: 1 A/phase | Motor length: 75.8 mm
SM2563C20B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 2.35 N·m | Rated current: 2 A/phase | Motor length: 75.8 mm
SM2563C20B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 2.35 N·m | Rated current: 2 A/phase | Motor length: 75.8 mm
SM2563C30B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 2.35 N·m | Rated current: 3 A/phase | Motor length: 75.8 mm
SM2563C30B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 2.35 N·m | Rated current: 3 A/phase | Motor length: 75.8 mm
SM2563C40B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 2.35 N·m | Rated current: 4 A/phase | Motor length: 75.8 mm
SM2563C40B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 2.35 N·m | Rated current: 4 A/phase | Motor length: 75.8 mm
SM2563C60B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 2.35 N·m | Rated current: 6 A/phase | Motor length: 75.8 mm
SM2563C60B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 2.35 N·m | Rated current: 6 A/phase | Motor length: 75.8 mm
SM2564C10B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 2.5 N·m | Rated current: 1 A/phase | Motor length: 85.8 mm
SM2564C10B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 2.5 N·m | Rated current: 1 A/phase | Motor length: 85.8 mm
SM2564C20B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 2.5 N·m | Rated current: 2 A/phase | Motor length: 85.8 mm
SM2564C20B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 2.5 N·m | Rated current: 2 A/phase | Motor length: 85.8 mm
SM2564C30B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 2.5 N·m | Rated current: 3 A/phase | Motor length: 85.8 mm
SM2564C30B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 2.5 N·m | Rated current: 3 A/phase | Motor length: 85.8 mm
SM2564C40B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 2.5 N·m | Rated current: 4 A/phase | Motor length: 85.8 mm
SM2564C40B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 2.5 N·m | Rated current: 4 A/phase | Motor length: 85.8 mm
SM2564C60B41 Winding: Bipolar, connector | Shaft: Single | Holding torque: 2.5 N·m | Rated current: 6 A/phase | Motor length: 85.8 mm
SM2564C60B11 Winding: Bipolar, connector | Shaft: Dual | Holding torque: 2.5 N·m | Rated current: 6 A/phase | Motor length: 85.8 mm
