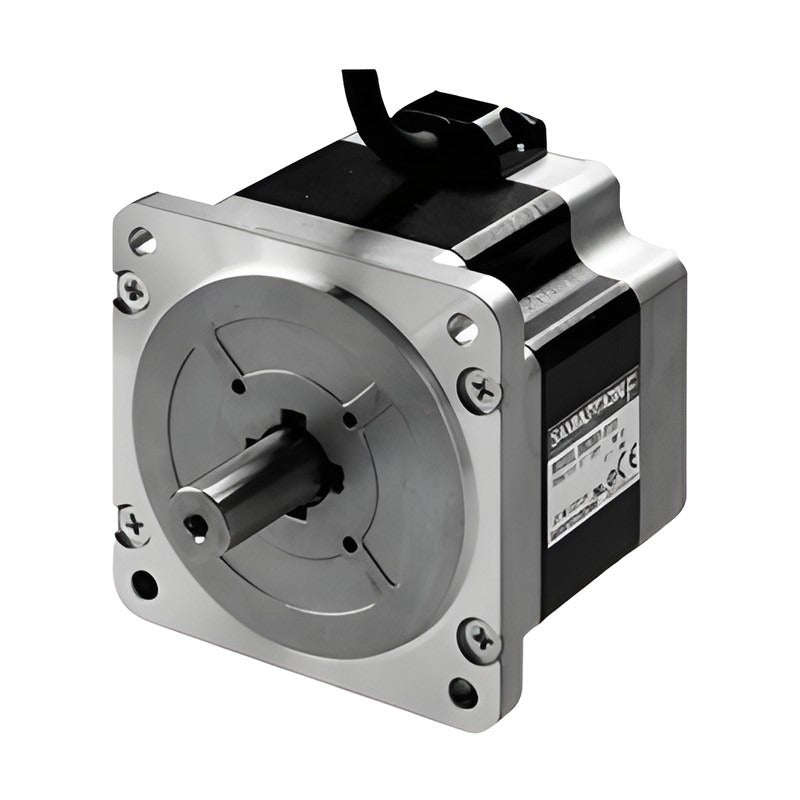

Sanyo Denki SANMOTION F2 SM286 Stepping Motor (86 mm sq., CE/UL)

Sanyo Denki SANMOTION F2 SM286 Stepping Motor (86 mm sq., CE/UL)

CE/UKCA/UL-certified 86 mm square 2-phase hybrid stepping motor with 1.8° full step angle, lead-wire or terminal-block type.

Key features

  • Holding torque 2.5 to 9 N·m
  • Unipolar lead, bipolar lead and bipolar terminal-block versions
  • CE, UKCA and UL marked; IP43 protection
  • Thermal class F (+155°C), continuous operation (S1)
  • Motor lengths 66 to 158.8 mm
  • Hollow shaft and custom shaft options on request

Specifications

Flange size 86 mm sq.
Full step angle 1.8°
Positional accuracy ±0.09°
Protection rating IP43
Thermal class F (+155°C)
Operating temperature -10 to +40°C
Source Sanyo Denki SANMOTION F2 2-Phase Stepping Systems catalogue Ver.10.2, p. 70-73
SM2861-0451 Winding: Unipolar, lead | Shaft: Single | Holding torque: 2.5 N·m | Rated current: 2 A/phase | Motor length: 66 mm
SM2861-0421 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 2.5 N·m | Rated current: 2 A/phase | Motor length: 66 mm
SM2861-0951 Winding: Unipolar, lead | Shaft: Single | Holding torque: 2.5 N·m | Rated current: 4 A/phase | Motor length: 66 mm
SM2861-0921 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 2.5 N·m | Rated current: 4 A/phase | Motor length: 66 mm
SM2862-0451 Winding: Unipolar, lead | Shaft: Single | Holding torque: 4.7 N·m | Rated current: 2 A/phase | Motor length: 96.5 mm
SM2862-0421 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 4.7 N·m | Rated current: 2 A/phase | Motor length: 96.5 mm
SM2862-0951 Winding: Unipolar, lead | Shaft: Single | Holding torque: 4.7 N·m | Rated current: 4 A/phase | Motor length: 96.5 mm
SM2862-0921 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 4.7 N·m | Rated current: 4 A/phase | Motor length: 96.5 mm
SM2863-0451 Winding: Unipolar, lead | Shaft: Single | Holding torque: 6.7 N·m | Rated current: 2 A/phase | Motor length: 127 mm
SM2863-0421 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 6.7 N·m | Rated current: 2 A/phase | Motor length: 127 mm
SM2863-0951 Winding: Unipolar, lead | Shaft: Single | Holding torque: 6.7 N·m | Rated current: 4 A/phase | Motor length: 127 mm
SM2863-0921 Winding: Unipolar, lead | Shaft: Dual | Holding torque: 6.7 N·m | Rated current: 4 A/phase | Motor length: 127 mm
SM2861-5051 Winding: Bipolar, lead | Shaft: Single | Holding torque: 3.3 N·m | Rated current: 2 A/phase | Motor length: 66 mm
SM2861-5021 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 3.3 N·m | Rated current: 2 A/phase | Motor length: 66 mm
SM2861-5151 Winding: Bipolar, lead | Shaft: Single | Holding torque: 3.3 N·m | Rated current: 4 A/phase | Motor length: 66 mm
SM2861-5121 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 3.3 N·m | Rated current: 4 A/phase | Motor length: 66 mm
SM2861-5251 Winding: Bipolar, lead | Shaft: Single | Holding torque: 3.3 N·m | Rated current: 6 A/phase | Motor length: 66 mm
SM2861-5221 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 3.3 N·m | Rated current: 6 A/phase | Motor length: 66 mm
SM2862-5051 Winding: Bipolar, lead | Shaft: Single | Holding torque: 6.4 N·m | Rated current: 2 A/phase | Motor length: 96.5 mm
SM2862-5021 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 6.4 N·m | Rated current: 2 A/phase | Motor length: 96.5 mm
SM2862-5151 Winding: Bipolar, lead | Shaft: Single | Holding torque: 6.4 N·m | Rated current: 4 A/phase | Motor length: 96.5 mm
SM2862-5121 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 6.4 N·m | Rated current: 4 A/phase | Motor length: 96.5 mm
SM2862-5251 Winding: Bipolar, lead | Shaft: Single | Holding torque: 6.4 N·m | Rated current: 6 A/phase | Motor length: 96.5 mm
SM2862-5221 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 6.4 N·m | Rated current: 6 A/phase | Motor length: 96.5 mm
SM2863-5051 Winding: Bipolar, lead | Shaft: Single | Holding torque: 9 N·m | Rated current: 2 A/phase | Motor length: 127 mm
SM2863-5021 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 9 N·m | Rated current: 2 A/phase | Motor length: 127 mm
SM2863-5151 Winding: Bipolar, lead | Shaft: Single | Holding torque: 9 N·m | Rated current: 4 A/phase | Motor length: 127 mm
SM2863-5121 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 9 N·m | Rated current: 4 A/phase | Motor length: 127 mm
SM2863-5251 Winding: Bipolar, lead | Shaft: Single | Holding torque: 9 N·m | Rated current: 6 A/phase | Motor length: 127 mm
SM2863-5221 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 9 N·m | Rated current: 6 A/phase | Motor length: 127 mm
SM2861-5066 Winding: Bipolar, terminal block | Shaft: Single | Holding torque: 3.3 N·m | Rated current: 2 A/phase | Motor length: 97.9 mm
SM2861-5166 Winding: Bipolar, terminal block | Shaft: Single | Holding torque: 3.3 N·m | Rated current: 4 A/phase | Motor length: 97.9 mm
SM2861-5266 Winding: Bipolar, terminal block | Shaft: Single | Holding torque: 3.3 N·m | Rated current: 6 A/phase | Motor length: 97.9 mm
SM2862-5066 Winding: Bipolar, terminal block | Shaft: Single | Holding torque: 6.4 N·m | Rated current: 2 A/phase | Motor length: 128.4 mm
SM2862-5166 Winding: Bipolar, terminal block | Shaft: Single | Holding torque: 6.4 N·m | Rated current: 4 A/phase | Motor length: 128.4 mm
SM2862-5266 Winding: Bipolar, terminal block | Shaft: Single | Holding torque: 6.4 N·m | Rated current: 6 A/phase | Motor length: 128.4 mm
SM2863-5066 Winding: Bipolar, terminal block | Shaft: Single | Holding torque: 9 N·m | Rated current: 2 A/phase | Motor length: 158.8 mm
SM2863-5166 Winding: Bipolar, terminal block | Shaft: Single | Holding torque: 9 N·m | Rated current: 4 A/phase | Motor length: 158.8 mm
SM2863-5266 Winding: Bipolar, terminal block | Shaft: Single | Holding torque: 9 N·m | Rated current: 6 A/phase | Motor length: 158.8 mm
