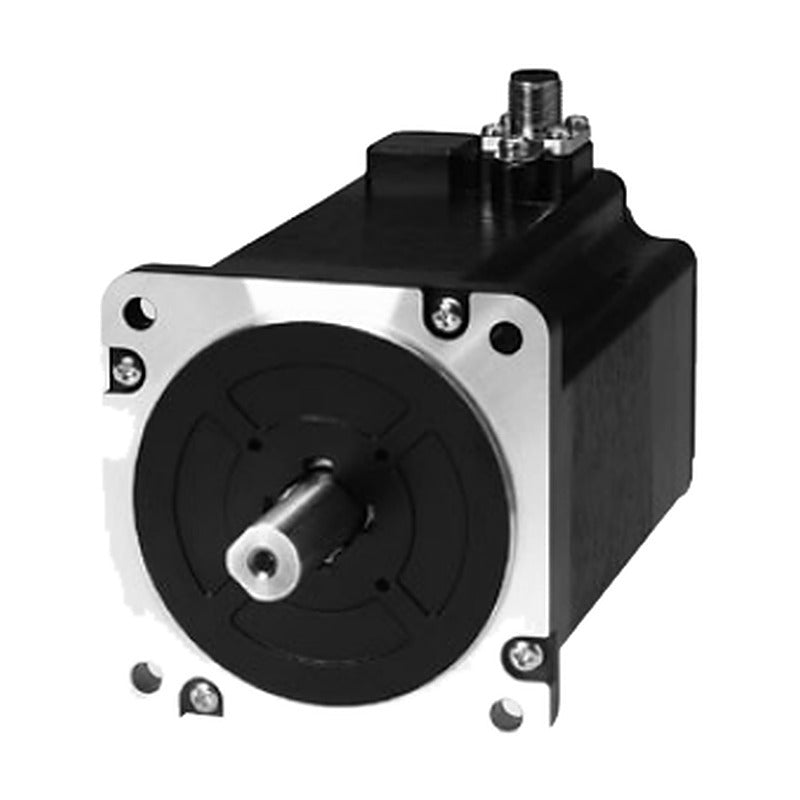

Sanyo Denki SANMOTION F2 SP286 IP65 Stepping Motor (86 mm sq.)

Sanyo Denki SANMOTION F2 SP286 IP65 Stepping Motor (86 mm sq.)

IP65-rated 86 mm square 2-phase stepping motor with 1.8° full step angle for water- and dust-exposed environments.

Key features

  • IP65 water and dust protection (except shaft and cable ends)
  • Holding torque 3.3 to 9 N·m
  • Bipolar winding, 2/4/6 A/phase
  • Cable type versions; connector type for 4 A/phase or lower
  • CE, UKCA and UL compliant
  • Custom shaft options on request

Specifications

Flange size 86 mm sq.
Full step angle 1.8°
Winding Bipolar
Protection rating IP65
Standards CE, UKCA, UL
Source Sanyo Denki SANMOTION F2 2-Phase Stepping Systems catalogue Ver.10.2, p. 79-80
SP2861-5060 Connection: Cable type | Holding torque: 3.3 N·m | Rated current: 2 A/phase | Mass: 1.95 kg
SP2861-5000 Connection: Connector type | Holding torque: 3.3 N·m | Rated current: 2 A/phase | Mass: 1.95 kg
SP2861-5160 Connection: Cable type | Holding torque: 3.3 N·m | Rated current: 4 A/phase | Mass: 1.95 kg
SP2861-5100 Connection: Connector type | Holding torque: 3.3 N·m | Rated current: 4 A/phase | Mass: 1.95 kg
SP2861-5260 Connection: Cable type | Holding torque: 3.3 N·m | Rated current: 6 A/phase | Mass: 1.95 kg
SP2862-5060 Connection: Cable type | Holding torque: 6.4 N·m | Rated current: 2 A/phase | Mass: 3.1 kg
SP2862-5000 Connection: Connector type | Holding torque: 6.4 N·m | Rated current: 2 A/phase | Mass: 3.1 kg
SP2862-5160 Connection: Cable type | Holding torque: 6.4 N·m | Rated current: 4 A/phase | Mass: 3.1 kg
SP2862-5100 Connection: Connector type | Holding torque: 6.4 N·m | Rated current: 4 A/phase | Mass: 3.1 kg
SP2862-5260 Connection: Cable type | Holding torque: 6.4 N·m | Rated current: 6 A/phase | Mass: 3.1 kg
SP2863-5060 Connection: Cable type | Holding torque: 9 N·m | Rated current: 2 A/phase | Mass: 4.2 kg
SP2863-5000 Connection: Connector type | Holding torque: 9 N·m | Rated current: 2 A/phase | Mass: 4.2 kg
SP2863-5160 Connection: Cable type | Holding torque: 9 N·m | Rated current: 4 A/phase | Mass: 4.2 kg
SP2863-5100 Connection: Connector type | Holding torque: 9 N·m | Rated current: 4 A/phase | Mass: 4.2 kg
SP2863-5260 Connection: Cable type | Holding torque: 9 N·m | Rated current: 6 A/phase | Mass: 4.2 kg
Stepping MotorsSanyo Denki
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION F2 SP286 IP65 Stepping Motor (86 mm sq.)

Brand Sanyo Denki·Stepping Motors

Available part numbers (15)

SP2861-5060, SP2861-5000, SP2861-5160, SP2861-5100, SP2861-5260, SP2862-5060, SP2862-5000, SP2862-5160, SP2862-5100, SP2862-5260 + 5 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SP2861-5060Connection: Cable type | Holding torque: 3.3 N·m | Rated current: 2 A/phase | Mass: 1.95 kg
SP2861-5000Connection: Connector type | Holding torque: 3.3 N·m | Rated current: 2 A/phase | Mass: 1.95 kg
SP2861-5160Connection: Cable type | Holding torque: 3.3 N·m | Rated current: 4 A/phase | Mass: 1.95 kg
SP2861-5100Connection: Connector type | Holding torque: 3.3 N·m | Rated current: 4 A/phase | Mass: 1.95 kg
SP2861-5260Connection: Cable type | Holding torque: 3.3 N·m | Rated current: 6 A/phase | Mass: 1.95 kg
SP2862-5060Connection: Cable type | Holding torque: 6.4 N·m | Rated current: 2 A/phase | Mass: 3.1 kg
SP2862-5000Connection: Connector type | Holding torque: 6.4 N·m | Rated current: 2 A/phase | Mass: 3.1 kg
SP2862-5160Connection: Cable type | Holding torque: 6.4 N·m | Rated current: 4 A/phase | Mass: 3.1 kg
SP2862-5100Connection: Connector type | Holding torque: 6.4 N·m | Rated current: 4 A/phase | Mass: 3.1 kg
SP2862-5260Connection: Cable type | Holding torque: 6.4 N·m | Rated current: 6 A/phase | Mass: 3.1 kg
SP2863-5060Connection: Cable type | Holding torque: 9 N·m | Rated current: 2 A/phase | Mass: 4.2 kg
SP2863-5000Connection: Connector type | Holding torque: 9 N·m | Rated current: 2 A/phase | Mass: 4.2 kg
SP2863-5160Connection: Cable type | Holding torque: 9 N·m | Rated current: 4 A/phase | Mass: 4.2 kg
SP2863-5100Connection: Connector type | Holding torque: 9 N·m | Rated current: 4 A/phase | Mass: 4.2 kg
SP2863-5260Connection: Cable type | Holding torque: 9 N·m | Rated current: 6 A/phase | Mass: 4.2 kg
