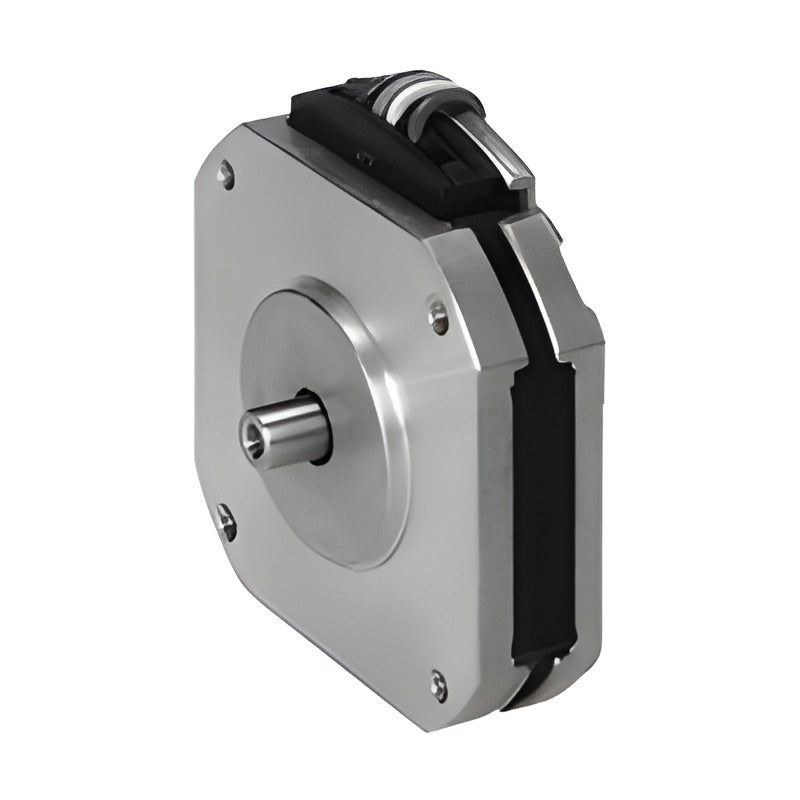

Sanyo Denki SANMOTION F2 SS242 Thin Stepping Motor (42 mm sq.)

Sanyo Denki SANMOTION F2 SS242 Thin Stepping Motor (42 mm sq.)

Thin-profile 42 mm square 2-phase stepping motor with 1.8° full step angle and bipolar lead-wire winding.

Key features

  • Motor length from 11.6 mm
  • Holding torque 0.083 to 0.186 N·m
  • Standard and heavy-duty (higher radial load) versions
  • Bipolar winding, 1 A/phase
  • Single and dual shaft versions
  • Hollow shaft, custom shaft and encoder options on request

Specifications

Rated current 1 A/phase
Flange size 42 mm sq.
Full step angle 1.8°
Positional accuracy ±0.09°
Thermal class B (+130°C)
Operating temperature -10 to +50°C
Source Sanyo Denki SANMOTION F2 2-Phase Stepping Systems catalogue Ver.10.2, p. 49
SS2421-5041 Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.083 N·m | Motor length: 11.6 mm
SS2421-5011 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.083 N·m | Motor length: 11.6 mm
SS2422-5041 Winding: Bipolar, lead | Shaft: Single | Holding torque: 0.186 N·m | Motor length: 18.6 mm
SS2422-5011 Winding: Bipolar, lead | Shaft: Dual | Holding torque: 0.186 N·m | Motor length: 18.6 mm
SS2421-50400 Winding: Bipolar, lead, heavy duty | Shaft: Single | Holding torque: 0.083 N·m | Motor length: 14.5 mm
SS2421-50100 Winding: Bipolar, lead, heavy duty | Shaft: Dual | Holding torque: 0.083 N·m | Motor length: 14.5 mm
SS2422-50400 Winding: Bipolar, lead, heavy duty | Shaft: Single | Holding torque: 0.186 N·m | Motor length: 21.5 mm
SS2422-50100 Winding: Bipolar, lead, heavy duty | Shaft: Dual | Holding torque: 0.186 N·m | Motor length: 21.5 mm
Stepping MotorsSanyo Denki
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION F2 SS242 Thin Stepping Motor (42 mm sq.)

Brand Sanyo Denki·Stepping Motors

Available part numbers (8)

SS2421-5041, SS2421-5011, SS2422-5041, SS2422-5011, SS2421-50400, SS2421-50100, SS2422-50400, SS2422-50100
