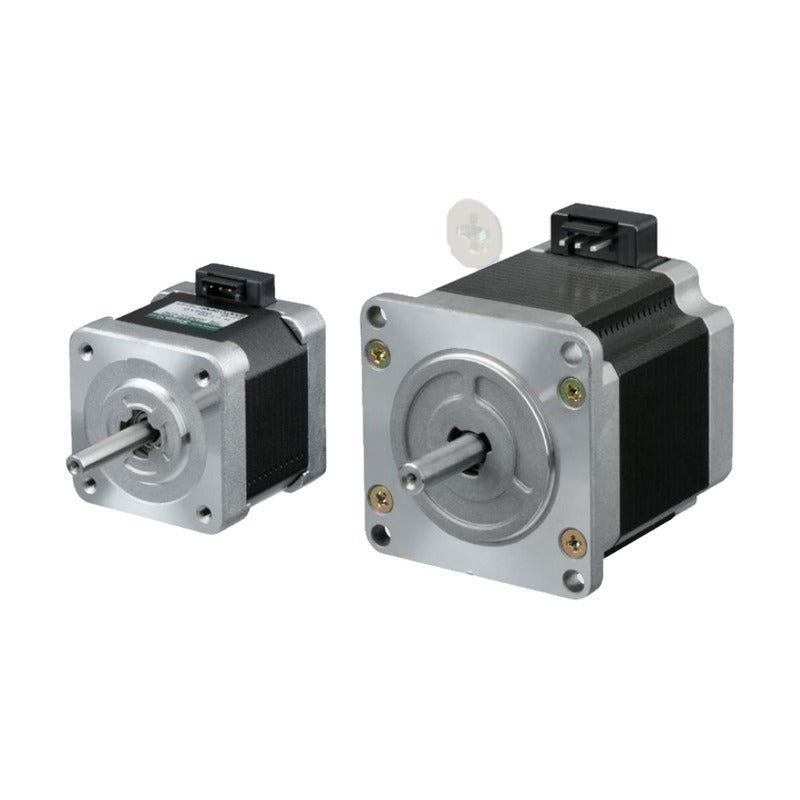

Sanyo Denki SANMOTION F3 3-Phase Stepping Motor 42-60 mm (1.2 deg)

Sanyo Denki SANMOTION F3 3-Phase Stepping Motor 42-60 mm (1.2 deg)

SANMOTION F3 3-phase stepping motors with 1.2 deg basic step angle in 42, 50, 56 and 60 mm sq. frames, connector type.

Key features

  • Basic step angle 1.2 deg, precise pulse-signal control
  • Rated current 3 A/phase for all sizes
  • Motor with connector; optional motor cables
  • Single-shaft (-0340) and double-shaft (-0310) versions
  • Insulation class B, protection IP40

Specifications

Phase 3-phase
Basic step angle 1.2 deg
Rated current 3 A/phase
Insulation class Class B (+130 C)
Protection IP40
Operating temperature -10 to +50 C
Source Sanyo Denki SANMOTION F3 3-Phase Stepping Systems S0833B013, p. 3-8
103H5332-0340 Size: 42 mm sq. | Length: 39 mm | Shaft: Single | Holding torque: 0.196 N·m min. | Resistance: 0.84 ohm/phase
103H5332-0310 Size: 42 mm sq. | Length: 39 mm | Shaft: Double | Holding torque: 0.196 N·m min. | Resistance: 0.84 ohm/phase
103H5333-0340 Size: 42 mm sq. | Length: 48 mm | Shaft: Single | Holding torque: 0.265 N·m min. | Resistance: 0.94 ohm/phase
103H5333-0310 Size: 42 mm sq. | Length: 48 mm | Shaft: Double | Holding torque: 0.265 N·m min. | Resistance: 0.94 ohm/phase
103H6332-0340 Size: 50 mm sq. | Length: 51.3 mm | Shaft: Single | Holding torque: 0.44 N·m min. | Resistance: 1.3 ohm/phase
103H6332-0310 Size: 50 mm sq. | Length: 51.3 mm | Shaft: Double | Holding torque: 0.44 N·m min. | Resistance: 1.3 ohm/phase
103H6333-0340 Size: 50 mm sq. | Length: 64.8 mm | Shaft: Single | Holding torque: 0.58 N·m min. | Resistance: 1.6 ohm/phase
103H6333-0310 Size: 50 mm sq. | Length: 64.8 mm | Shaft: Double | Holding torque: 0.58 N·m min. | Resistance: 1.6 ohm/phase
103H7332-0340 Size: 56 mm sq. | Length: 53.8 mm | Shaft: Single | Holding torque: 0.69 N·m min. | Resistance: 1.4 ohm/phase
103H7332-0310 Size: 56 mm sq. | Length: 53.8 mm | Shaft: Double | Holding torque: 0.69 N·m min. | Resistance: 1.4 ohm/phase
103H7333-0340 Size: 56 mm sq. | Length: 75.8 mm | Shaft: Single | Holding torque: 1.1 N·m min. | Resistance: 1.7 ohm/phase
103H7333-0310 Size: 56 mm sq. | Length: 75.8 mm | Shaft: Double | Holding torque: 1.1 N·m min. | Resistance: 1.7 ohm/phase
103H7832-0340 Size: 60 mm sq. | Length: 53.8 mm | Shaft: Single | Holding torque: 0.95 N·m min. | Resistance: 1.5 ohm/phase
103H7832-0310 Size: 60 mm sq. | Length: 53.8 mm | Shaft: Double | Holding torque: 0.95 N·m min. | Resistance: 1.5 ohm/phase
103H7833-0340 Size: 60 mm sq. | Length: 85.8 mm | Shaft: Single | Holding torque: 1.68 N·m min. | Resistance: 2 ohm/phase
103H7833-0310 Size: 60 mm sq. | Length: 85.8 mm | Shaft: Double | Holding torque: 1.68 N·m min. | Resistance: 2 ohm/phase
Stepping MotorsSanyo Denki
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION F3 3-Phase Stepping Motor 42-60 mm (1.2 deg)

Brand Sanyo Denki·Stepping Motors

Available part numbers (16)

103H5332-0340, 103H5332-0310, 103H5333-0340, 103H5333-0310, 103H6332-0340, 103H6332-0310, 103H6333-0340, 103H6333-0310, 103H7332-0340, 103H7332-0310 + 6 more — see full table ↓

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
103H5332-0340Size: 42 mm sq. | Length: 39 mm | Shaft: Single | Holding torque: 0.196 N·m min. | Resistance: 0.84 ohm/phase
103H5332-0310Size: 42 mm sq. | Length: 39 mm | Shaft: Double | Holding torque: 0.196 N·m min. | Resistance: 0.84 ohm/phase
103H5333-0340Size: 42 mm sq. | Length: 48 mm | Shaft: Single | Holding torque: 0.265 N·m min. | Resistance: 0.94 ohm/phase
103H5333-0310Size: 42 mm sq. | Length: 48 mm | Shaft: Double | Holding torque: 0.265 N·m min. | Resistance: 0.94 ohm/phase
103H6332-0340Size: 50 mm sq. | Length: 51.3 mm | Shaft: Single | Holding torque: 0.44 N·m min. | Resistance: 1.3 ohm/phase
103H6332-0310Size: 50 mm sq. | Length: 51.3 mm | Shaft: Double | Holding torque: 0.44 N·m min. | Resistance: 1.3 ohm/phase
103H6333-0340Size: 50 mm sq. | Length: 64.8 mm | Shaft: Single | Holding torque: 0.58 N·m min. | Resistance: 1.6 ohm/phase
103H6333-0310Size: 50 mm sq. | Length: 64.8 mm | Shaft: Double | Holding torque: 0.58 N·m min. | Resistance: 1.6 ohm/phase
103H7332-0340Size: 56 mm sq. | Length: 53.8 mm | Shaft: Single | Holding torque: 0.69 N·m min. | Resistance: 1.4 ohm/phase
103H7332-0310Size: 56 mm sq. | Length: 53.8 mm | Shaft: Double | Holding torque: 0.69 N·m min. | Resistance: 1.4 ohm/phase
103H7333-0340Size: 56 mm sq. | Length: 75.8 mm | Shaft: Single | Holding torque: 1.1 N·m min. | Resistance: 1.7 ohm/phase
103H7333-0310Size: 56 mm sq. | Length: 75.8 mm | Shaft: Double | Holding torque: 1.1 N·m min. | Resistance: 1.7 ohm/phase
103H7832-0340Size: 60 mm sq. | Length: 53.8 mm | Shaft: Single | Holding torque: 0.95 N·m min. | Resistance: 1.5 ohm/phase
103H7832-0310Size: 60 mm sq. | Length: 53.8 mm | Shaft: Double | Holding torque: 0.95 N·m min. | Resistance: 1.5 ohm/phase
103H7833-0340Size: 60 mm sq. | Length: 85.8 mm | Shaft: Single | Holding torque: 1.68 N·m min. | Resistance: 2 ohm/phase
103H7833-0310Size: 60 mm sq. | Length: 85.8 mm | Shaft: Double | Holding torque: 1.68 N·m min. | Resistance: 2 ohm/phase
