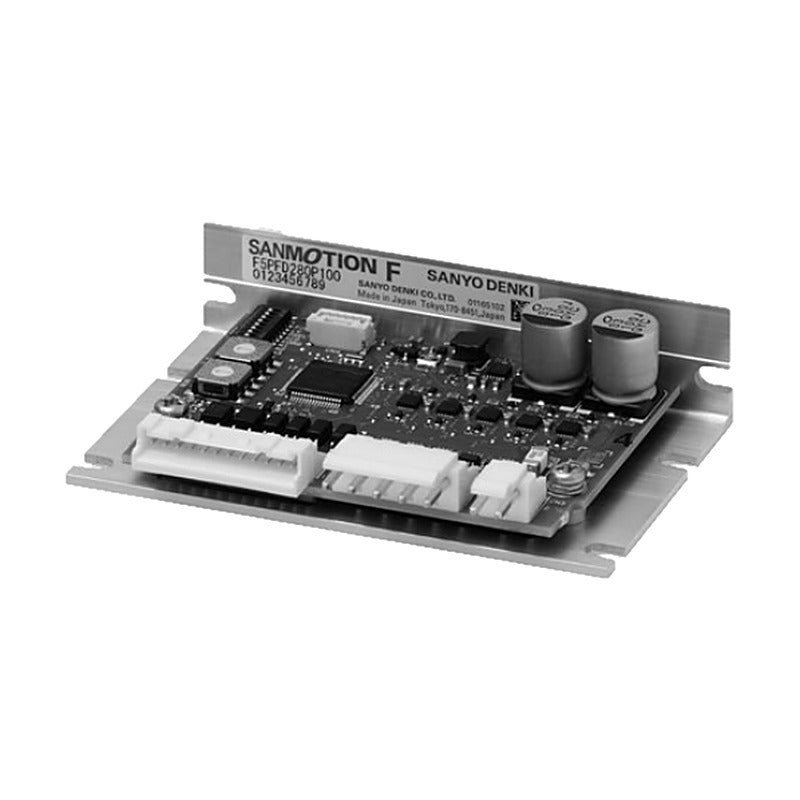

Sanyo Denki SANMOTION F5 5-Phase Stepping Driver (24 VDC, High-Power)

SANMOTION F5 high-power 24 VDC 5-phase stepping driver F5PFD280P100 for 2.8 A/phase 60 mm sq. motors.

Key features

High-output driver for high-torque motors and short cycle times
63% smaller volume and 73% lower mass than previous model
Microstepping: 5-phase 1 to 250, 2-phase 0.4 to 102.4
Setup software support via FFM-01U1 connection unit
UL 61800-5-1 (E179775), CE, UKCA and KC compliant

Specifications

Input voltage	24 VDC ±10%
Input current	5 A
Motor current	2.8 A/phase
Max. input frequency	400 kpulse/s
Operating temperature	0 to +50 C
Mass	0.06 kg
Compatible motor	SF5601/5602/5603-92x1 (60 mm sq.)
Source	Sanyo Denki SANMOTION F5 5-Phase Stepping Systems S0834B023, p. 50-51, 55-59

F5PFD280P100

Input: 24 VDC | Rated current: 2.8 A/phase | Interface: Pulse input | Type: High-power model

Stepping DriversSanyo Denki

1 product code available in this family
