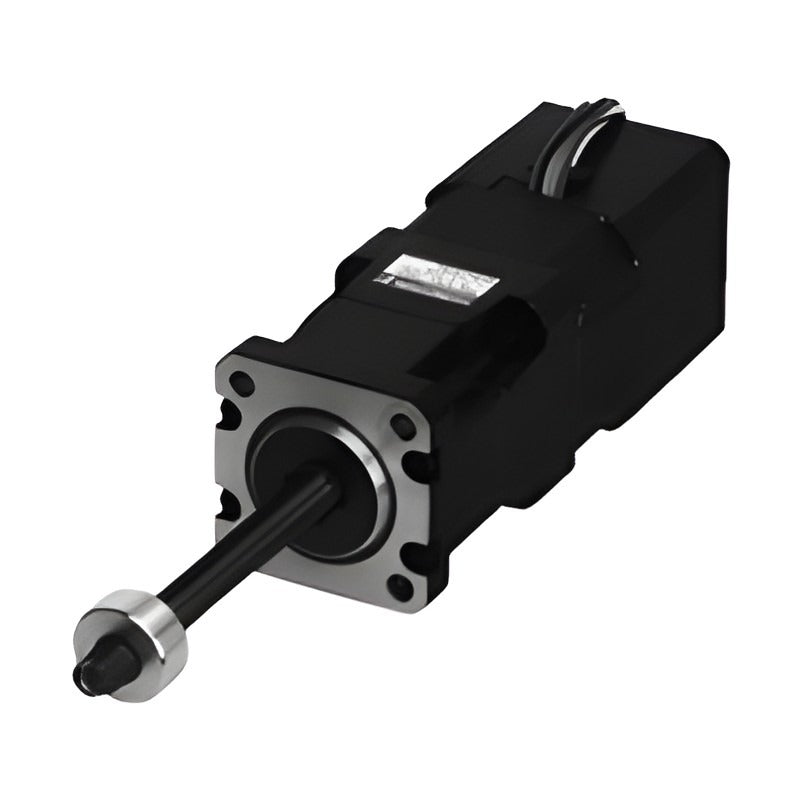

Sanyo Denki SANMOTION F5 Linear Actuator Stepping Motor (Ball Screw)

SANMOTION F5 linear actuator stepping motors integrating a 5-phase stepping motor and ball screw, 42 and 60 mm, with or without brake.

Key features

Stepping motor and ball screw integrated in one compact unit
Thrust 370 N (42 mm) / 450 N (60 mm)
Stroke 50 mm (42 mm) / 80 mm (60 mm)
Repeatability ±0.02 mm, lost motion 0.1 mm
Requires external linear guide with anti-rotation

Specifications

Phase	5-phase
Wiring	New pentagon configuration
Repeatability	±0.02 mm
Lost motion	0.1 mm
Driver	F5PED140P100
Source	Sanyo Denki SANMOTION F5 5-Phase Stepping Systems S0834B023, p. 72-73

SL5421-7241		Size: 42 mm \| Brake: Without \| Stroke: 50 mm \| Thrust: 370 N \| Speed: 48 mm/s \| Mass: 0.65 kg
SL5421-72XB41		Size: 42 mm \| Brake: With \| Stroke: 50 mm \| Thrust: 370 N \| Speed: 48 mm/s \| Mass: 0.8 kg
SL5601-8241		Size: 60 mm \| Brake: Without \| Stroke: 80 mm \| Thrust: 450 N \| Speed: 64 mm/s \| Mass: 1.4 kg
SL5601-82XB41		Size: 60 mm \| Brake: With \| Stroke: 80 mm \| Thrust: 450 N \| Speed: 64 mm/s \| Mass: 1.7 kg

Stepping MotorsSanyo Denki

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION F5 Linear Actuator Stepping Motor (Ball Screw)

Brand Sanyo Denki·Stepping Motors

Available part numbers (4)

SL5421-7241, SL5421-72XB41, SL5601-8241, SL5601-82XB41

How to order

Send the Sanyo Denki part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SL5421-7241	Size: 42 mm \| Brake: Without \| Stroke: 50 mm \| Thrust: 370 N \| Speed: 48 mm/s \| Mass: 0.65 kg
	SL5421-72XB41	Size: 42 mm \| Brake: With \| Stroke: 50 mm \| Thrust: 370 N \| Speed: 48 mm/s \| Mass: 0.8 kg
	SL5601-8241	Size: 60 mm \| Brake: Without \| Stroke: 80 mm \| Thrust: 450 N \| Speed: 64 mm/s \| Mass: 1.4 kg
	SL5601-82XB41	Size: 60 mm \| Brake: With \| Stroke: 80 mm \| Thrust: 450 N \| Speed: 64 mm/s \| Mass: 1.7 kg
