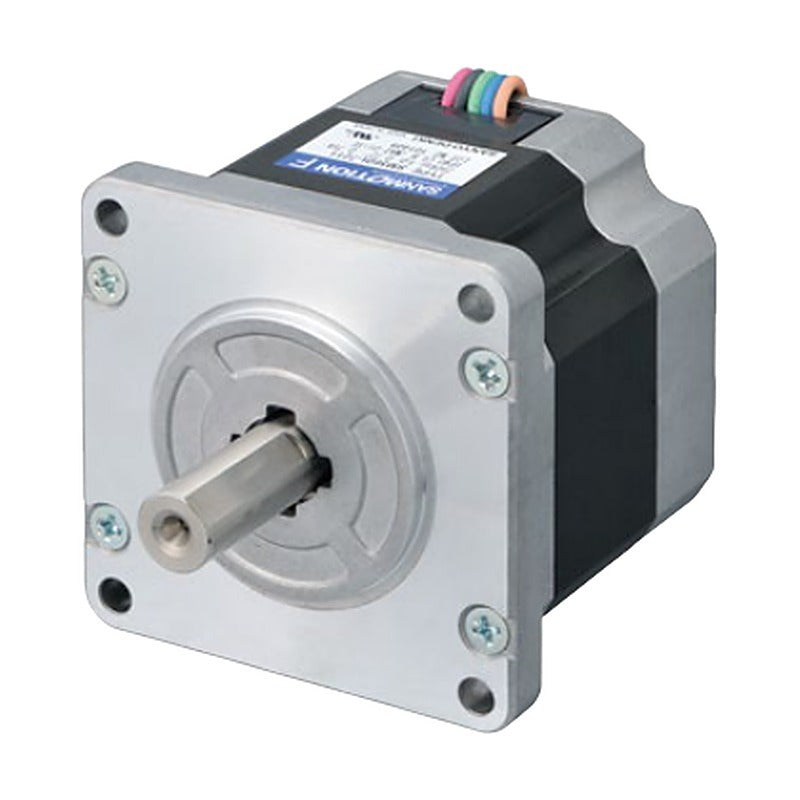

Sanyo Denki SANMOTION F5 5-Phase Stepping Motor (AC Input, Standard)

Sanyo Denki SANMOTION F5 5-Phase Stepping Motor (AC Input, Standard)

SANMOTION F5 standard 5-phase stepping motors in 42, 60 and 86 mm sq. frames, single or dual shaft, for the AC input F5PA drivers.

Key features

  • Full step angle 0.72 deg (5-phase), new pentagon wiring
  • Lead type with connectors for direct connection to AC input driver cables
  • Single-shaft (-xx40) and dual-shaft (-xx10) versions for every length
  • SM-prefixed motors conform to CE/EN, UKCA and UL as standard
  • Insulation class B, protection IP40

Specifications

Phase 5-phase
Full step angle 0.72 deg
Wiring New pentagon configuration
Connection Lead type with connectors
Protection IP40
Compatible driver F5PAA / F5PAB AC input
Source Sanyo Denki SANMOTION F5 5-Phase Stepping Systems S0834B023, p. 12-16, 26-27, 37, 42
SM5421-3240 Size: 42 mm sq. | Length: 35 mm | Shaft: Single | Holding torque: 0.13 N·m min. | Rated current: 0.35 A/phase | Driver: F5PAA035P100 / F5PAB035P100
SM5421-3210 Size: 42 mm sq. | Length: 35 mm | Shaft: Dual | Holding torque: 0.13 N·m min. | Rated current: 0.35 A/phase | Driver: F5PAA035P100 / F5PAB035P100
SM5422-3240 Size: 42 mm sq. | Length: 41 mm | Shaft: Single | Holding torque: 0.185 N·m min. | Rated current: 0.35 A/phase | Driver: F5PAA035P100 / F5PAB035P100
SM5422-3210 Size: 42 mm sq. | Length: 41 mm | Shaft: Dual | Holding torque: 0.185 N·m min. | Rated current: 0.35 A/phase | Driver: F5PAA035P100 / F5PAB035P100
SM5423-3240 Size: 42 mm sq. | Length: 49 mm | Shaft: Single | Holding torque: 0.245 N·m min. | Rated current: 0.35 A/phase | Driver: F5PAA035P100 / F5PAB035P100
SM5423-3210 Size: 42 mm sq. | Length: 49 mm | Shaft: Dual | Holding torque: 0.245 N·m min. | Rated current: 0.35 A/phase | Driver: F5PAA035P100 / F5PAB035P100
SM5601-7240 Size: 60 mm sq. | Length: 49 mm | Shaft: Single | Holding torque: 0.57 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5601-7210 Size: 60 mm sq. | Length: 49 mm | Shaft: Dual | Holding torque: 0.57 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5602-7240 Size: 60 mm sq. | Length: 60 mm | Shaft: Single | Holding torque: 0.9 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5602-7210 Size: 60 mm sq. | Length: 60 mm | Shaft: Dual | Holding torque: 0.9 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5603-7240 Size: 60 mm sq. | Length: 89 mm | Shaft: Single | Holding torque: 1.7 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5603-7210 Size: 60 mm sq. | Length: 89 mm | Shaft: Dual | Holding torque: 1.7 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5861-7240 Size: 86 mm sq. | Length: 66 mm | Shaft: Single | Holding torque: 2.3 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5861-7210 Size: 86 mm sq. | Length: 66 mm | Shaft: Dual | Holding torque: 2.3 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5862-7240 Size: 86 mm sq. | Length: 96.5 mm | Shaft: Single | Holding torque: 4.4 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5862-7210 Size: 86 mm sq. | Length: 96.5 mm | Shaft: Dual | Holding torque: 4.4 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5863-7240 Size: 86 mm sq. | Length: 127 mm | Shaft: Single | Holding torque: 6.8 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
SM5863-7210 Size: 86 mm sq. | Length: 127 mm | Shaft: Dual | Holding torque: 6.8 N·m min. | Rated current: 0.75 A/phase | Driver: F5PAA075P100 / F5PAB075P100
