Sanyo Denki SANMOTION F5 Stepping Motor 28-86 mm (24 VDC Basic)

Sanyo Denki SANMOTION F5 Stepping Motor 28-86 mm (24 VDC Basic)

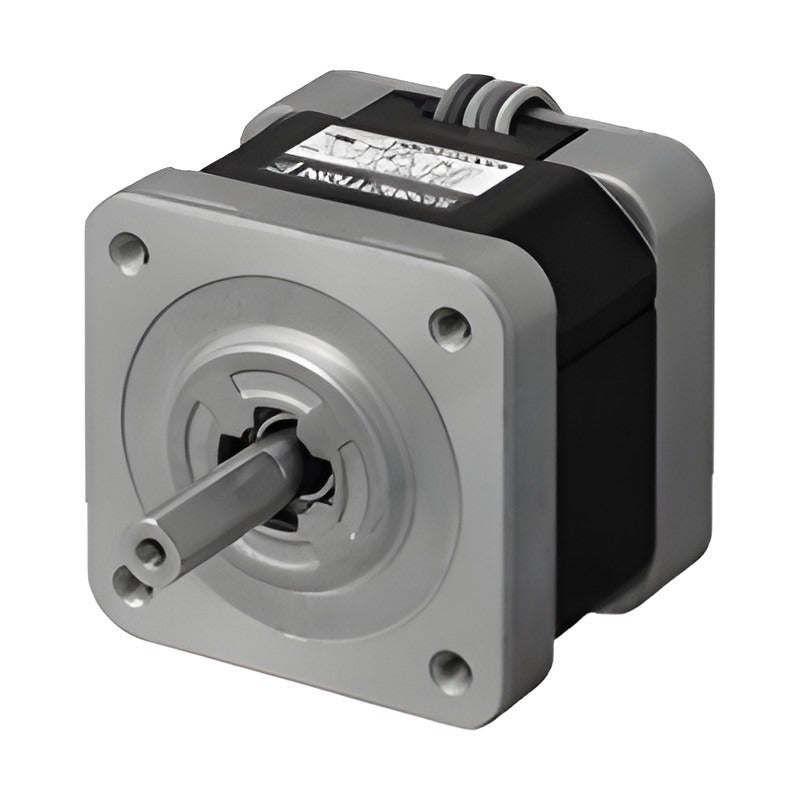

SANMOTION F5 5-phase stepping motors in 28, 42, 60 and 86 mm sq. frames for the F5PED140P100 basic 24 VDC driver.

Key features

  • Full step angle 0.72 deg, new pentagon wiring
  • Holding torque 0.041 to 4.4 N·m
  • Lead type without connectors
  • Single-shaft (-xx41) and dual-shaft (-xx11) versions
  • 28 mm sq. motors need relay wiring (20 to 26 AWG) to the driver

Specifications

Phase 5-phase
Full step angle 0.72 deg
Wiring New pentagon configuration
Connection Lead type
Driver F5PED140P100
Source Sanyo Denki SANMOTION F5 5-Phase Stepping Systems S0834B023, p. 61-65
SH5281-7241 Size: 28 mm sq. | Length: 32 mm | Shaft: Single | Holding torque: 0.041 N·m min. | Rated current: 0.75 A/phase
SH5281-7211 Size: 28 mm sq. | Length: 32 mm | Shaft: Dual | Holding torque: 0.041 N·m min. | Rated current: 0.75 A/phase
SH5285-7241 Size: 28 mm sq. | Length: 51.5 mm | Shaft: Single | Holding torque: 0.078 N·m min. | Rated current: 0.75 A/phase
SH5285-7211 Size: 28 mm sq. | Length: 51.5 mm | Shaft: Dual | Holding torque: 0.078 N·m min. | Rated current: 0.75 A/phase
SF5421-8241 Size: 42 mm sq. | Length: 35 mm | Shaft: Single | Holding torque: 0.125 N·m min. | Rated current: 1.4 A/phase
SF5421-8211 Size: 42 mm sq. | Length: 35 mm | Shaft: Dual | Holding torque: 0.125 N·m min. | Rated current: 1.4 A/phase
SF5422-8241 Size: 42 mm sq. | Length: 41 mm | Shaft: Single | Holding torque: 0.185 N·m min. | Rated current: 1.4 A/phase
SF5422-8211 Size: 42 mm sq. | Length: 41 mm | Shaft: Dual | Holding torque: 0.185 N·m min. | Rated current: 1.4 A/phase
SF5423-8241 Size: 42 mm sq. | Length: 49 mm | Shaft: Single | Holding torque: 0.245 N·m min. | Rated current: 1.4 A/phase
SF5423-8211 Size: 42 mm sq. | Length: 49 mm | Shaft: Dual | Holding torque: 0.245 N·m min. | Rated current: 1.4 A/phase
SM5601-8241 Size: 60 mm sq. | Length: 49 mm | Shaft: Single | Holding torque: 0.57 N·m min. | Rated current: 1.4 A/phase
SM5601-8211 Size: 60 mm sq. | Length: 49 mm | Shaft: Dual | Holding torque: 0.57 N·m min. | Rated current: 1.4 A/phase
SM5602-8241 Size: 60 mm sq. | Length: 60 mm | Shaft: Single | Holding torque: 0.9 N·m min. | Rated current: 1.4 A/phase
SM5602-8211 Size: 60 mm sq. | Length: 60 mm | Shaft: Dual | Holding torque: 0.9 N·m min. | Rated current: 1.4 A/phase
SM5603-8241 Size: 60 mm sq. | Length: 89 mm | Shaft: Single | Holding torque: 1.7 N·m min. | Rated current: 1.4 A/phase
SM5603-8211 Size: 60 mm sq. | Length: 89 mm | Shaft: Dual | Holding torque: 1.7 N·m min. | Rated current: 1.4 A/phase
SM5861-8241 Size: 86 mm sq. | Length: 66 mm | Shaft: Single | Holding torque: 2.3 N·m min. | Rated current: 1.4 A/phase
SM5861-8211 Size: 86 mm sq. | Length: 66 mm | Shaft: Dual | Holding torque: 2.3 N·m min. | Rated current: 1.4 A/phase
SM5862-8241 Size: 86 mm sq. | Length: 96.5 mm | Shaft: Single | Holding torque: 4.4 N·m min. | Rated current: 1.4 A/phase
SM5862-8211 Size: 86 mm sq. | Length: 96.5 mm | Shaft: Dual | Holding torque: 4.4 N·m min. | Rated current: 1.4 A/phase
Stepping MotorsSanyo Denki
20 product codes available in this family
