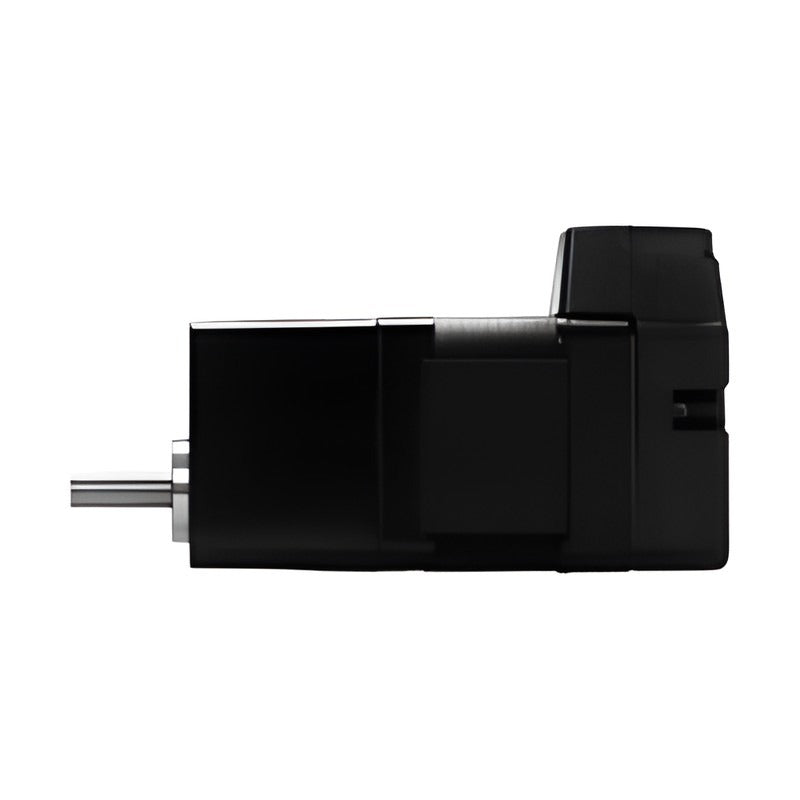

Sanyo Denki SANMOTION F5 Stepping Motor (EM Brake, AC Input)

Sanyo Denki SANMOTION F5 Stepping Motor (EM Brake, AC Input)

SANMOTION F5 5-phase stepping motors with a non-excitation electromagnetic brake that holds the load during power off, in 42, 60 and 86 mm sq.

Key features

  • Non-excitation type electromagnetic brake on motor end cap
  • Holds position in vertical axes and during power failure
  • Brake engagement 20 ms max.
  • Single-shaft design, lead type with connectors
  • Brake works only at standstill; not for dynamic braking

Specifications

Phase 5-phase
Shaft Single
Brake type Non-excitation type
Brake engagement time 20 ms max.
Rated current 42: 0.35 / 60, 86: 0.75 A/phase
Source Sanyo Denki SANMOTION F5 5-Phase Stepping Systems S0834B023, p. 12-13, 22-23, 33-34, 40
SM5421-32XB40 Size: 42 mm sq. | Length: 68 mm | Holding torque: 0.13 N·m min. | Brake torque: 0.3 N·m min. | Brake voltage: 24 V ±5% | Driver: F5PAA035P100 / F5PAB035P100
SM5422-32XB40 Size: 42 mm sq. | Length: 74.3 mm | Holding torque: 0.185 N·m min. | Brake torque: 0.3 N·m min. | Brake voltage: 24 V ±5% | Driver: F5PAA035P100 / F5PAB035P100
SM5423-32XB40 Size: 42 mm sq. | Length: 82 mm | Holding torque: 0.245 N·m min. | Brake torque: 0.3 N·m min. | Brake voltage: 24 V ±5% | Driver: F5PAA035P100 / F5PAB035P100
SM5601-72XB40 Size: 60 mm sq. | Length: 91.4 mm | Holding torque: 0.57 N·m min. | Brake torque: 0.8 N·m min. | Brake voltage: 24 V ±5% | Driver: F5PAA075P100 / F5PAB075P100
SM5602-72XB40 Size: 60 mm sq. | Length: 102.6 mm | Holding torque: 0.9 N·m min. | Brake torque: 0.8 N·m min. | Brake voltage: 24 V ±5% | Driver: F5PAA075P100 / F5PAB075P100
SM5603-72XB40 Size: 60 mm sq. | Length: 131.3 mm | Holding torque: 1.7 N·m min. | Brake torque: 0.8 N·m min. | Brake voltage: 24 V ±5% | Driver: F5PAA075P100 / F5PAB075P100
SM5861-72XB40 Size: 86 mm sq. | Length: 119.5 mm | Holding torque: 2.3 N·m min. | Brake torque: 5 N·m min. | Brake voltage: 24 V ±10% | Driver: F5PAA075P100 / F5PAB075P100
SM5862-72XB40 Size: 86 mm sq. | Length: 150 mm | Holding torque: 4.4 N·m min. | Brake torque: 5 N·m min. | Brake voltage: 24 V ±10% | Driver: F5PAA075P100 / F5PAB075P100
SM5863-72XB40 Size: 86 mm sq. | Length: 180.4 mm | Holding torque: 6.8 N·m min. | Brake torque: 5 N·m min. | Brake voltage: 24 V ±10% | Driver: F5PAA075P100 / F5PAB075P100
Stepping MotorsSanyo Denki
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Sanyo Denki SANMOTION F5 Stepping Motor (EM Brake, AC Input)

Brand Sanyo Denki·Stepping Motors

Available part numbers (9)

SM5421-32XB40, SM5422-32XB40, SM5423-32XB40, SM5601-72XB40, SM5602-72XB40, SM5603-72XB40, SM5861-72XB40, SM5862-72XB40, SM5863-72XB40
